10090770 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

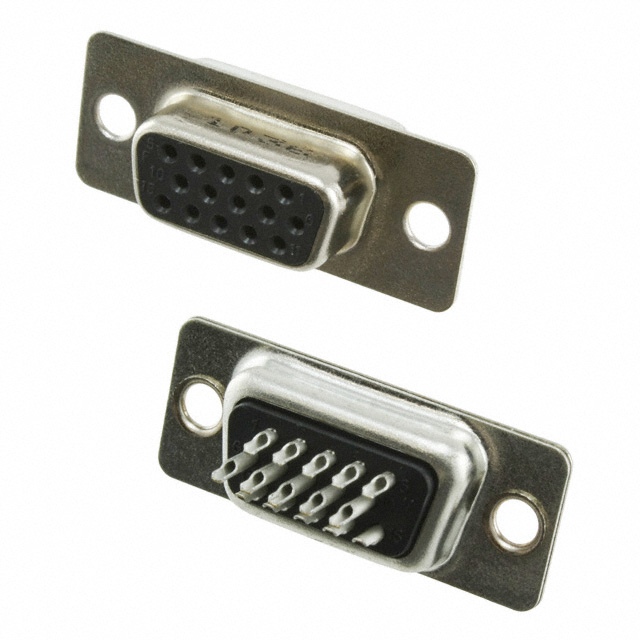

CONN D-SUB HD RCPT 15P SLDR CUP
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Wire Gauge [Min] | Wire Gauge [Max] | Contact Material | Dielectric Material | Color | Voltage Rating | Connector Type | Mounting Type | Contact Finish | Material Flammability Rating | Number of Positions | Contact Finish Thickness | Current Rating (Amps) | Flange Feature | Connector Style | Shell Material, Finish | Number of Rows [custom] | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Contact Type | Shell Size, Connector Layout | Shell Size, Connector Layout |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | -55 C | 105 ░C | 24 AWG | 28 AWG | Copper Alloy | Thermoplastic Glass Filled | Black | 250 V | Receptacle Female Sockets | Free Hanging (In-Line) | Gold | UL94 V-0 | 15 | Flash | 2.5 A | Housing/Shell (Unthreaded) | D-Sub High Density | Nickel Plated Steel | 3 | (DE E) High Density | 1 | Signal | ||
 Amphenol ICC (FCI) | -55 C | 105 ░C | 24 AWG | 28 AWG | Copper Alloy | Thermoplastic Glass Filled | Black | 250 V | Receptacle Female Sockets | Free Hanging (In-Line) | Gold | UL94 V-0 | 62 | Flash | 2.5 A | Housing/Shell (Unthreaded) | D-Sub High Density | Nickel Plated Steel | 3 | Signal | C DC | 4 |
