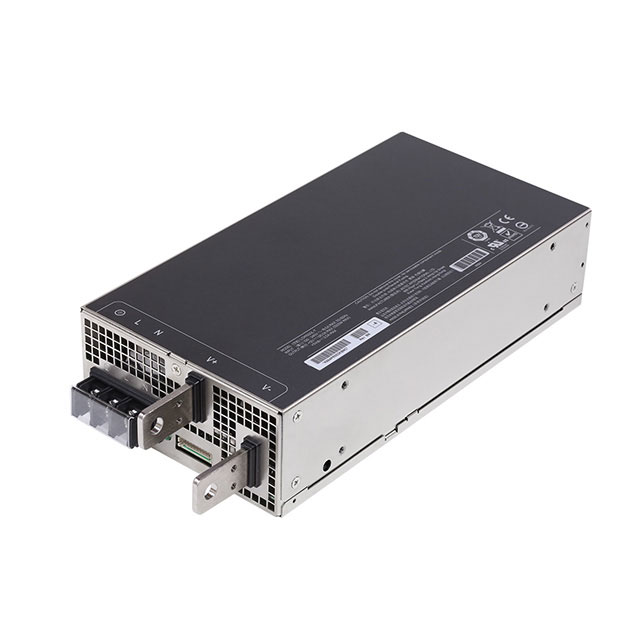

LCM1500 Series

Catalog

AC/DC CONVERTER 24V 1500W

Part	Features	Number of Outputs	Type	Applications	Mounting Type	Power (Watts)	Voltage - Input [Max]	Voltage - Input [Min]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Efficiency	Current - Output 1	Voltage - Output 1	Approval Agency	Voltage - Isolation	Voltage - Output 1 [custom]
ARTESYN / Advanced Energy LCM1500Q-T-1	Adjustable Output I2C Interface Load Sharing PFC Remote On/Off Remote Sense Universal Input	1	Front End	ITE (Commercial) Medical	Chassis Mount	1500 W	264 VAC	90 VAC	254 mm	5.2 "	10 in	132 mm	61.7 mm	2.43 "	91 %	67 A	24 V	BSMI CB CCC CE cURus TUV	4000 V

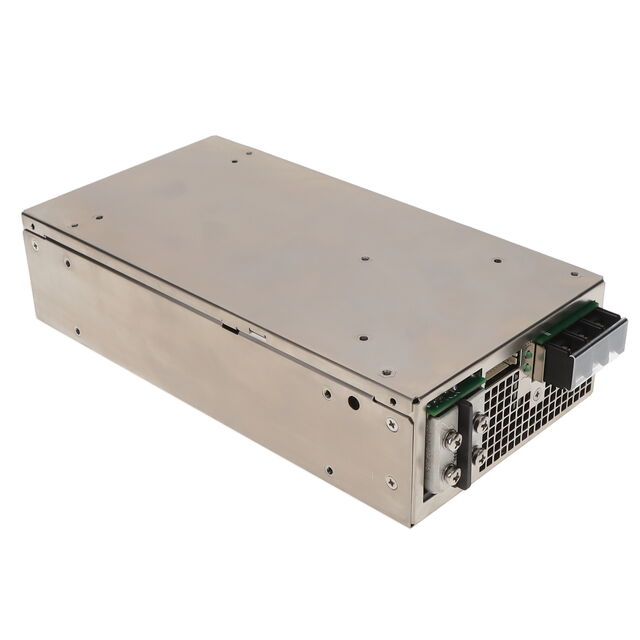

ARTESYN / Advanced Energy LCM1500R-T-4	Adjustable Output I2C Interface Load Sharing PFC PMBus™ Remote On/Off Remote Sense Standby Output Universal Input	1	Front End	ITE (Commercial) Medical	Chassis Mount	1500 W	264 VAC	90 VAC	254 mm	5.2 "	10 in	132 mm	61.7 mm	2.43 "	91 %	43 A	28 V	BSMI CB CCC CE cURus TUV	4000 V
ARTESYN / Advanced Energy LCM1500W-T	Adjustable Output I2C Interface Load Sharing PFC Remote On/Off Remote Sense Universal Input	1	Front End	ITE (Commercial) Medical	Chassis Mount	1500 W	264 VAC	90 VAC	254 mm	5.2 "	10 in	132 mm	61.7 mm	2.43 "	91 %	33 A	48 V	BSMI CB CCC CE cURus TUV	4000 V
ARTESYN / Advanced Energy LCM1500N-T-4	Adjustable Output I2C Interface Load Sharing PFC PMBus™ Remote On/Off Remote Sense Standby Output Universal Input	1	Front End	ITE (Commercial) Medical	Chassis Mount	1500 W	264 VAC	90 VAC	254 mm	5.2 "	10 in	132 mm	61.7 mm	2.43 "	91 %	100 A	15 V	BSMI CB CCC CE cURus TUV	4000 V

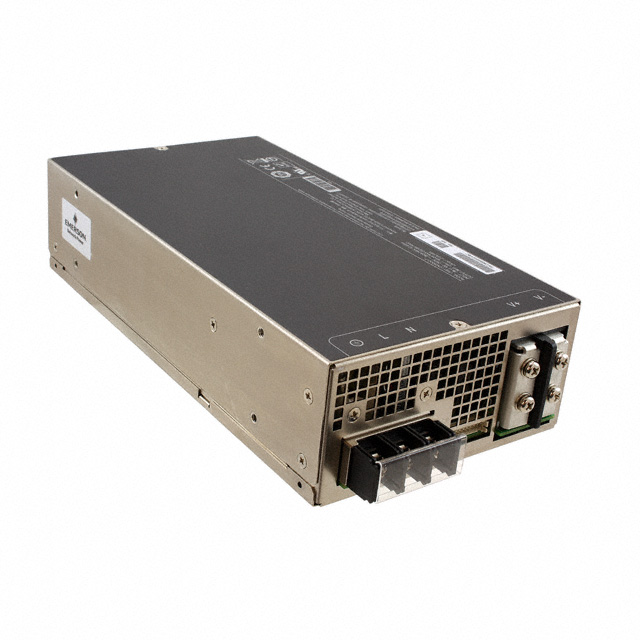

ARTESYN / Advanced Energy LCM1500Q-T-4	Adjustable Output I2C Interface Load Sharing PFC PMBus™ Remote On/Off Remote Sense Standby Output Universal Input	1	Front End	ITE (Commercial) Medical	Chassis Mount	1500 W	264 VAC	90 VAC	254 mm	5.2 "	10 in	132 mm	61.7 mm	2.43 "	91 %	67 A	24 V	BSMI CB CCC CE cURus TUV	4000 V

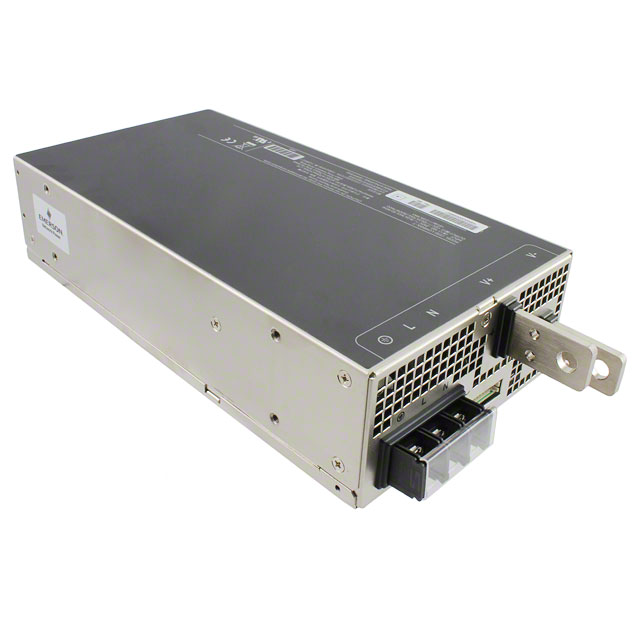

ARTESYN / Advanced Energy LCM1500L-T-4	Adjustable Output I2C Interface Load Sharing PFC PMBus™ Remote On/Off Remote Sense Standby Output Universal Input	1	Front End	ITE (Commercial) Medical	Chassis Mount	1500 W	264 VAC	90 VAC	254 mm	5.2 "	10 in	132 mm	61.7 mm	2.43 "	91 %	133 A	12 V	BSMI CB CCC CE cURus TUV	4000 V

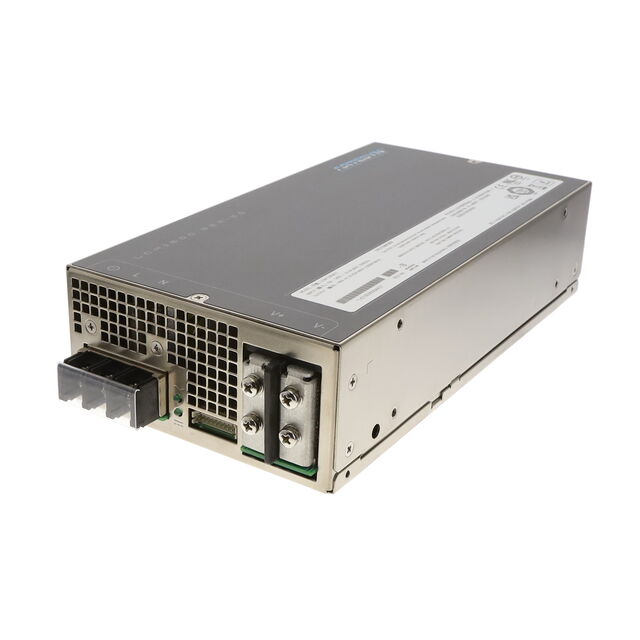

ARTESYN / Advanced Energy LCM1500W-T-B	Adjustable Output I2C Interface Load Sharing PFC Remote On/Off Remote Sense Universal Input	1	Front End	ITE (Commercial) Medical	Chassis Mount	1500 W	264 VAC	90 VAC	254 mm	5.2 "	10 in	132 mm	61.7 mm	2.43 "	91 %	33 A	48 V	BSMI CB CCC CE cURus TUV	4000 V
ARTESYN / Advanced Energy LCM1500U-T	Adjustable Output I2C Interface Load Sharing PFC Remote On/Off Remote Sense Universal Input	1	Front End	ITE (Commercial) Medical	Chassis Mount	1500 W	264 VAC	90 VAC	254 mm	5.2 "	10 in	132 mm	61.7 mm	2.43 "	91 %	43 A		BSMI CB CCC CE cURus TUV	4000 V	36 V
ARTESYN / Advanced Energy LCM1500L-T	Adjustable Output I2C Interface Load Sharing PFC Remote On/Off Remote Sense Universal Input	1	Front End	ITE (Commercial) Medical	Chassis Mount	1500 W	264 VAC	90 VAC	254 mm	5.2 "	10 in	132 mm	61.7 mm	2.43 "	91 %	133 A	12 V	BSMI CB CCC CE cURus TUV	4000 V
ARTESYN / Advanced Energy LCM1500W-T-1	Adjustable Output I2C Interface Load Sharing PFC Remote On/Off Remote Sense Universal Input	1	Front End	ITE (Commercial) Medical	Chassis Mount	1500 W	264 VAC	90 VAC	254 mm	5.2 "	10 in	132 mm	61.7 mm	2.43 "	91 %	33 A	48 V	BSMI CB CCC CE cURus TUV	4000 V
