MB2085S Series

Catalog

SWITCH PUSHBUTTON DPDT 6A 125V

Part	Mechanical Life	Electrical Life	Panel Cutout Dimensions [diameter]	Termination Style	Current Rating (Amps)	Switch Function	Type	Voltage Rating - DC	Voltage Rating - AC	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Marking	Mounting Type	Features	Actuator Type	Circuit	Color - Actuator/Cap	Ingress Protection
NKK Switches MB2085SS1W03	100000 Cycles	25000 Steps	6.5 mm	PC Pin	3 A 6 A	On-On	Standard	30 V	125 V	85 °C	-30 ░C	No Marking	Panel Mount Rear	Epoxy Sealed Terminals	Plunger for Cap	DPDT

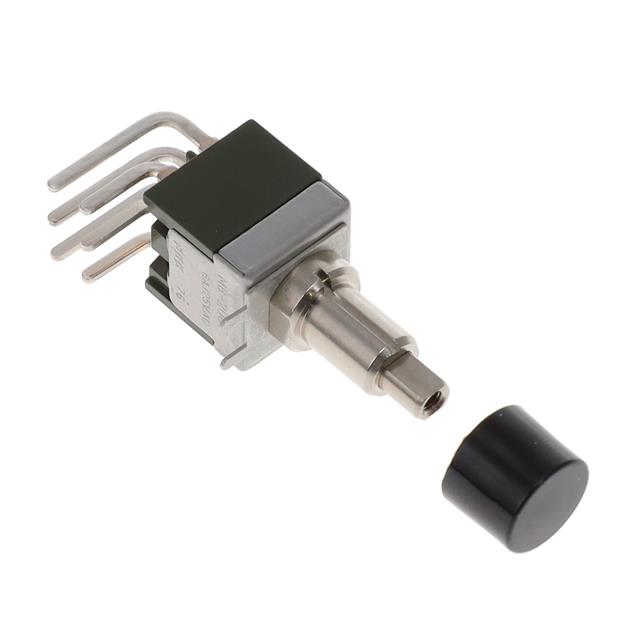

NKK Switches MB2085SS2W30-CA	100000 Cycles	25000 Steps		PC Pin	3 A 6 A	On-On	Standard	30 V	125 V	85 °C	-30 ░C	No Marking	Right Angle Through Hole	Epoxy Sealed Terminals	Button Round	DPDT	Black
NKK Switches MB2085SB1W01-DC	100000 Cycles	25000 Steps	12.5 mm	Solder Lug	3 A 6 A	On-On	Standard	30 V	125 V	85 °C	-30 ░C	No Marking	Panel Mount Rear	Epoxy Sealed Terminals	Button Round	DPDT	Red
NKK Switches MB2085SS1W03-CA	100000 Cycles	25000 Steps	6.5 mm	PC Pin	3 A 6 A	On-On	Standard	30 V	125 V	85 °C	-30 ░C	No Marking	Panel Mount Rear	Epoxy Sealed Terminals	Button Round	DPDT	Black
NKK Switches MB2085SB1W01-4A-A	100000 Cycles	25000 Steps	12.5 mm	Solder Lug	3 A 6 A	On-On	Standard	30 V	125 V	85 °C	-30 ░C		Panel Mount Rear		Button Round	DPDT	Black

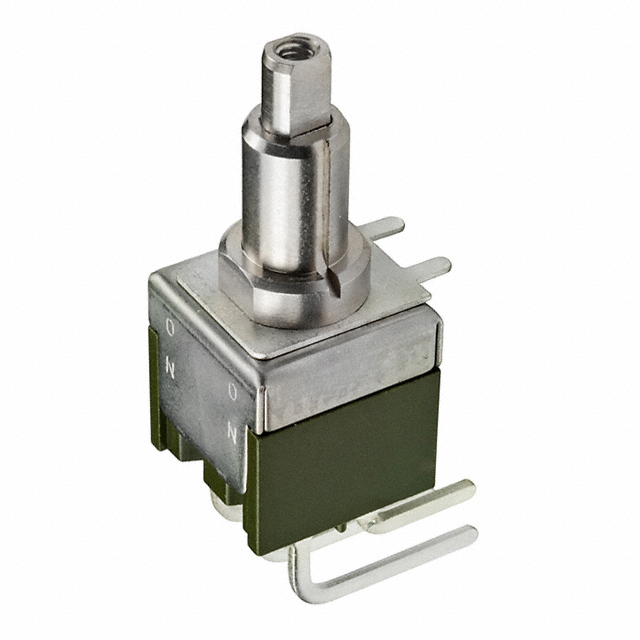

NKK Switches MB2085SS2W30	100000 Cycles	25000 Steps		PC Pin	3 A 6 A	On-On	Standard	30 V	125 V	85 °C	-30 ░C	No Marking	Right Angle Through Hole	Epoxy Sealed Terminals	Plunger for Cap	DPDT

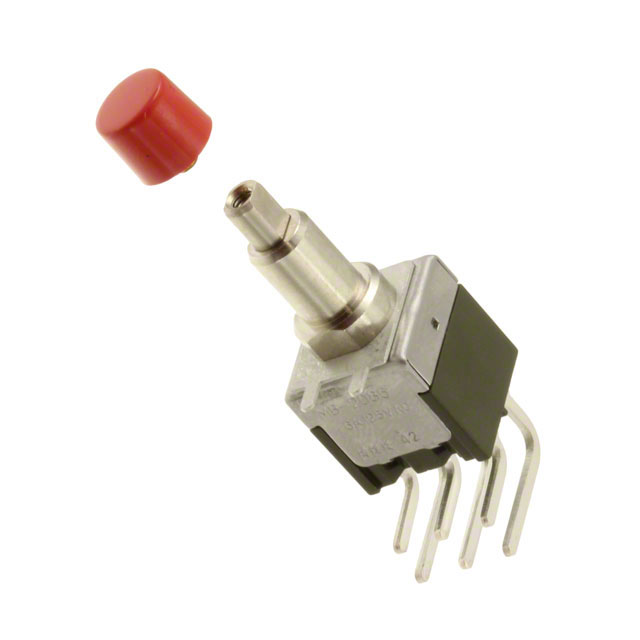

NKK Switches MB2085SS2W30-BC	100000 Cycles	25000 Steps		PC Pin	3 A 6 A	On-On	Standard	30 V	125 V	85 °C	-30 ░C	No Marking	Right Angle Through Hole	Epoxy Sealed Terminals	Button Round	DPDT	Red

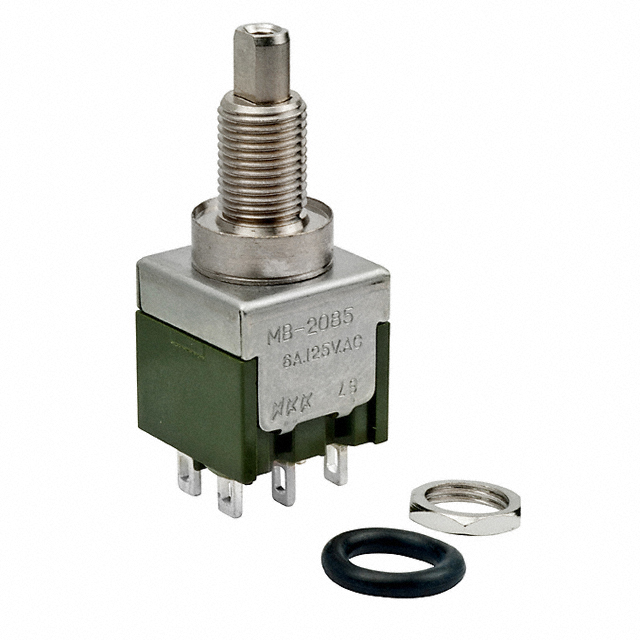

NKK Switches MB2085SD3W01	50000 Cycles	25000 Steps	6.5 mm	Solder Lug	3 A 6 A	On-On	Standard	30 V	125 V	85 °C	-30 ░C	No Marking	Panel Mount Rear	Epoxy Sealed Terminals	Plunger for Cap	DPDT		IP67 - Dust Tight Waterproof
NKK Switches MB2085SS1W03-CC	100000 Cycles	25000 Steps	6.5 mm	PC Pin	3 A 6 A	On-On	Standard	30 V	125 V	85 °C	-30 ░C	No Marking	Panel Mount Rear	Epoxy Sealed Terminals	Button Round	DPDT	Red
NKK Switches MB2085SS2W30-BG	100000 Cycles	25000 Steps	6.5 mm	PC Pin	3 A 6 A	On-Mom	Standard	30 V	125 V	85 °C	-30 ░C	No Marking	Right Angle Through Hole	Epoxy Sealed Terminals	Button Round	4PDT	Blue
