R20342 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

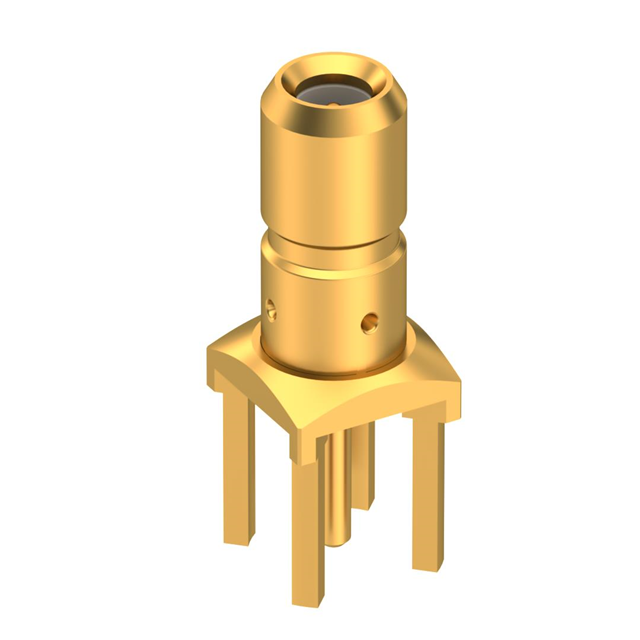

SSMB / STRAIGHT JACK RECEPTACLE
| Part | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Mating Cycles | Dielectric Material | Center Contact Plating | Body Finish | Voltage Rating | Contact Termination | Number of Ports | Connector Style | Frequency - Max [Max] | Impedance | Housing Color | Shield Termination | Fastening Type | Connector Type | Mounting Type | Center Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Brass | -65 ░C | 165 °C | 500 | Polytetrafluoroethylene (PTFE) | Gold | Gold | 175 VDC | Solder | 1 | SSMB | 4 GHz | 50 Ohms | Gold | Solder | Snap-On | Receptacle Female Socket | Panel Mount Through Hole | Beryllium Copper |
