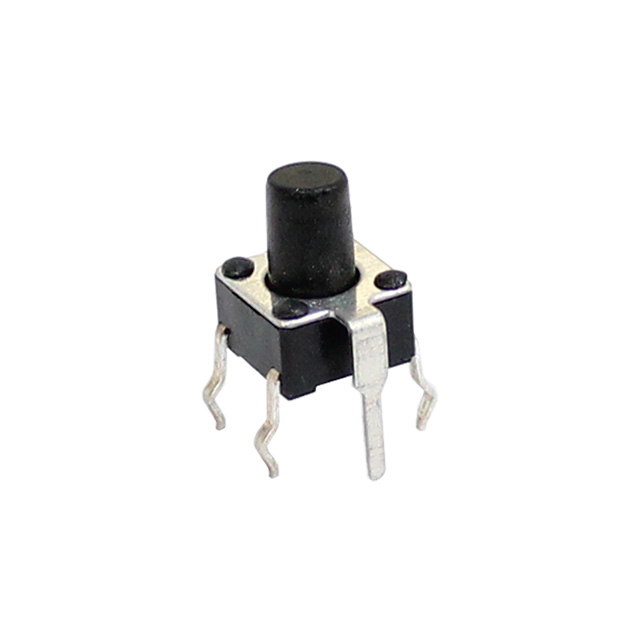

CT1102P8 Series
Manufacturer: CIT Relay and Switch
Beta
⌘K
SWITCH TACTILE SPST-NO 0.05A 50V
| Part | Switch Travel | Actuator Material | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Actuator Orientation | Switch Function | Contact Rating @ Voltage | Operating Force | Actuator Type | Actuator Height off PCB, Vertical | Termination Style | Outline [x] | Outline [y] | Illumination | Circuit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CIT Relay and Switch | 0.25 mm | Nylon 6/6 Polyamide (PA66) | 85 °C | -40 C | Through Hole | Top Actuated | Off-Mom | 0.05 A 50 VDC | 100 gf | Plunger for Cap | 8 mm | PC Pin | 6 mm | 6 mm | Non-Illuminated | SPST-NO |
CIT Relay and Switch | 0.25 mm | Nylon 6/6 Polyamide (PA66) | 85 °C | -40 C | Through Hole | Top Actuated | Off-Mom | 0.05 A 50 VDC | 160 gf | Plunger for Cap | 8 mm | PC Pin | 6 mm | 6 mm | Non-Illuminated | SPST-NO |
