A-WBH-S002EG Series
Manufacturer: Assmann WSW Components
Beta
⌘K

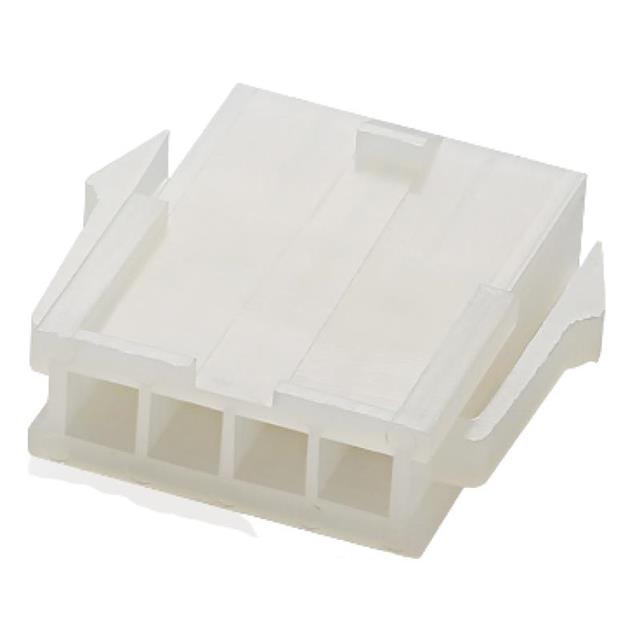

WIRE-TO-BOARD, HOUSING, 4.20MM,
| Part | Insulation Material | Number of Rows | Pitch | Pitch | Operating Temperature [Max] | Operating Temperature [Min] | Color | Contact Type | Mounting Type | Fastening Type | Contact Termination | Connector Type | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Assmann WSW Components | Nylon 6/6 Polyamide (PA66) | 1 | 0.165 in | 4.2 mm | 85 °C | -25 °C | Natural | Female Socket | Free Hanging (In-Line) | Latch Lock | Crimp | Plug | |
Assmann WSW Components | Nylon 6/6 Polyamide (PA66) | 1 | 0.165 in | 4.2 mm | 85 °C | -25 °C | Black | Female Socket | Free Hanging (In-Line) | Locking Ramp | Crimp | Plug | 4 |
Assmann WSW Components | Nylon 6/6 Polyamide (PA66) | 1 | 0.165 in | 4.2 mm | 85 °C | -25 °C | Natural | Female Socket | Free Hanging (In-Line) | Latch Lock | Crimp | Plug | 6 |
Assmann WSW Components | Nylon 6/6 Polyamide (PA66) | 1 | 0.165 in | 4.2 mm | 85 °C | -25 °C | Natural | Female Socket | Free Hanging (In-Line) | Latch Lock | Crimp | Plug | 5 |
Assmann WSW Components | Nylon 6/6 Polyamide (PA66) | 1 | 0.165 in | 4.2 mm | 85 °C | -25 °C | Natural | Female Socket | Free Hanging (In-Line) | Latch Lock | Crimp | Plug | 4 |
