AWP 30 Series

Catalog

CONN SOCKET 30POS IDC TIN

Part	Connector Type	Mounting Type	Wire Type	Pitch	Pitch	Row Spacing	Row Spacing	Features	Color	Number of Positions	Number of Rows [custom]	Contact Type	Contact Finish	Cable Termination	Contact Finish Thickness

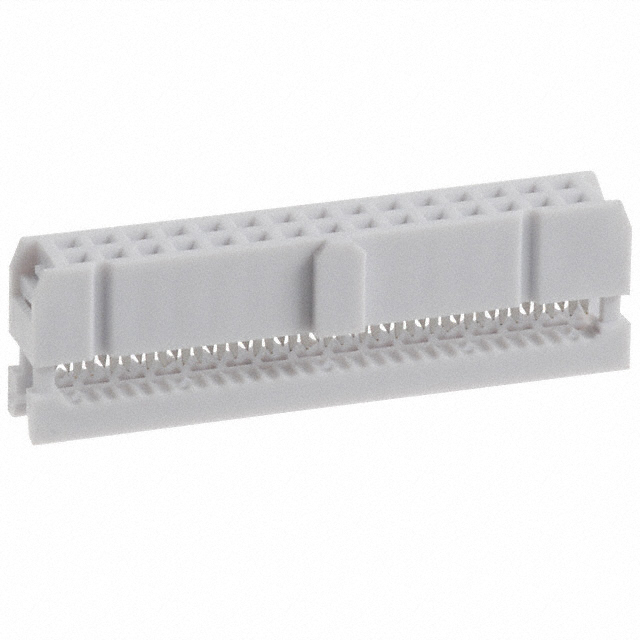

Assmann WSW Components AWP30-7540-T-R	Socket	Free Hanging (In-Line)	Ribbon Cable	0.1 "	2.54 mm	2.54 mm	0.1 "	Feed Through Polarizing Key	Gray	30	2	Female Socket	Tin	IDC

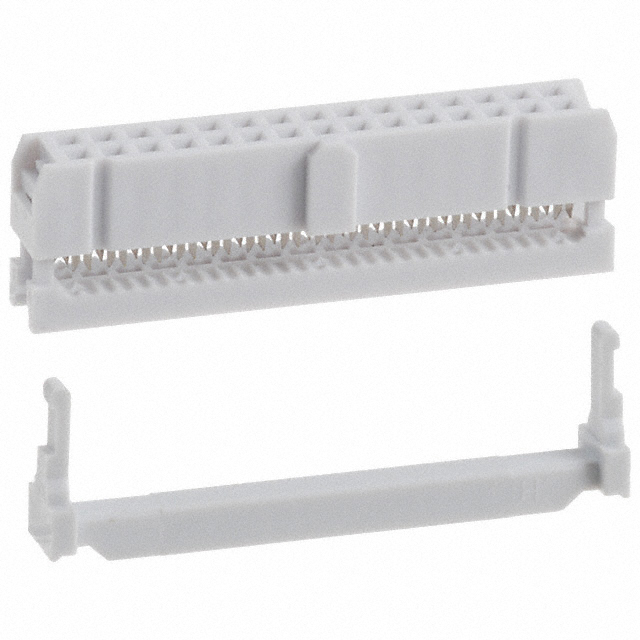

Assmann WSW Components AWP30-7241-T-R	Socket	Free Hanging (In-Line)	Ribbon Cable	0.1 "	2.54 mm	2.54 mm	0.1 "	Feed Through Polarizing Key Strain Relief	Gray	30	2	Female Socket	Gold	IDC	Flash

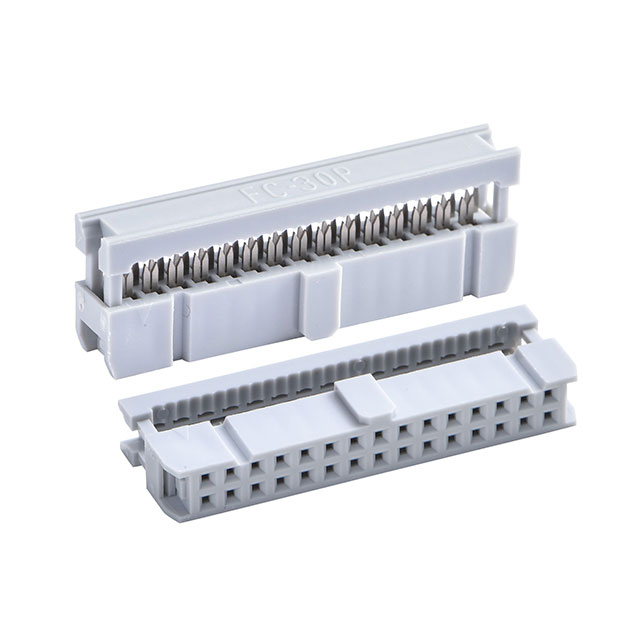

Assmann WSW Components AWP 30-7540-T	Socket	Free Hanging (In-Line)	Ribbon Cable	0.1 "	2.54 mm	2.54 mm	0.1 "	Feed Through Polarizing Key	Gray	30	2	Female Socket	Tin	IDC
Assmann WSW Components AWP30-7541-T-R	Socket	Free Hanging (In-Line)	Ribbon Cable	0.1 "	2.54 mm	2.54 mm	0.1 "	Feed Through Polarizing Key Strain Relief	Gray	30	2	Female Socket	Tin	IDC

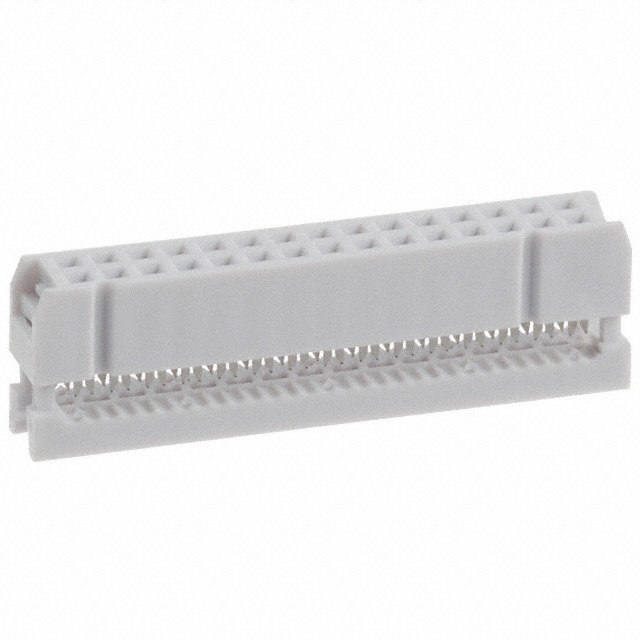

Assmann WSW Components AWP30-8540-T-R	Socket	Free Hanging (In-Line)	Ribbon Cable	0.1 "	2.54 mm	2.54 mm	0.1 "	Feed Through	Gray	30	2	Female Socket	Tin	IDC
