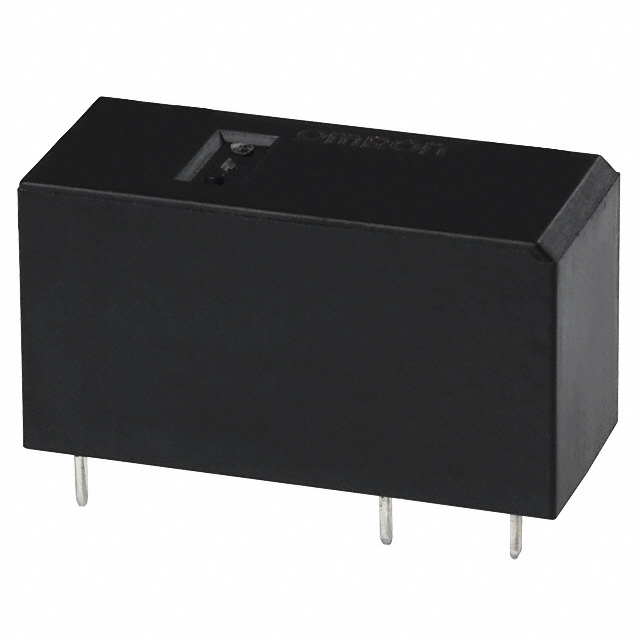

G2RL-14 Series

Manufacturer: Omron Electronics Inc-EMC Div

Catalog

RELAY GEN PURPOSE SPDT 12A 24V

Part	Approval Agency	Must Operate Voltage	Coil Current	Release Time	Operating Temperature [Max]	Operating Temperature [Min]	Contact Form	Mounting Type	Coil Resistance	Coil Insulation	Operate Time	Must Release Voltage	Load - Max Switching	Contact Material	Seal Rating	Relay Type	Termination Style	Contact Rating (Current)	Switching Voltage	Coil Type	Coil Voltage

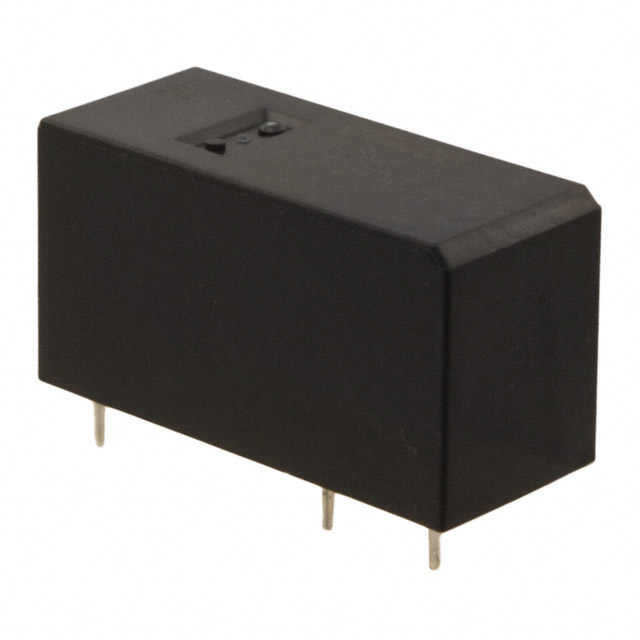

Omron Electronics Inc-EMC Div G2RL-14-CF DC24	CQC CSA UR VDE	16.8 VDC	16.7 mA	5 ms	85 °C	-40 °C	SPDT (1 Form C)	Through Hole	1440 Ohms	Class F	15 ms	2.4 VDC	3600 W 5280 VA	Cadmium Free Silver Alloy	Sealed - Fully	General Purpose	PC Pin	12 A	300 VDC 440 VAC	Non Latching	24 VDC
Omron Electronics Inc-EMC Div G2RL-14-E DC5	CQC CSA UR VDE	3.5 VDC	80 mA	5 ms	85 °C	-40 °C	SPDT (1 Form C)	Through Hole	62.5 Ohms	Class F	15 ms	0.5 VDC	4800 W 7040 VA	Cadmium Free Silver Alloy	Sealed - Fully	General Purpose	PC Pin	16 A	300 VDC 440 VAC	Non Latching	5 VDC
Omron Electronics Inc-EMC Div G2RL-14-E DC12	CQC CSA UR VDE	8.4 VDC	33.3 mA	5 ms	85 °C	-40 °C	SPDT (1 Form C)	Through Hole	360 Ohms	Class F	15 ms	1.2 VDC	4800 W 7040 VA	Cadmium Free Silver Alloy	Sealed - Fully	General Purpose	PC Pin	16 A	300 VDC 440 VAC	Non Latching	12 VDC
Omron Electronics Inc-EMC Div G2RL-14 DC5	CQC CSA UR VDE	3.5 VDC	80 mA	5 ms	85 °C	-40 °C	SPDT (1 Form C)	Through Hole	62.5 Ohms	Class F	15 ms	0.5 VDC	3600 W 5280 VA	Cadmium Free Silver Alloy	Sealed - Fully	General Purpose	PC Pin	12 A	300 VDC 440 VAC	Non Latching	5 VDC
Omron Electronics Inc-EMC Div G2RL-14-E-CF DC24	CQC CSA UR VDE	16.8 VDC	16.7 mA	5 ms	85 °C	-40 °C	SPDT (1 Form C)	Through Hole	1440 Ohms	Class F	15 ms	2.4 VDC	4800 W 7040 VA	Cadmium Free Silver Alloy	Sealed - Fully	General Purpose	PC Pin	16 A	300 VDC 440 VAC	Non Latching	24 VDC
Omron Electronics Inc-EMC Div G2RL-14-E DC24	CQC CSA UR VDE	16.8 VDC	16.7 mA	5 ms	85 °C	-40 °C	SPDT (1 Form C)	Through Hole	1440 Ohms	Class F	15 ms	2.4 VDC	4800 W 7040 VA	Cadmium Free Silver Alloy	Sealed - Fully	General Purpose	PC Pin	16 A	300 VDC 440 VAC	Non Latching	24 VDC
Omron Electronics Inc-EMC Div G2RL-14-E-CF DC48	CQC CSA UR VDE	33.6 VDC	9 mA	5 ms	85 °C	-40 °C	SPDT (1 Form C)	Through Hole	5.36 kOhms	Class F	15 ms	4.8 VDC	4800 W 7040 VA	Cadmium Free Silver Alloy	Sealed - Fully	General Purpose	PC Pin	16 A	300 VDC 440 VAC	Non Latching	48 VDC
