AFB0624 Series

Catalog

FAN AXIAL 60X25.4MM 24VDC WIRE

Part	Material - Blade	Voltage Range [Max]	Voltage Range [Min]	Lifetime @ Temp.	Current Rating (Amps)	Material - Frame	Air Flow	Air Flow	Weight	Weight	Termination	Size / Dimension [z]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	RPM	Bearing Type	Noise	Power (Watts)	Approval Agency	Width [y]	Voltage - Rated	Static Pressure	Static Pressure	Fan Type	Features	Static Pressure	Ingress Protection
Delta Electronics AFB0624M-A	Plastic	27.6 VDC	14	70000 Hrs	70 mA	Plastic	0.554 mł/min	19.8 CFM	0.176 lb	80 g	2 Wire Leads	60 mm	60 mm	70 °C	-10 °C	3600 RPM	Ball	31 dB(A)	1.68 W	CE CSA UL VDE	25.4 mm	24 VDC	38.6 Pa	0.155 in H2O	Tubeaxial
Delta Electronics AFB0624HHB-F00	Plastic	27.6 VDC	14	70000 Hrs	100 mA	Plastic	0.484 mł/min	17.3 CFM	0.098 lb	44.45 g	3 Wire Leads	60 mm	60 mm	70 °C	-10 °C	4500 RPM	Ball	35 dB	2.4 W	CE CSA UL VDE	15 mm	24 VDC	48.6 Pa	0.195 in H2O	Tubeaxial	Locked Rotor Protection Speed Sensor (Tach)

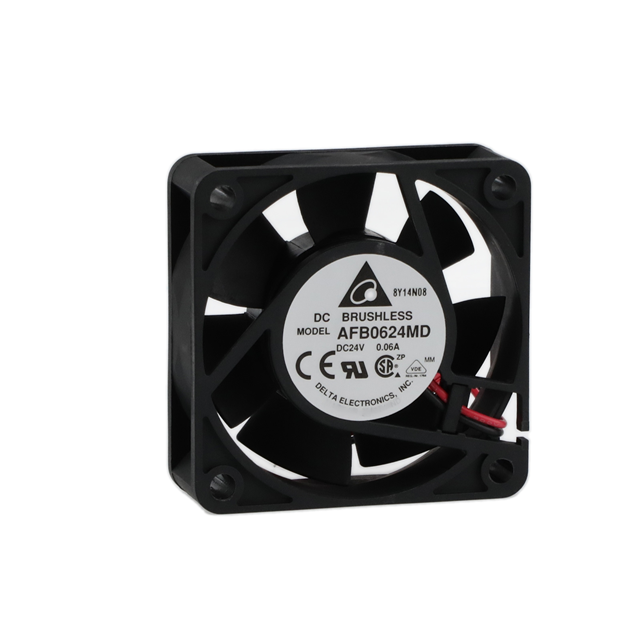

Delta Electronics AFB0624MD	Plastic	27.6 VDC	14		40 mA	Plastic	0.414 mł/min	14.8 CFM	0.137 lb	62.14 g	2 Wire Leads	60 mm	60 mm			3600 RPM	Ball	26 dB	960 mW	CE CSA UL VDE	20 mm	24 VDC			Tubeaxial
Delta Electronics AFB0624VHD-R00	Plastic	27.6 VDC	14	70000 Hrs	0.09 A	Plastic	0.554 mł/min	19.8 CFM	0.137 lb	62.14 g	3 Wire Leads	60 mm	60 mm	70 °C	-10 °C	4800 RPM	Ball	33 dB(A)	2.16 W	CE CSA UL VDE	20 mm	24 VDC	68.6 Pa	0.275 in H2O	Tubeaxial	Locked Rotor Sensor

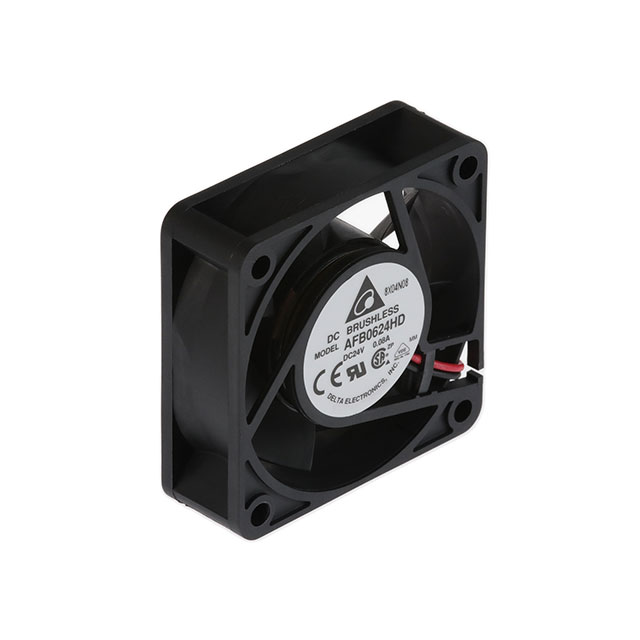

Delta Electronics AFB0624HD	Plastic	27.6 VDC	14	70000 Hrs	50 mA	Plastic	0.465 mł/min	16.6 CFM	0.137 lb	62.14 g	2 Wire Leads	60 mm	60 mm	70 °C	-10 °C	4000 RPM	Ball	28 dB	1.2 W	CE CSA UL VDE	20 mm	24 VDC	47.1 Pa	0.189 in H2O	Tubeaxial
Delta Electronics AFB0624HHB	Plastic	27.6 VDC	14	70000 Hrs	100 mA	Plastic	0.484 mł/min	17.3 CFM	0.098 lb	44.45 g	2 Wire Leads	60 mm	60 mm	70 °C	-10 °C	4500 RPM	Ball	35 dB	2.4 W	CE CSA UL VDE	15 mm	24 VDC	48.6 Pa	0.195 in H2O	Tubeaxial
Delta Electronics AFB0624LB	Plastic	27.6 VDC	14	70000 Hrs	40 mA	Plastic	0.325 mł/min	11.6 CFM	0.098 lb	44.45 g	2 Wire Leads	60 mm	60 mm	70 °C	-10 °C	3000 RPM	Ball	24 dB	960 mW	CE CSA UL VDE	15 mm	24 VDC	21.7 Pa	0.087 in H2O	Tubeaxial

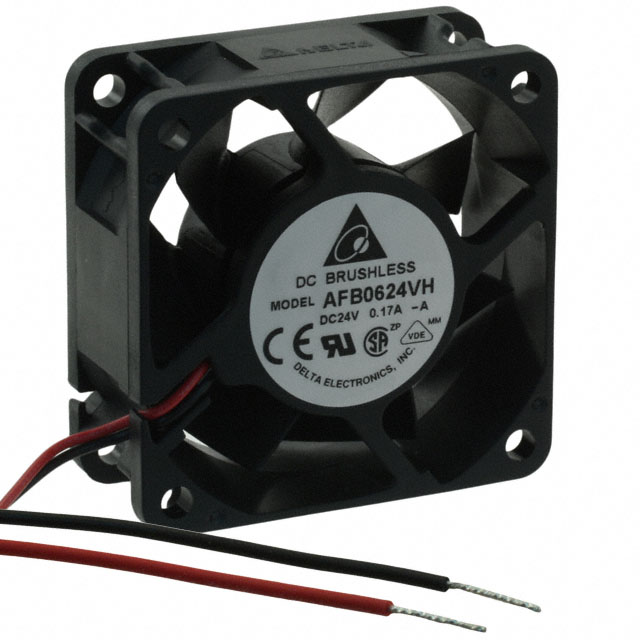

Delta Electronics AFB0624VH-A	Plastic	27.6 VDC	14	70000 Hrs	140 mA	Plastic	0.854 m³/min	30.5 CFM	0.176 lb	80 g	2 Wire Leads	60 mm	60 mm	70 °C	-10 °C	5500 RPM	Ball	42.5 dB	3.36 W	CE CSA UL VDE	25.4 mm	24 VDC	0.345 in H2O		Tubeaxial		85.9 Pa
Delta Electronics AFB0624EHDC9	Plastic	27.6 VDC	14	70000 Hrs	0.24 A	Plastic	1.08 m³/min	38.4 CFM	0.176 lb	80 g	3 Wire Leads	60 mm	60 mm	70 °C	-10 °C	6800 RPM	Ball	46.5 dB	5.76 W	CE CSA UL VDE	25.4 mm	24 VDC	135.5 Pa	0.544 in H2O	Tubeaxial	Locked Rotor Sensor		IP55 - Dust Protected Water Resistant

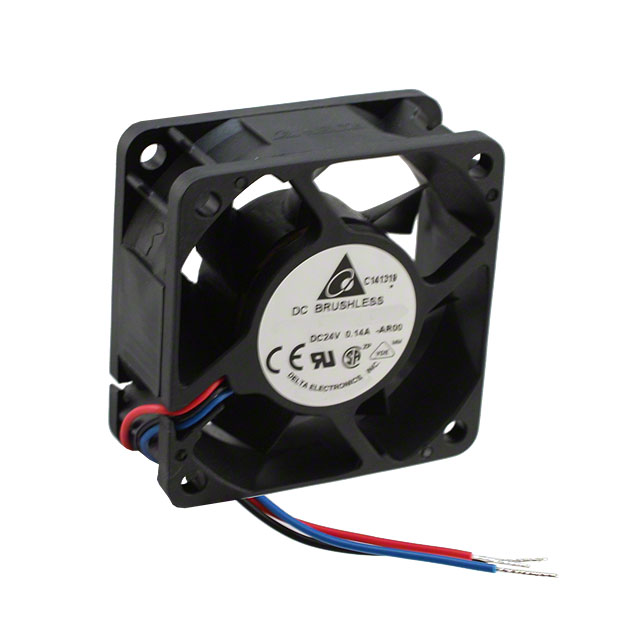

Delta Electronics AFB0624HH-AR00	Plastic	27.6 VDC	14	70000 Hrs	110 mA	Plastic	0.773 mł/min	27.6 CFM	0.176 lb	80 g	3 Wire Leads	60 mm	60 mm	70 °C	-10 °C	5000 RPM	Ball	40 dB(A)	2.64 W	CE CSA UL VDE	25.4 mm	24 VDC	73.2 Pa	0.294 in H2O	Tubeaxial	Locked Rotor Sensor
