TDA151 Series
Manufacturer: NXP USA Inc.
Beta
⌘K
IC AMP CLSS B MONO/STER 22W 9SIL
| Part | Package Name | Type | Maximum Output Power (per Channel) | Load Impedance | Channels | Mounting Type | Output Type | Package / Case | Voltage - Supply (Minimum) | Voltage - Supply (Maximum) | Operating Temperature (Max) | Operating Temperature (Min) | Features | Package Width | Package Features | Package Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NXP USA Inc. | 9-PSIL | Class B | 11 W 22 W | 2 Ohm 4 Ohm | 1 2 | Through Hole | 1-Channel (Mono) or 2-Channel (Stereo) | 9-SIP | 6 V | 17.5 V | 150 °C | -25 °C | Depop Mute Short-Circuit and Thermal Protection Standby | |||

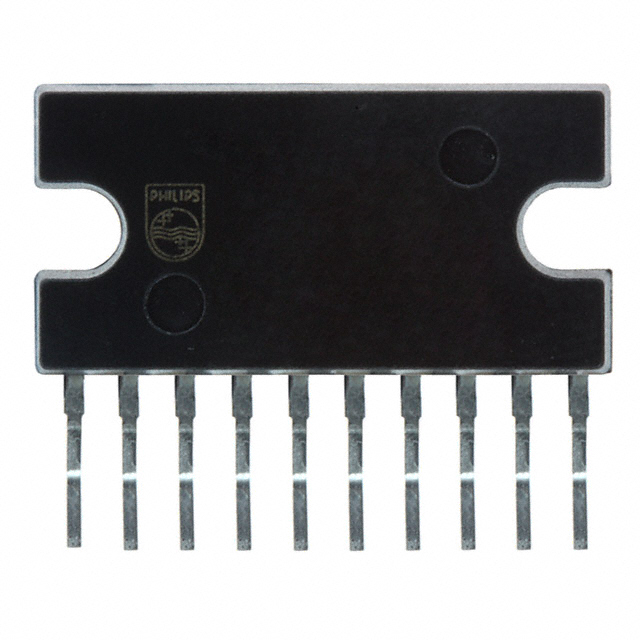

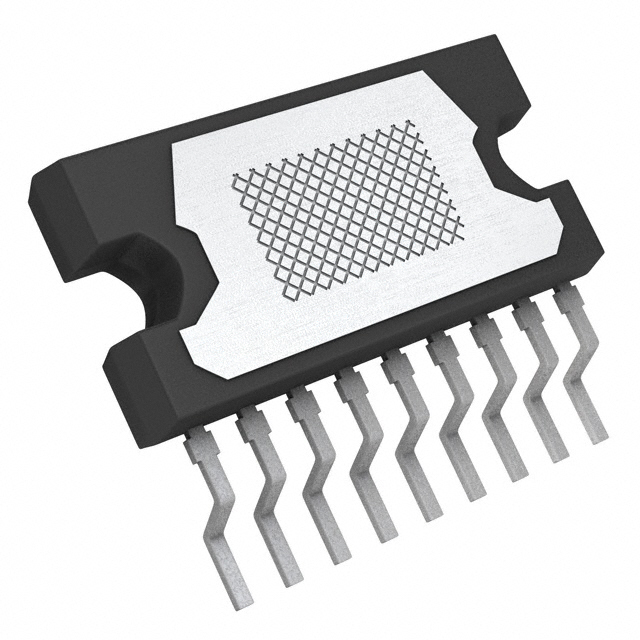

 NXP USA Inc. | 9-SMS | Class B | 11 W 22 W | 2 Ohm 4 Ohm | 1 2 | Through Hole | 1-Channel (Mono) or 2-Channel (Stereo) | SOT-354-1 | 6 V | 17.5 V | 150 °C | -25 °C | Depop Mute Short-Circuit and Thermal Protection Standby | |||
 NXP USA Inc. | 9-SMS | Class B | 11 W 22 W | 2 Ohm 4 Ohm | 1 2 | Through Hole | 1-Channel (Mono) or 2-Channel (Stereo) | SOT-354-1 | 6 V | 17.5 V | 150 °C | -25 °C | Depop Mute Short-Circuit and Thermal Protection Standby | |||
 NXP USA Inc. | 20-HTSSOP 20-TSSOP | Class B | 4 W 8 W | 4 Ohm 8 Ohm | 1 2 | Surface Mount | 1-Channel (Mono) or 2-Channel (Stereo) | 6 V | 18 V | 85 °C | -40 °C | Depop Mute Short-Circuit and Thermal Protection Standby | 4.4 mm | Exposed Pad | 0.173 in | |
 NXP USA Inc. | 9-SIL MPF | Class B | 6 W 12 W | 4 Ohm 8 Ohm | 1 2 | Through Hole | 1-Channel (Mono) or 2-Channel (Stereo) | 9-SIP Exposed Tab | 6 V | 18 V | Depop Mute Short-Circuit and Thermal Protection Standby | |||||
NXP USA Inc. | 9-SMS | Class B | 11 W 22 W | 2 Ohm 4 Ohm | 1 2 | Through Hole | 1-Channel (Mono) or 2-Channel (Stereo) | SOT-354-1 | 6 V | 17.5 V | 150 °C | -25 °C | Depop Mute Short-Circuit and Thermal Protection Standby | |||
 NXP USA Inc. | 20-HSOP 20-SOIC | Class B | 11 W 22 W | 2 Ohm 4 Ohm | 1 2 | Surface Mount | 1-Channel (Mono) or 2-Channel (Stereo) | 6 V | 17.5 V | 150 °C | -25 °C | Depop Mute Short-Circuit and Thermal Protection Standby | 11 mm | Exposed Pad | 0.433 in | |
NXP USA Inc. | 20-HTSSOP 20-TSSOP | Class B | 4 W 8 W | 4 Ohm 8 Ohm | 1 2 | Surface Mount | 1-Channel (Mono) or 2-Channel (Stereo) | 6 V | 18 V | 85 °C | -40 °C | Depop Mute Short-Circuit and Thermal Protection Standby | 4.4 mm | Exposed Pad | 0.173 in | |
NXP USA Inc. | 9-SIL MPF | Class B | 6 W | 4 Ohm | 2 | Through Hole | 2-Channel (Stereo) | 9-SIP Exposed Tab | 6 V | 18 V | 85 °C | -40 °C | Depop Mute Short-Circuit and Thermal Protection Standby | |||
NXP USA Inc. | 20-HSOP 20-SOIC | Class B | 11 W 22 W | 2 Ohm 4 Ohm | 1 2 | Surface Mount | 1-Channel (Mono) or 2-Channel (Stereo) | 6 V | 17.5 V | 150 °C | -25 °C | Depop Mute Short-Circuit and Thermal Protection Standby | 11 mm | Exposed Pad | 0.433 in |
