ML100 Series

Manufacturer: PULS, LP

Catalog

AC/DC DIN RAIL SUPPLY 12V 90W

Part	Approval Agency	Input Type	Power (Watts)	Standard Number	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1	Number of Outputs	Features	Efficiency	AC Voltage - Input [Max]	AC Voltage - Input [Min]	Current - Output (Max) [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Applications

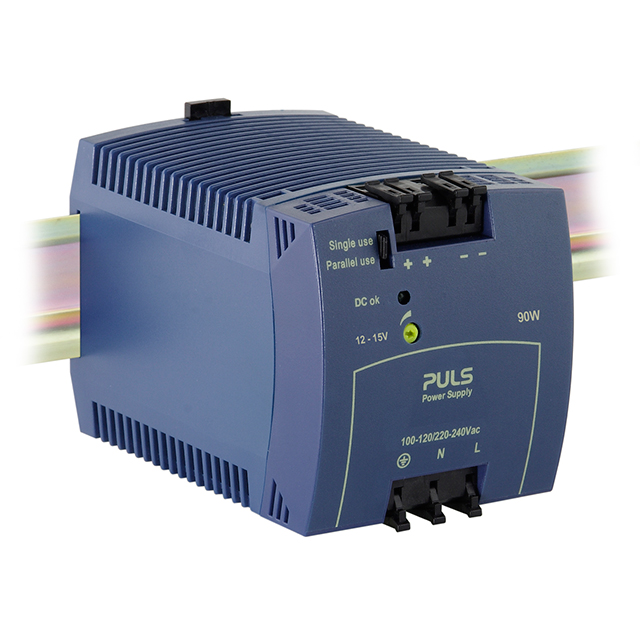

PULS, LP ML100.102	ABS CSA DNV GL EAC IEC UL	AC	90 W	508 60950-1 61010-2-201 Class I Div 2	70 °C	0 °C	12 V	1	Adjustable Output Load Sharing	88.5 %	132 VAC 264 VAC	85 VAC 184 VAC	7.5 A	73 mm	103 mm	4.06 in	2.95 in	75 mm	2.87 "	ITE (Commercial)

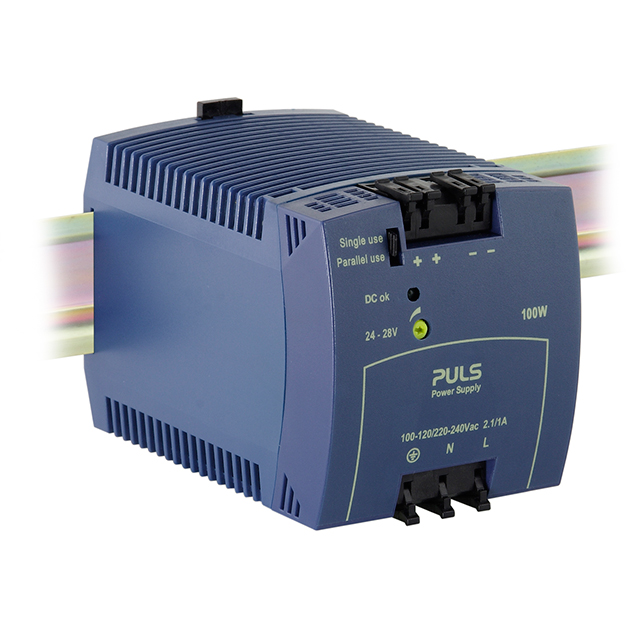

PULS, LP ML100.100	ABS CSA DNV GL EAC IEC UL	AC	100 W	508 60950-1 61010-2-201 Class I Div 2	70 °C	0 °C	24 V	1	Adjustable Output Load Sharing	90 %	132 VAC 264 VAC	85 VAC 184 VAC	4.2 A	73 mm	103 mm	4.06 in	2.95 in	75 mm	2.87 "	ITE (Commercial)

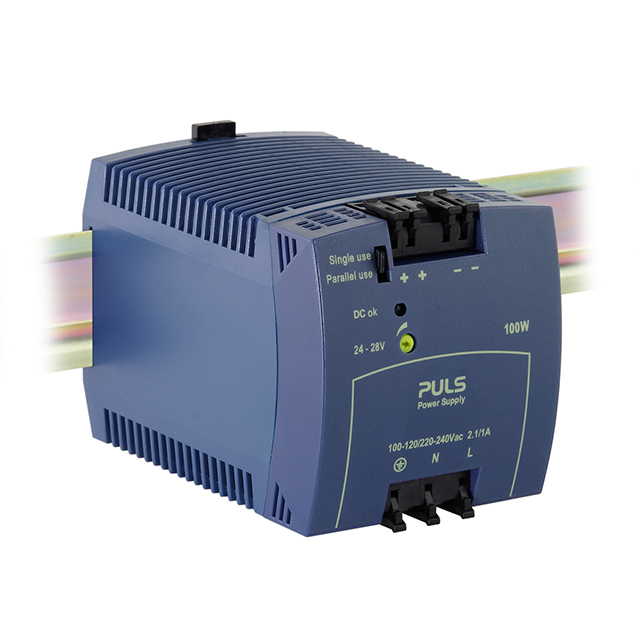

PULS, LP ML100.109	CSA EAC IEC UL	AC	100 W	508 60950-1 61010-2-201 Class I Div 2	70 °C	-10 °C	24 V	1	Adjustable Output Conformal Coating Load Sharing	90 %	120 VAC 240 VAC	100 VAC 200 VAC	4.2 A	73 mm	103 mm	4.06 in	2.95 in	75 mm	2.87 "	ITE (Commercial)

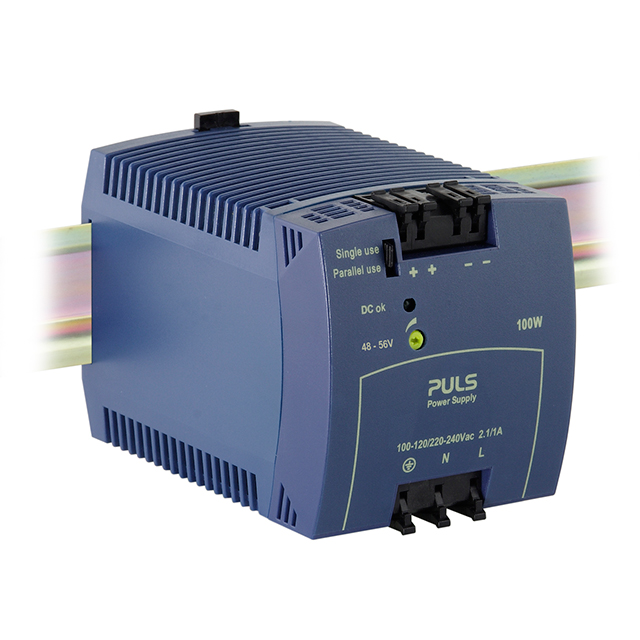

PULS, LP ML100.105	ABS DNV GL EAC IEC UL	AC	100 W	508 60950-1 61010-2-201	70 °C	0 °C	48 V	1	Adjustable Output Load Sharing	91.5 %	132 VAC 264 VAC	85 VAC 184 VAC	2.1 A	73 mm	103 mm	4.06 in	2.95 in	75 mm	2.87 "	ITE (Commercial)

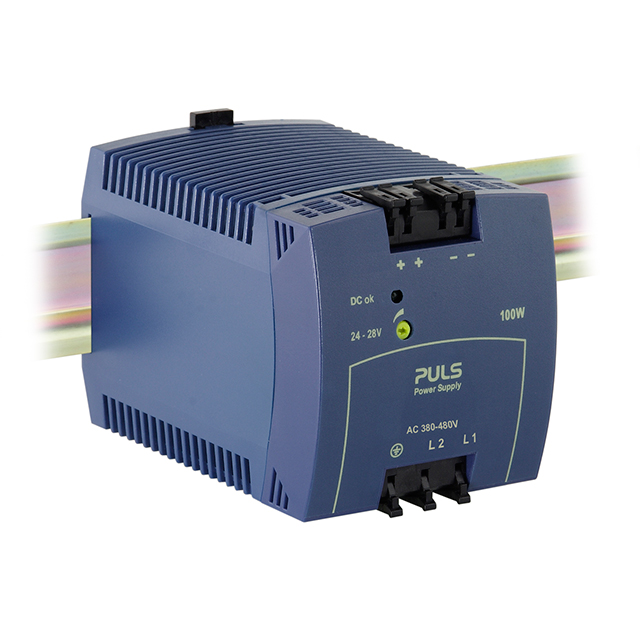

PULS, LP ML100.200	ABS DNV GL EAC IEC UL	AC	100 W	508 60950-1 61010-2-201			24 V	1	Adjustable Output Load Sharing	90 %	480 VAC	380 VAC	4.2 A	73 mm	103 mm	4.06 in	2.95 in	75 mm	2.87 "	ITE (Commercial)
