BIDNW30N Series
Manufacturer: Bourns Inc.
Beta
⌘K

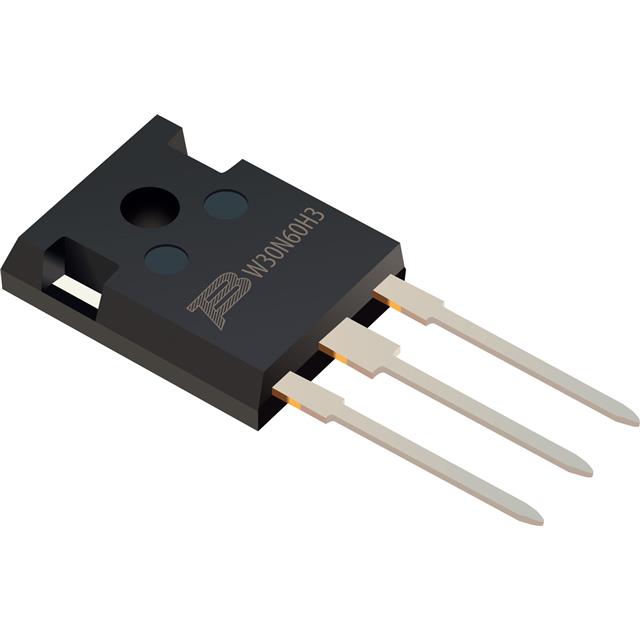

IGBT TRENCH FS 600V 60A TO247NL
| Part | Switching Energy | Package / Case | Current - Collector Pulsed (Icm) | Vce(on) (Max) @ Vge, Ic | IGBT Type | Operating Temperature [Max] | Operating Temperature [Min] | Supplier Device Package | Mounting Type | Power - Max [Max] | Td (on/off) @ 25°C [custom] | Td (on/off) @ 25°C [custom] | Current - Collector (Ic) (Max) [Max] | Gate Charge | Reverse Recovery Time (trr) | Voltage - Collector Emitter Breakdown (Max) [Max] | Test Condition |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 1.85 mJ 450 µJ | TO-247-3 | 120 A | 2 V | Trench Field Stop | 150 °C | -55 °C | TO-247N-3L | Through Hole | 230 W | 30 ns | 67 ns | 60 A | 76 nC | 28 ns | 600 V | 10 Ohm 15 V 30 A 400 V |
