LM75B Series

±2°C, 3.0V to 5.5V industry standard temperature sensor with I2C/SMBus interface

Catalog

±2°C, 3.0V to 5.5V industry standard temperature sensor with I2C/SMBus interface

Part	Sensor Type	Test Condition [Min]	Test Condition [Min]	Test Condition [Max]	Test Condition [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Package / Case [custom]	Package / Case	Mounting Type	Sensing Temperature - Local [Max]	Sensing Temperature - Local [Min]	Features	Output Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Accuracy - Highest (Lowest)	Accuracy - Highest (Lowest)	Resolution	Package / Case [y]	Package / Case [x]	Supplier Device Package	Utilized IC / Part	Supplied Contents	Interface	Sensing Range [Min]	Sensing Range [Max]	Sensitivity	Embedded
Texas Instruments LM75CIMMX-5/NOPB	Digital Local	-55 °C	-25 °C	100 °C	125 °C	-55 °C	125 °C	8-MSOP 8-TSSOP	0.118 in	3 mm	Surface Mount	125 °C	-55 ¯C	Output Switch Programmable Limit Shutdown Mode	I2C	5.5 V	3 V	2 °C	3 °C	9 b
Texas Instruments LM75BIMMX-5/NOPB	Digital Local	-55 °C	-25 °C	100 °C	125 °C	-55 °C	125 °C	8-MSOP 8-TSSOP	0.118 in	3 mm	Surface Mount	125 °C	-55 ¯C	Output Switch Programmable Limit Shutdown Mode	I2C	5.5 V	3 V	2 °C	3 °C	9 b
Texas Instruments LM75BIM-5	Digital Local	-55 °C	-25 °C	100 °C	125 °C	-55 °C	125 °C	8-SOIC			Surface Mount	125 °C	-55 ¯C	Output Switch Programmable Limit Shutdown Mode	I2C	5.5 V	3 V	2 °C	3 °C	9 b	3.9 mm	0.154 in	8-SOIC
Texas Instruments LM75BIMX-3	Digital Local	-55 °C	-25 °C	100 °C	125 °C	-55 °C	125 °C	8-SOIC			Surface Mount	125 °C	-55 ¯C	Output Switch Programmable Limit Shutdown Mode	I2C	5.5 V	3 V	2 °C	3 °C	9 b	3.9 mm	0.154 in	8-SOIC
Texas Instruments LM75CIMM-3/NOPB	Digital Local	-55 °C	-25 °C	100 °C	125 °C	-55 °C	125 °C	8-MSOP 8-TSSOP	0.118 in	3 mm	Surface Mount	125 °C	-55 ¯C	Output Switch Programmable Limit Shutdown Mode	I2C	5.5 V	3 V	2 °C	3 °C	9 b

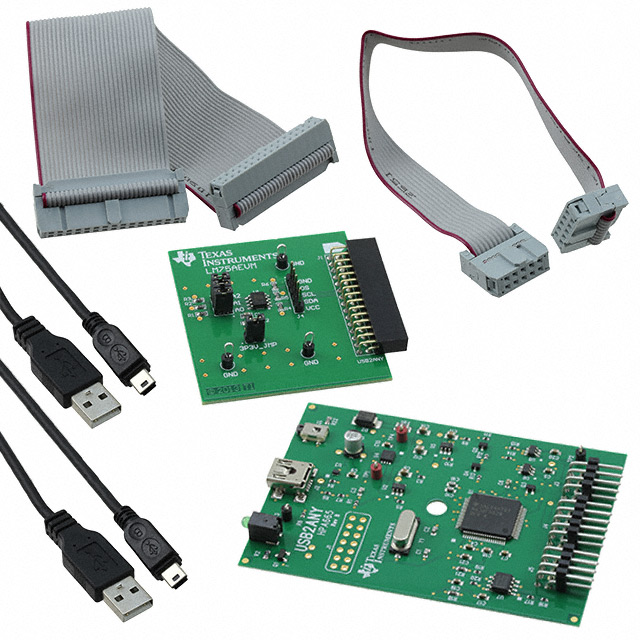

Texas Instruments LM75AEVM	Temperature																							LM75A	Board(s)	I2C	-55 °C	125 °C	3 °C	16-Bit MCU
Texas Instruments LM75CIMMX-3/NOPB	Digital Local	-55 °C	-25 °C	100 °C	125 °C	-55 °C	125 °C	8-MSOP 8-TSSOP	0.118 in	3 mm	Surface Mount	125 °C	-55 ¯C	Output Switch Programmable Limit Shutdown Mode	I2C	5.5 V	3 V	2 °C	3 °C	9 b
Texas Instruments LM75CIMM-5/NOPB	Digital Local	-55 °C	-25 °C	100 °C	125 °C	-55 °C	125 °C	8-MSOP 8-TSSOP	0.118 in	3 mm	Surface Mount	125 °C	-55 ¯C	Output Switch Programmable Limit Shutdown Mode	I2C	5.5 V	3 V	2 °C	3 °C	9 b
Texas Instruments LM75BIMM-3/NOPB	Digital Local	-55 °C	-25 °C	100 °C	125 °C	-55 °C	125 °C	8-MSOP 8-TSSOP	0.118 in	3 mm	Surface Mount	125 °C	-55 ¯C	Output Switch Programmable Limit Shutdown Mode	I2C	5.5 V	3 V	2 °C	3 °C	9 b
Texas Instruments LM75BIM-3/NOPB	Digital Local	-55 °C	-25 °C	100 °C	125 °C	-55 °C	125 °C	8-SOIC			Surface Mount	125 °C	-55 ¯C	Output Switch Programmable Limit Shutdown Mode	I2C	5.5 V	3 V	2 °C	3 °C	9 b	3.9 mm	0.154 in	8-SOIC

Catalog

±2°C, 3.0V to 5.5V industry standard temperature sensor with I2C/SMBus interface

Key Features

• No External Components RequiredShutdown Mode to Minimize Power ConsumptionUp to Eight LM75s Can be Connected to a Single BusPower Up Defaults Permit Stand-alone Operation as ThermostatUL Recognized Component (LM75B and LM75C)Key Specifications:Supply VoltageLM75B, LM75C: 3 V to 5.5 VSupply CurrentOperating: 280 μA (typical)Shutdown: 4 μA (typical)Temperature Accuracy−25°C to 100°C: ±2°C (maximum)−55°C to 125°C: ±3°C (maximum)All trademarks are the property of their respective owners.No External Components RequiredShutdown Mode to Minimize Power ConsumptionUp to Eight LM75s Can be Connected to a Single BusPower Up Defaults Permit Stand-alone Operation as ThermostatUL Recognized Component (LM75B and LM75C)Key Specifications:Supply VoltageLM75B, LM75C: 3 V to 5.5 VSupply CurrentOperating: 280 μA (typical)Shutdown: 4 μA (typical)Temperature Accuracy−25°C to 100°C: ±2°C (maximum)−55°C to 125°C: ±3°C (maximum)All trademarks are the property of their respective owners.

Description

The LM75A is an industry-standard digital temperature sensor with an integrated sigma-delta analog-to-digital converter (ADC) and I2C interface. The LM75A provides 9-bit digital temperature readings with an accuracy of ±2°C from –25°C to 100°C and ±3°C over –55°C to 125°C. The LM75A operates with a single supply from 2.7 V to 5.5 V. Communication is accomplished over a 2-wire interface which operates up to 400 kHz. The LM75A has three address pins, allowing up to eight LM75A devices to operate on the same 2-wire bus. The LM75A has a dedicated overtemperature output (O.S.) with programmable limit and hysteresis. This output has programmable fault tolerance, which lets the user to define the number of consecutive error conditions that must occur before O.S. is activated. The wide temperature and supply range and I2C interface make the LM75A ideal for a number of applications including base stations, electronic test equipment, office electronics, personal computers, and any other system in which thermal management is critical to performance. The LM75A is available in an SOIC-8 package and an VSSOP-8 package. The LM75A is an industry-standard digital temperature sensor with an integrated sigma-delta analog-to-digital converter (ADC) and I2C interface. The LM75A provides 9-bit digital temperature readings with an accuracy of ±2°C from –25°C to 100°C and ±3°C over –55°C to 125°C. The LM75A operates with a single supply from 2.7 V to 5.5 V. Communication is accomplished over a 2-wire interface which operates up to 400 kHz. The LM75A has three address pins, allowing up to eight LM75A devices to operate on the same 2-wire bus. The LM75A has a dedicated overtemperature output (O.S.) with programmable limit and hysteresis. This output has programmable fault tolerance, which lets the user to define the number of consecutive error conditions that must occur before O.S. is activated. The wide temperature and supply range and I2C interface make the LM75A ideal for a number of applications including base stations, electronic test equipment, office electronics, personal computers, and any other system in which thermal management is critical to performance. The LM75A is available in an SOIC-8 package and an VSSOP-8 package.
