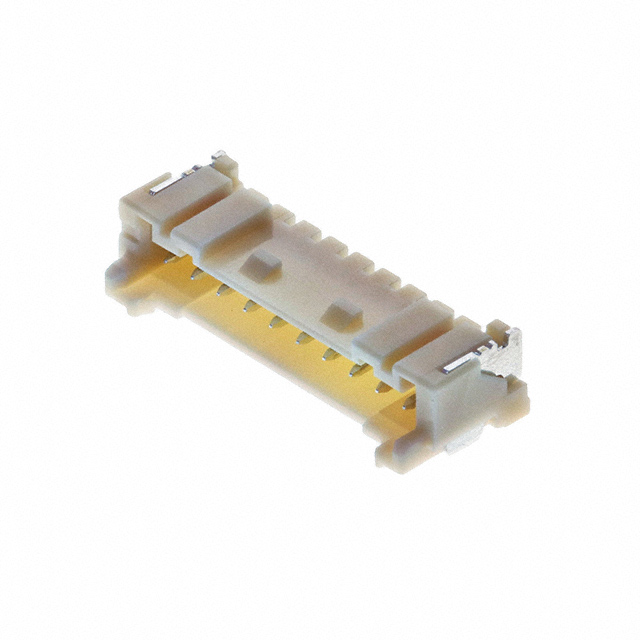

SM10B-PA Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN HEADER SMD R/A 10POS 2MM
| Part | Mounting Type | Fastening Type | Contact Shape | Current Rating (Amps) | Material Flammability Rating | Insulation Material | Shrouding | Contact Type | Contact Finish - Post | Termination | Connector Type | Insulation Height [z] | Insulation Height [z] | Contact Material | Number of Positions Loaded | Style | Number of Rows | Voltage Rating | Operating Temperature [Max] | Operating Temperature [Min] | Insulation Color | Number of Positions | Pitch - Mating | Pitch - Mating | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Right Angle Surface Mount | Locking Ramp | Square | 3 A | UL94 V-0 | Nylon Polyamide (PA) | Shrouded - 4 Wall | Male Pin | Tin | Solder | Header | 5.69 mm | 0.224 in | Copper Alloy | All | Board to Cable/Wire | 1 | 250 V | 85 °C | -25 °C | Natural | 10 | 0.079 " | 2 mm | Pick and Place Solder Retention |
