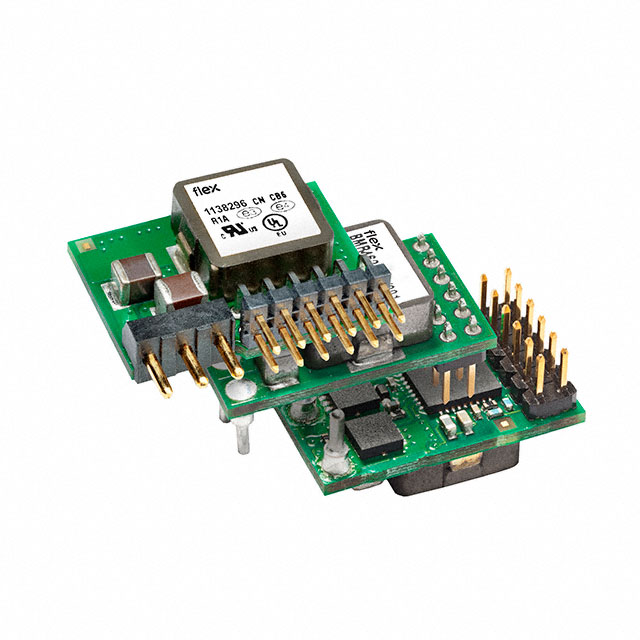

BMR462 Series

Catalog

DC DC CONVERTER 0.6-5V 60W

Part	Voltage - Input (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Control Features	Efficiency	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Features	Package / Case	Type	Standard Number	Voltage - Input (Max) [Max]	Power (Watts)	Approval Agency	Current - Output (Max) [Max]	Number of Outputs	Voltage - Output 1 [Min] [custom]	Voltage - Output 1 [Max] [custom]	Mounting Type
Flex Power Modules BMR4622002/001	4.5 V	120 °C	-40 °C	ITE (Commercial)	Active Low Enable	95.7 %	7 mm	0.28 in	20.8 mm	0.61 in	15.6 mm	0.82 "	Adjustable Output PMBus™ Remote On/Off Remote Sense	15-SIP Module	Non-Isolated PoL Module Digital	62368-1	14 V	60 W	CB CSA IEC TUV UL	12 A	1	0.6 V	5 V	Through Hole
Flex Power Modules BMR4621002/001	4.5 V	120 °C	-40 °C	ITE (Commercial)	Active High Enable	95.7 %	12.7 mm	0.5 "	21 mm	0.32 "	8.2 mm	0.83 "	Adjustable Output PMBus™ Remote On/Off Remote Sense	15-SMD Module	Non-Isolated PoL Module Digital	62368-1	14 V	60 W	CB CSA IEC TUV UL	12 A	1	0.6 V	5 V	Surface Mount
Flex Power Modules BMR4620002/001	4.5 V	120 °C	-40 °C	ITE (Commercial)	Active Low Enable	95.7 %	12.7 mm	0.5 "	21 mm	0.28 "	7.2 mm	0.83 "	Adjustable Output PMBus™ Remote On/Off Remote Sense	15-DIP Module	Non-Isolated PoL Module Digital	62368-1	14 V	60 W	CB CSA IEC TUV UL	12 A	1	0.6 V	5 V	Through Hole
