3137-4 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PC PIN CIRC .040DIA GOLD

Part	Length - Overall [x]	Length - Overall [x]	Contact Finish	Terminal Type	Contact Material	Insulation	Length - Above Flange	Length - Above Flange	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Terminal Style	Pin Size - Below Flange [diameter]	Pin Size - Below Flange [diameter]	Contact Finish Thickness	Contact Finish Thickness	Flange Diameter [diameter]	Flange Diameter [diameter]	Termination	Pin Size - Above Flange [diameter]	Pin Size - Above Flange	Mounting Type	Length - Below Flange [x]	Length - Below Flange [x]	Board Thickness [z]	Board Thickness [z]	Board Thickness	Board Thickness

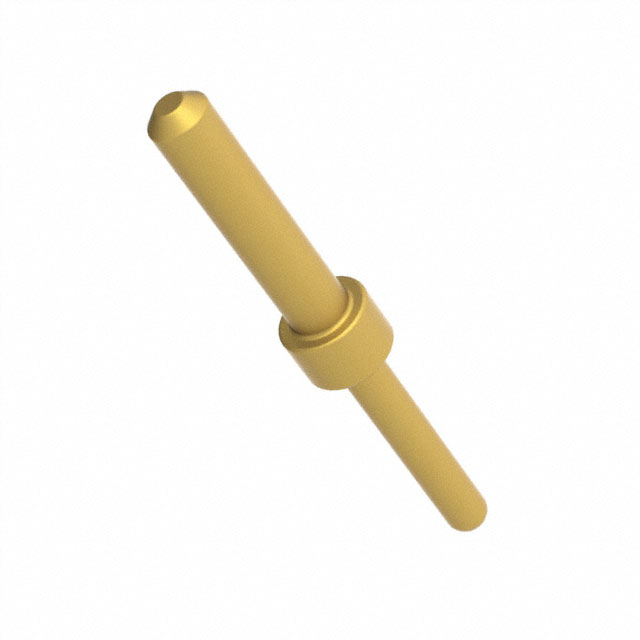

Mill-Max Manufacturing Corp. 3137-4-00-15-00-00-08-0	0.405 in	10.29 mm	Gold	PC Pin	Brass Alloy	Non-Insulated	4.7 mm	0.185 in	0.043 in	1.09 mm	Double End	0.03 in	0.76 mm	0.25 Ám	10 Áin	1.57 mm	0.062 in	Solder	0.04 in	1.02 mm	Through Hole	0.18 "	4.57 mm	0.156 in	3.96 mm
Mill-Max Manufacturing Corp. 3137-4-00-21-00-00-08-0	0.405 in	10.29 mm	Gold	PC Pin	Brass Alloy	Non-Insulated	4.7 mm	0.185 in	0.043 in	1.09 mm	Double End	0.03 in	0.76 mm	0.51 µm	20 µin	1.57 mm	0.062 in	Solder	0.04 in	1.02 mm	Through Hole	0.18 "	4.57 mm	0.156 in	3.96 mm
Mill-Max Manufacturing Corp. 3137-4-00-80-00-00-08-0	0.405 in	10.29 mm	Tin	PC Pin	Brass Alloy	Non-Insulated	4.7 mm	0.185 in	0.043 in	1.09 mm	Double End	0.03 in	0.76 mm	5.08 Ám	200 Áin	1.57 mm	0.062 in	Solder	0.04 in	1.02 mm	Through Hole	0.18 "	4.57 mm			1.57 mm	0.062 "
Mill-Max Manufacturing Corp. 3137-4-00-01-00-00-08-0	0.405 in	10.29 mm	Tin-Lead	PC Pin	Brass Alloy	Non-Insulated	4.7 mm	0.185 in	0.043 in	1.09 mm	Double End	0.03 in	0.76 mm	5.08 Ám	200 Áin	1.57 mm	0.062 in	Solder	0.04 in	1.02 mm	Through Hole	0.18 "	4.57 mm	0.156 in	3.96 mm
