M80-400 Series
Manufacturer: Harwin Inc.
Beta
⌘K
CONN RCPT 28POS 0.079 GOLD PCB
| Part | Insulation Material | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Shape | Contact Material | Applications | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish - Mating | Row Spacing - Mating | Row Spacing - Mating | Number of Positions Loaded | Connector Type | Insulation Color | Insulation Height | Insulation Height | Number of Rows [custom] | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Material Flammability Rating | Mated Stacking Heights | Voltage Rating | Contact Length - Post | Contact Length - Post | Mounting Type | Features | Style | Number of Positions | Contact Finish - Post | Pitch - Mating | Pitch - Mating | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Harwin Inc. | Polyphenylene Sulfide (PPS) Glass Filled | 3.5 Ám | 137.8 Áin | Circular | Beryllium Copper | Automotive General Purpose Military | Solder | -55 C | 125 °C | Gold | 2 mm | 0.079 in | All | Receptacle | Black | 5.2 mm | 0.205 " | 2 | 12 Áin | 0.3 Ám | UL94 V-0 | 7.3 mm 7.55 mm | 120 VDC | 0.118 in | 3 mm | Through Hole | Jackscrews Mating Flange Mounting Flange Polarizing Key | Board to Board Cable | 28 | Tin | 0.079 " | 2 mm | Female Socket |
Harwin Inc. | Polyphenylene Sulfide (PPS) Glass Filled | 3.5 Ám | 137.8 Áin | Circular | Beryllium Copper | Automotive General Purpose Military | Solder | -55 C | 125 °C | Gold | 2 mm | 0.079 in | All | Receptacle | Black | 5.2 mm | 0.205 " | 2 | 12 Áin | 0.3 Ám | UL94 V-0 | 7.3 mm 7.55 mm | 120 VDC | 0.118 in | 3 mm | Through Hole | Jackscrews Mating Flange Mounting Flange Polarizing Key | Board to Board Cable | 18 | Tin-Lead | 0.079 " | 2 mm | Female Socket |

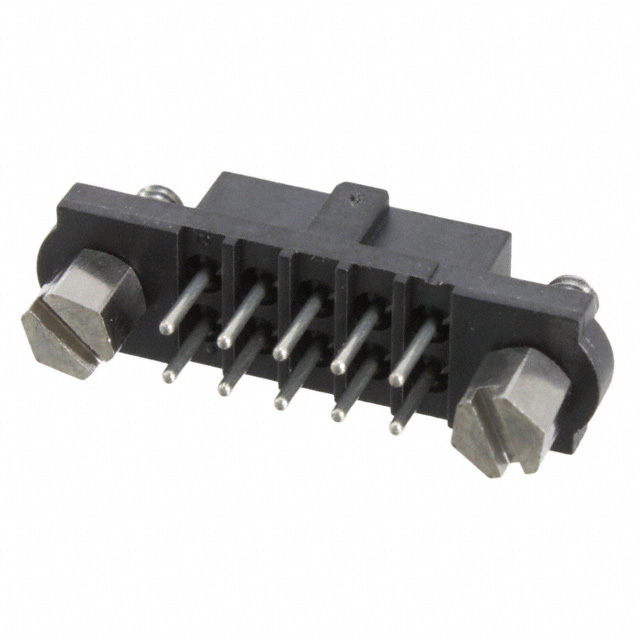

 Harwin Inc. | Polyphenylene Sulfide (PPS) Glass Filled | 3.5 Ám | 137.8 Áin | Circular | Beryllium Copper | Automotive General Purpose Military | Solder | -55 C | 125 °C | Gold | 2 mm | 0.079 in | All | Receptacle | Black | 5.2 mm | 0.205 " | 2 | 12 Áin | 0.3 Ám | UL94 V-0 | 7.3 mm 7.55 mm | 120 VDC | 0.118 in | 3 mm | Through Hole | Jackscrews Mating Flange Mounting Flange Polarizing Key | Board to Board Cable | 10 | Tin | 0.079 " | 2 mm | Female Socket |
Harwin Inc. | Polyphenylene Sulfide (PPS) Glass Filled | 0.25 çm | 10 Áin | Circular | Beryllium Copper | Automotive General Purpose Military | Solder | -55 C | 125 °C | Gold | 2 mm | 0.079 in | All | Receptacle | Black | 5.2 mm | 0.205 " | 2 | 12 Áin | 0.3 Ám | UL94 V-0 | 7.3 mm 7.55 mm | 120 VDC | 0.118 in | 3 mm | Through Hole | Jackscrews Mating Flange Mounting Flange Polarizing Key | Board to Board Cable | 36 | Gold | 0.079 " | 2 mm | Female Socket |
Harwin Inc. | Polyphenylene Sulfide (PPS) Glass Filled | 3.5 Ám | 137.8 Áin | Circular | Beryllium Copper | Automotive General Purpose Military | Solder | -55 C | 125 °C | Gold | 2 mm | 0.079 in | All | Receptacle | Black | 5.2 mm | 0.205 " | 2 | 12 Áin | 0.3 Ám | UL94 V-0 | 7.3 mm 7.55 mm | 120 VDC | 0.118 in | 3 mm | Through Hole | Jackscrews Mating Flange Mounting Flange Polarizing Key | Board to Board Cable | 22 | Tin | 0.079 " | 2 mm | Female Socket |

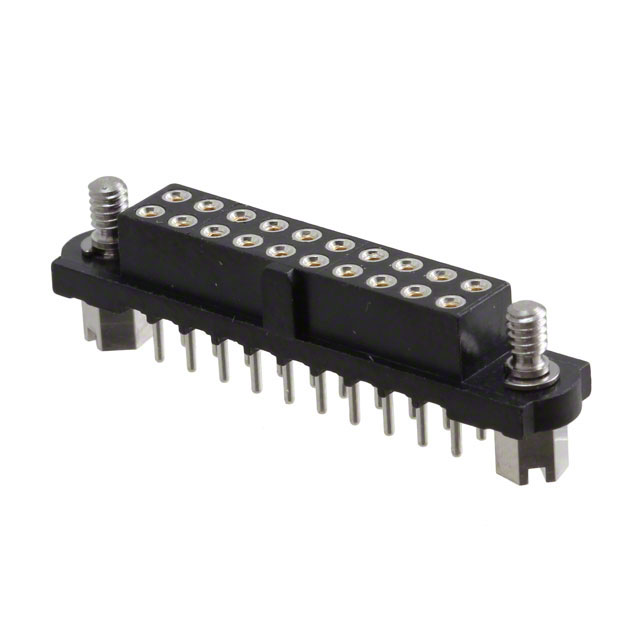

 Harwin Inc. | Polyphenylene Sulfide (PPS) Glass Filled | 3.5 Ám | 137.8 Áin | Circular | Beryllium Copper | Automotive General Purpose Military | Solder | -55 C | 125 °C | Gold | 2 mm | 0.079 in | All | Receptacle | Black | 5.2 mm | 0.205 " | 2 | 12 Áin | 0.3 Ám | UL94 V-0 | 7.3 mm 7.55 mm | 120 VDC | 0.118 in | 3 mm | Through Hole | Jackscrews Mating Flange Mounting Flange Polarizing Key | Board to Board Cable | 20 | Tin | 0.079 " | 2 mm | Female Socket |
Harwin Inc. | Polyphenylene Sulfide (PPS) Glass Filled | 0.25 çm | 10 Áin | Circular | Beryllium Copper | Automotive General Purpose Military | Solder | -55 C | 125 °C | Gold | 2 mm | 0.079 in | All | Receptacle | Black | 5.2 mm | 0.205 " | 2 | 12 Áin | 0.3 Ám | UL94 V-0 | 7.3 mm 7.55 mm | 120 VDC | 0.118 in | 3 mm | Through Hole | Jackscrews Mating Flange Mounting Flange Polarizing Key | Board to Board Cable | 8 | Gold | 0.079 " | 2 mm | Female Socket |
Harwin Inc. | Polyphenylene Sulfide (PPS) Glass Filled | 3.5 Ám | 137.8 Áin | Circular | Beryllium Copper | Automotive General Purpose Military | Solder | -55 C | 125 °C | Gold | 2 mm | 0.079 in | All | Receptacle | Black | 5.2 mm | 0.205 " | 2 | 12 Áin | 0.3 Ám | UL94 V-0 | 7.3 mm 7.55 mm | 120 VDC | 0.118 in | 3 mm | Through Hole | Jackscrews Mating Flange Mounting Flange Polarizing Key | Board to Board Cable | Tin | 0.079 " | 2 mm | Female Socket | |

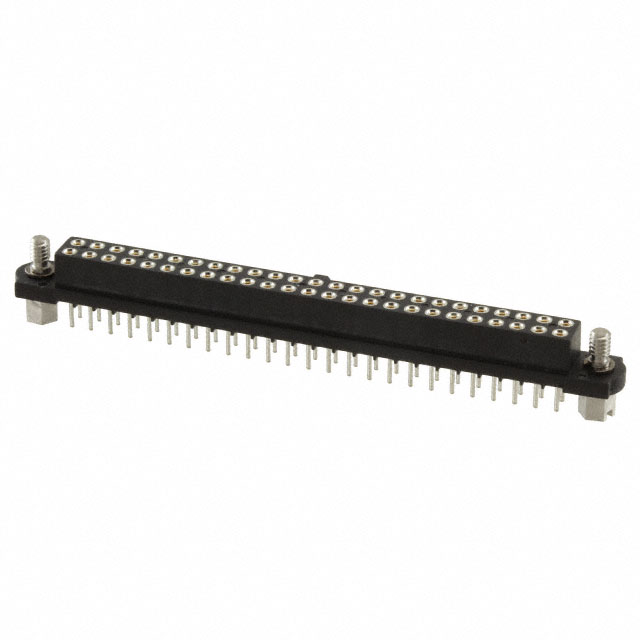

 Harwin Inc. | Polyphenylene Sulfide (PPS) Glass Filled | 3.5 Ám | 137.8 Áin | Circular | Beryllium Copper | Automotive General Purpose Military | Solder | -55 C | 125 °C | Gold | 2 mm | 0.079 in | All | Receptacle | Black | 5.2 mm | 0.205 " | 2 | 12 Áin | 0.3 Ám | UL94 V-0 | 7.3 mm 7.55 mm | 120 VDC | 0.118 in | 3 mm | Through Hole | Jackscrews Mating Flange Mounting Flange Polarizing Key | Board to Board Cable | 50 | Tin | 0.079 " | 2 mm | Female Socket |
Harwin Inc. | Polyphenylene Sulfide (PPS) Glass Filled | 0.25 çm | 10 Áin | Circular | Beryllium Copper | Automotive General Purpose Military | Solder | -55 C | 125 °C | Gold | 2 mm | 0.079 in | All | Receptacle | Black | 5.2 mm | 0.205 " | 2 | 12 Áin | 0.3 Ám | UL94 V-0 | 7.3 mm 7.55 mm | 120 VDC | 0.118 in | 3 mm | Through Hole | Jackscrews Mating Flange Mounting Flange Polarizing Key | Board to Board Cable | 26 | Gold | 0.079 " | 2 mm | Female Socket |
