ESH227M Series

Manufacturer: KEMET

Catalog

CAP ALUM 220UF 20% 35V RADIAL TH

Part	Ripple Current @ Low Frequency	Operating Temperature [Min]	Operating Temperature [Max]	Lifetime @ Temp.	Mounting Type	Package / Case	Size / Dimension [diameter]	Size / Dimension [diameter]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Tolerance	Capacitance	Applications	Ripple Current @ High Frequency	Voltage - Rated	Polarization	Lead Spacing	Lead Spacing	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [custom]	Height - Seated (Max) [Max] [custom]

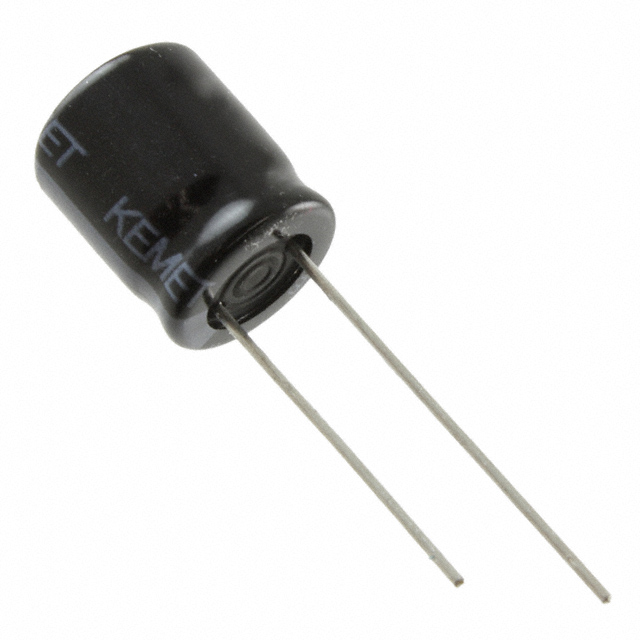

KEMET ESH227M035AH1AA	315 mA	-40 C	105 ░C	2000 Hrs	Through Hole	Can Radial	0.394 in	10 mm	0.531 in	13.5 mm	20 %	220 µF	General Purpose	472.5 mA	35 V	Polar	0.197 "	5 mm

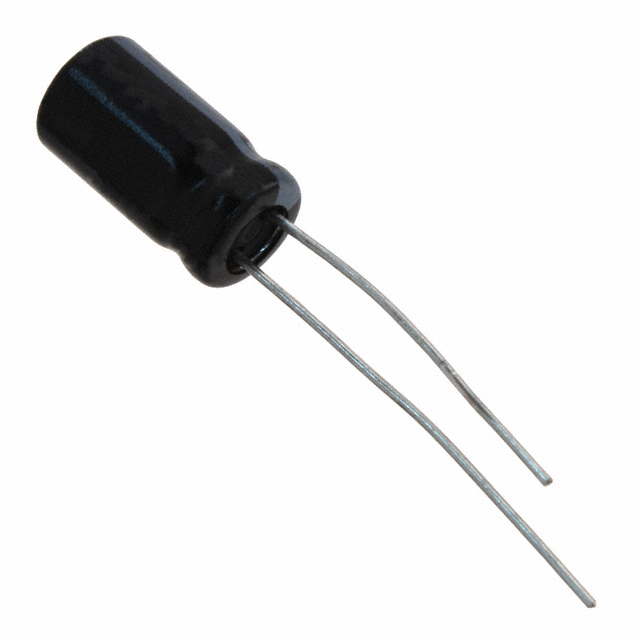

KEMET ESH227M010AE3AA	180 mA	-40 C	105 ░C	2000 Hrs	Through Hole	Can Radial	0.236 in 0.248 "	6 mm 6.3 mm		0.492 in	20 %	220 µF	General Purpose		10 V	Polar	0.098 in	2.5 mm	12.5 mm
KEMET ESH227M025AG3AA	240 mA	-40 C	105 ░C	2000 Hrs	Through Hole	Can Radial	0.315 in	8 mm		0.492 in	20 %	220 µF	General Purpose	360 mA	25 VDC	Polar	0.138 in	3.5 mm	12.5 mm
KEMET ESH227M063AH4AA	465 mA	-40 C	105 ░C	2000 Hrs	Through Hole	Can Radial	0.394 in	10 mm			20 %	220 µF	General Purpose	697.5 mA	63 V	Polar	0.197 "	5 mm		0.866 in	22 mm
