PX0695 Series

Catalog

PWR ENT RCPT IEC320-2-2F PANEL

Part	Connector Style	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Material Flammability Rating	Connector Type	Mounting Type	Panel Thickness	Panel Thickness	Voltage Rating - Appliance Inlet	Approval Agency	Current Rating - Appliance Inlet	Termination	Filter Type	Switch Features	Termination	Termination

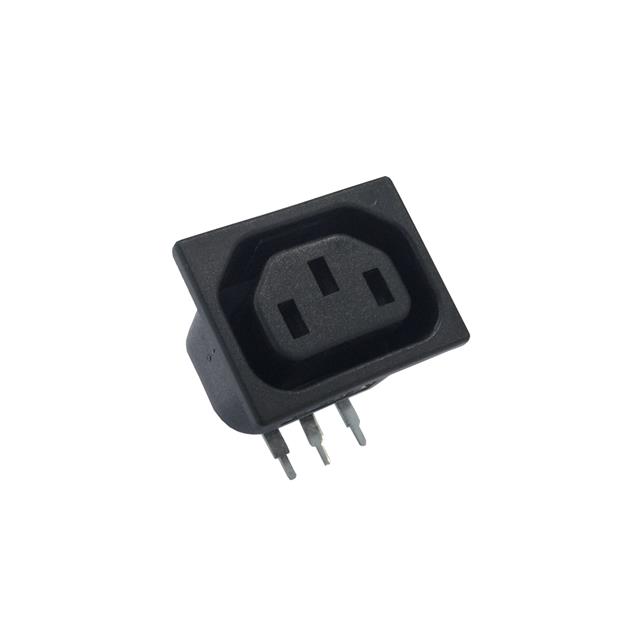

BULGIN LIMITED PX0695/30/PC	IEC 320-2-2/F	24.77 mm	32.26 mm	UL94 V-0	Receptacle Female Sockets	Panel Mount Right Angle Snap-In Through Hole	0.118 "	3 mm	250 VAC	CSA ENEC UL VDE	10 A	Solder	Unfiltered - Commercial
BULGIN LIMITED PX0695/15/PC	IEC 320-2-2/F IEC 320-2-2/F (C14 Variant)	24.77 mm	32.26 mm	UL94 V-0	Receptacle Female Sockets	Panel Mount Right Angle Snap-In Through Hole	0.059 in	1.5 mm	250 VAC	CSA ENEC UL VDE	10 A	Solder	Unfiltered - Commercial	No Breaker/Switch
BULGIN LIMITED PX0695/10/28	IEC 320-2-2/F IEC 320-2-2/F (C14 Variant)	24.77 mm	32.26 mm	UL94 V-0	Receptacle Female Sockets	Panel Mount Snap-In	0.039 in	1 mm	250 VAC	CSA ENEC UL VDE	10 A	Quick Connect Solder	Unfiltered - Commercial	No Breaker/Switch	2.8 mm	0.11 "
BULGIN LIMITED PX0695/10/63	IEC 320-2-2/F	24.77 mm	32.26 mm	UL94 V-0	Receptacle Female Sockets	Panel Mount Snap-In	0.039 in	1 mm	250 VAC	CSA ENEC UL VDE	10 A	Quick Connect	Unfiltered - Commercial		6.3 mm	0.25 "
BULGIN LIMITED PX0695/30/63	IEC 320-2-2/F	24.77 mm	32.26 mm	UL94 V-0	Receptacle Female Sockets	Panel Mount Snap-In	0.118 "	3 mm	250 VAC	CSA ENEC UL VDE	10 A	Quick Connect	Unfiltered - Commercial		6.3 mm	0.25 "
BULGIN LIMITED PX0695/20/28	IEC 320-2-2/F	24.77 mm	32.26 mm	UL94 V-0	Receptacle Female Sockets	Panel Mount Snap-In	0.079 in	2 mm	250 VAC	CSA ENEC UL VDE	10 A	Solder	Unfiltered - Commercial
BULGIN LIMITED PX0695/15/28	IEC 320-2-2/F	24.77 mm	32.26 mm	UL94 V-0	Receptacle Female Sockets	Panel Mount Snap-In	0.059 in	1.5 mm	250 VAC	CSA ENEC UL VDE	10 A	Solder	Unfiltered - Commercial
