R16428 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

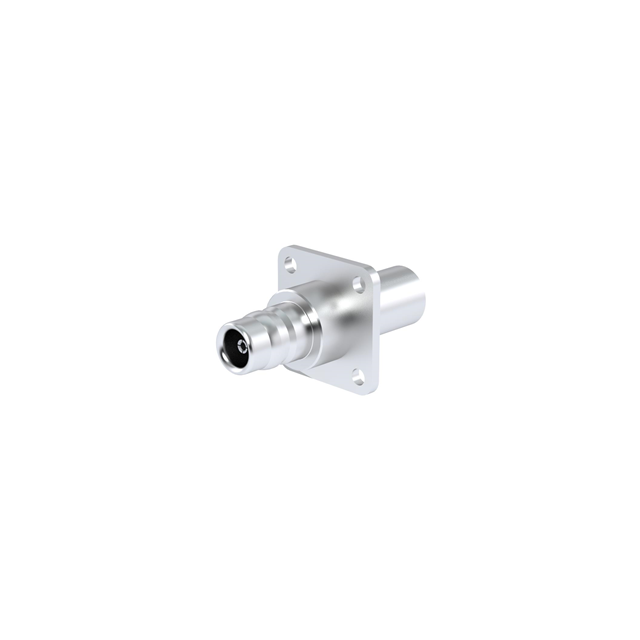

QN / STRAIGHT SQUARE FLANGE JACK
| Part | Body Material | Body Finish | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Dielectric Material | Mounting Feature | Cable Group | Cable Group | Frequency - Max [Max] | Housing Color | Fastening Type | Center Contact Material | Connector Type | Contact Termination | Impedance | Mounting Type | Ingress Protection | Shield Termination | Connector Style | Number of Ports |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Brass | White Bronze | -55 C | 125 °C | 1000 VDC | Polytetrafluoroethylene (PTFE) | Flange | 213 | RG-165 | 6000 MHz | Silver | Snap-On | Beryllium Copper | Female Socket Jack | Crimp | 50 Ohms | Panel Mount | IP68 - Dust Tight Waterproof | Crimp | QN | 1 |
