1909782 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

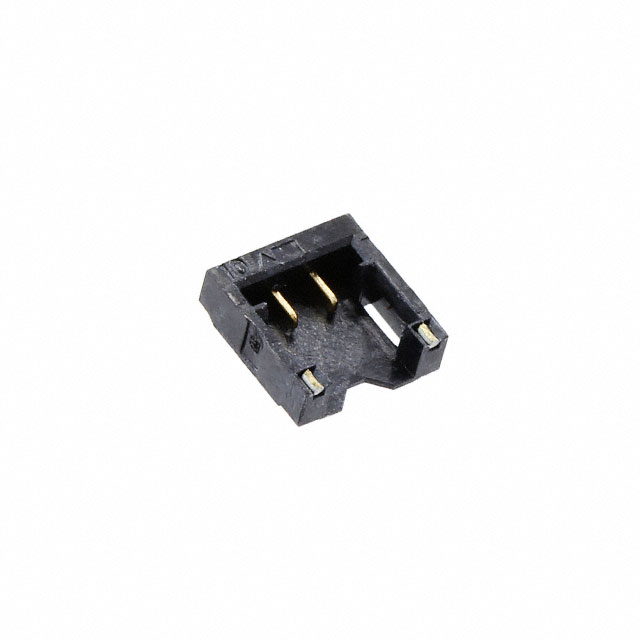

CONN HEADER SMD R/A 2POS 1.2MM
| Part | Shrouding | Mounting Type | Style | Contact Type | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows | Connector Type | Termination | Number of Positions | Fastening Type | Contact Shape | Number of Positions Loaded | Contact Finish - Mating | Insulation Height [z] | Insulation Height [z] | Applications | Pitch - Mating | Pitch - Mating | Contact Finish Thickness - Mating | Insulation Color | Material Flammability Rating | Features | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Shrouded - 3 Wall | Surface Mount Right Angle | Board to Cable/Wire | Tab | 50 VAC | -25 °C | 85 °C | 1 | Header | Solder | 2 | Friction Lock | Rectangular | All | Gold | 0.055 in | 1.4 mm | Automotive General Purpose Industrial Medical | 0.047 in | 1.2 mm | Flash | Black | UL94 V-0 | Solder Retention | Phosphor Bronze |
 TE Connectivity Raychem Cable Protection | Shrouded - 3 Wall | Surface Mount Right Angle | Board to Cable/Wire | Tab | 50 VAC | -25 °C | 85 °C | 1 | Header | Solder | Friction Lock | Rectangular | All | Gold | 0.055 in | 1.4 mm | Automotive General Purpose Industrial Medical | 0.047 in | 1.2 mm | Flash | Black | UL94 V-0 | Solder Retention | Phosphor Bronze | |
TE Connectivity Raychem Cable Protection | Shrouded - 3 Wall | Surface Mount Right Angle | Board to Cable/Wire | Tab | 50 VAC | -25 °C | 85 °C | 1 | Header | Solder | Friction Lock | Rectangular | All | Gold | 0.055 in | 1.4 mm | Automotive General Purpose Industrial Medical | 0.047 in | 1.2 mm | Flash | Black | UL94 V-0 | Solder Retention | Phosphor Bronze |
