OCP-PCTB116 Series
Manufacturer: Lumex Opto/Components Inc.
Beta
⌘K
OPTOISO 5KV TRANS W/BASE 6DIP
| Part | Input Type | Vce Saturation (Max) [Max] | Current - Output / Channel [custom] | Supplier Device Package | Rise / Fall Time (Typ) [custom] | Rise / Fall Time (Typ) [custom] | Mounting Type | Voltage - Output (Max) [Max] | Number of Channels [custom] | Current Transfer Ratio (Max) | Package / Case | Operating Temperature [Min] | Operating Temperature [Max] | Current Transfer Ratio (Min) [Min] | Current - DC Forward (If) (Max) [Max] | Output Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

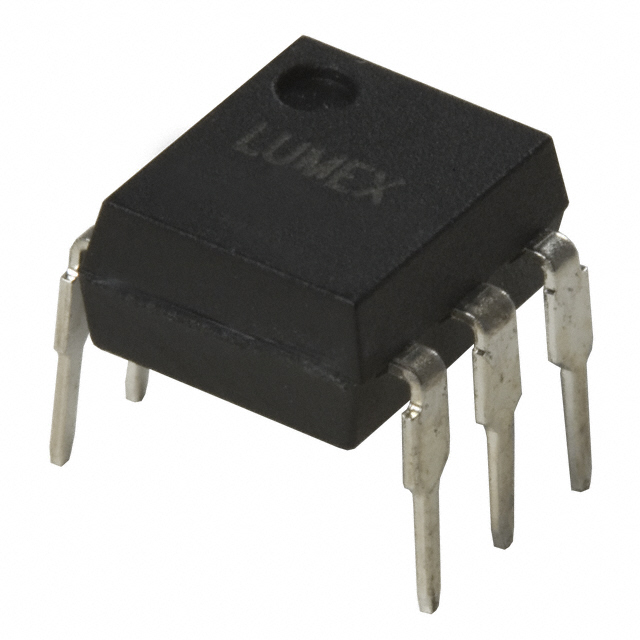

 Lumex Opto/Components Inc. | DC | 300 mV | 50 mA | 6-DIP | 4 µs | 5 µs | Through Hole | 60 V | 1 | 600 % | 6-DIP (0.300" 7.62mm) | -30 ░C | 100 °C | 60 % | 50 mA | Transistor with Base |

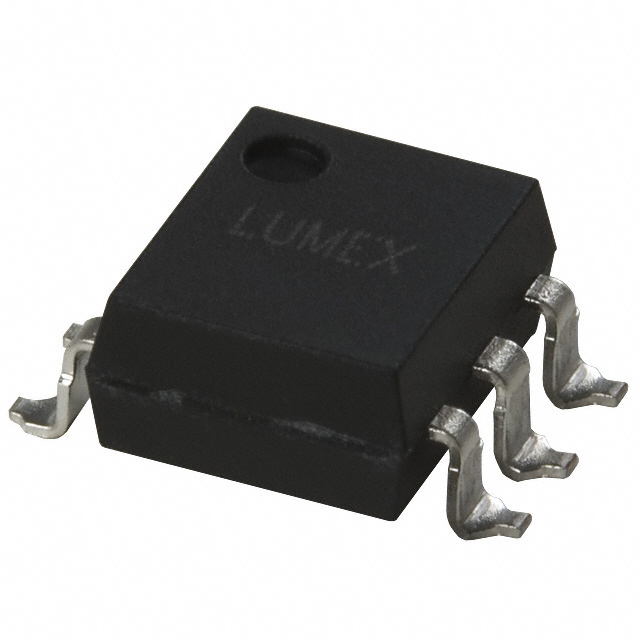

 Lumex Opto/Components Inc. | DC | 300 mV | 50 mA | 6-SMD | 4 µs | 5 µs | Surface Mount | 60 V | 1 | 600 % | 6-SMD Gull Wing | -30 ░C | 100 °C | 60 % | 50 mA | Transistor with Base |
