H480 Series

Catalog

RECTANGULAR 2X3 MM 90 DEGREE QUAD - LEVEL LED

Part	Configuration	Current	Lens Type	Voltage Rating	Lens Size [x]	Lens Size [y]	Viewing Angle	Color	Lens Style	Millicandela Rating	Wavelength - Peak	Millicandela Rating [custom]	Millicandela Rating [custom]	Current
Bivar Inc. H480CHGHGC	Bar - 4 High DIP	20 mA 20 mA	Clear	2 V 2.1 V	3.1 mm	1.9 mm	100 °	Green (x 2) Red (x 2)	Rectangle with Flat Top	8 mcd 8 mcd	568 nm 625 nm
Bivar Inc. H480CBC	Bar - 4 High DIP	20 mA 20 mA	Diffused	2 V 2.1 V	3.1 mm	1.9 mm	120 °	Green Red (x 4)	Rectangle with Flat Top	2.5 mcd 3 mcd	568 nm 625 nm

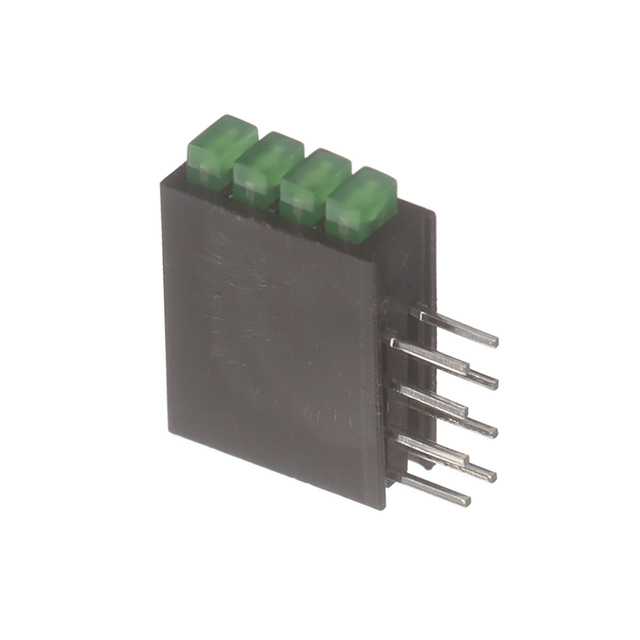

Bivar Inc. H480CGDL	Bar - 4 High DIP	2 mA	Diffused	2.1 V	3.1 mm	1.9 mm	100 °	Green	Rectangle with Flat Top	0.4 mcd	568 nm
Bivar Inc. H480CGYGYD	Bar - 4 High DIP		Diffused	2 V 2.1 V	3.1 mm	1.9 mm	100 °	Green (x 2) Yellow (x 2)	Rectangle with Flat Top		568 nm 590 nm	4 mcd	6 mcd	20mA Green 20mA Yellow
Bivar Inc. H480CGGGYDL	Bar - 4 High DIP		Diffused	2 V 2.1 V	3.1 mm	1.9 mm	100 °	Green (x 3) Yellow (x 1)	Rectangle with Flat Top		568 nm 590 nm	4 mcd	6 mcd	20mA Green 20mA Yellow
Bivar Inc. H480CGHGHC	Bar - 4 High DIP	20 mA 20 mA	Clear	2 V 2.1 V	3.1 mm	1.9 mm	100 °	Green (x 2) Red (x 2)	Rectangle with Flat Top	8 mcd 8 mcd	568 nm 625 nm
Bivar Inc. H480CGD	Bar - 4 High DIP	20 mA	Diffused	2.1 V	3.1 mm	1.9 mm	100 °	Green	Rectangle with Flat Top	6 mcd	568 nm
