DFE18SAN Series
Manufacturer: Murata Electronics
Beta
⌘K

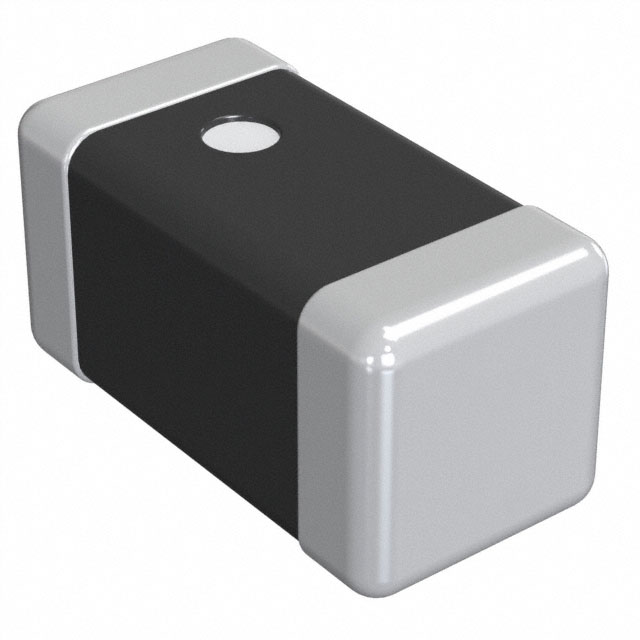

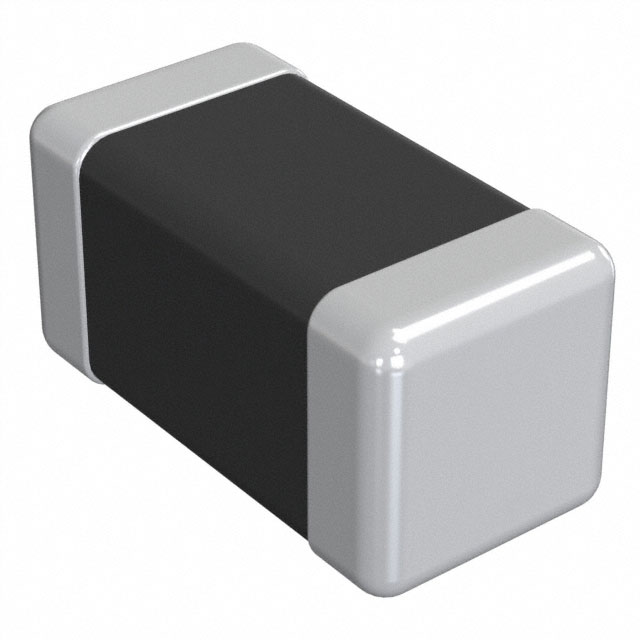

INDUCTOR POWER SHIELDED WIREWOUND 0.24UH 20% 1MHZ METAL 3.2A 0.036OHM DCR 0603 T/R
| Part | Inductance Frequency - Test | Material - Core | DC Resistance (DCR) [Max] | Current - Saturation (Isat) | Current Rating (Amps) | Package / Case | Package / Case | Tolerance | Height - Seated (Max) [Max] | Height - Seated (Max) | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Supplier Device Package | Shielding | Inductance | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Height - Seated (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Murata Electronics | 1 MHz | Metal | 36 mOhm | 4.2 A | 3.2 A | 1608 Metric | 0603 | 20 % | 0.031 in | 0.8 mm | 0.031 in | 1.6 mm | 0.8 mm | 0.063 " | 0603 (1608 Metric) | Shielded | 240 nH | 85 °C | -40 C | Surface Mount | |
 Murata Electronics | 1 MHz | Metal | 54 mOhm | 3.6 A | 2.6 A | 1608 Metric | 0603 | 20 % | 0.039 in | 0.031 in | 1.6 mm | 0.8 mm | 0.063 " | 0603 (1608 Metric) | Shielded | 470 nH | 85 °C | -40 C | Surface Mount | 1 mm |
