MAX17760 Series

Catalog

IC REG BUCK ADJ 300MA 12TDFN

Part	Voltage - Output (Max) [Max]	Voltage - Input (Max) [Max]	Supplier Device Package	Voltage - Input (Min) [Min]	Topology	Package / Case	Current - Output	Output Configuration	Output Type	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Frequency - Switching	Number of Outputs	Voltage - Output (Min/Fixed)	Function	Utilized IC / Part	Main Purpose	Voltage - Input [Max]	Voltage - Input [Min]	Outputs and Type	Outputs and Type	Regulator Topology	Board Type	Voltage - Output	Supplied Contents
Analog Devices Inc./Maxim Integrated MAX17760ATC+T	66.88 V	76 V	12-TDFN (3x3)	4.5 V	Buck	12-WFDFN Exposed Pad	300 mA	Positive	Adjustable	Surface Mount	-40 °C	125 °C	200 kHz 300 kHz 400 kHz 600 kHz	1	0.8 V	Step-Down

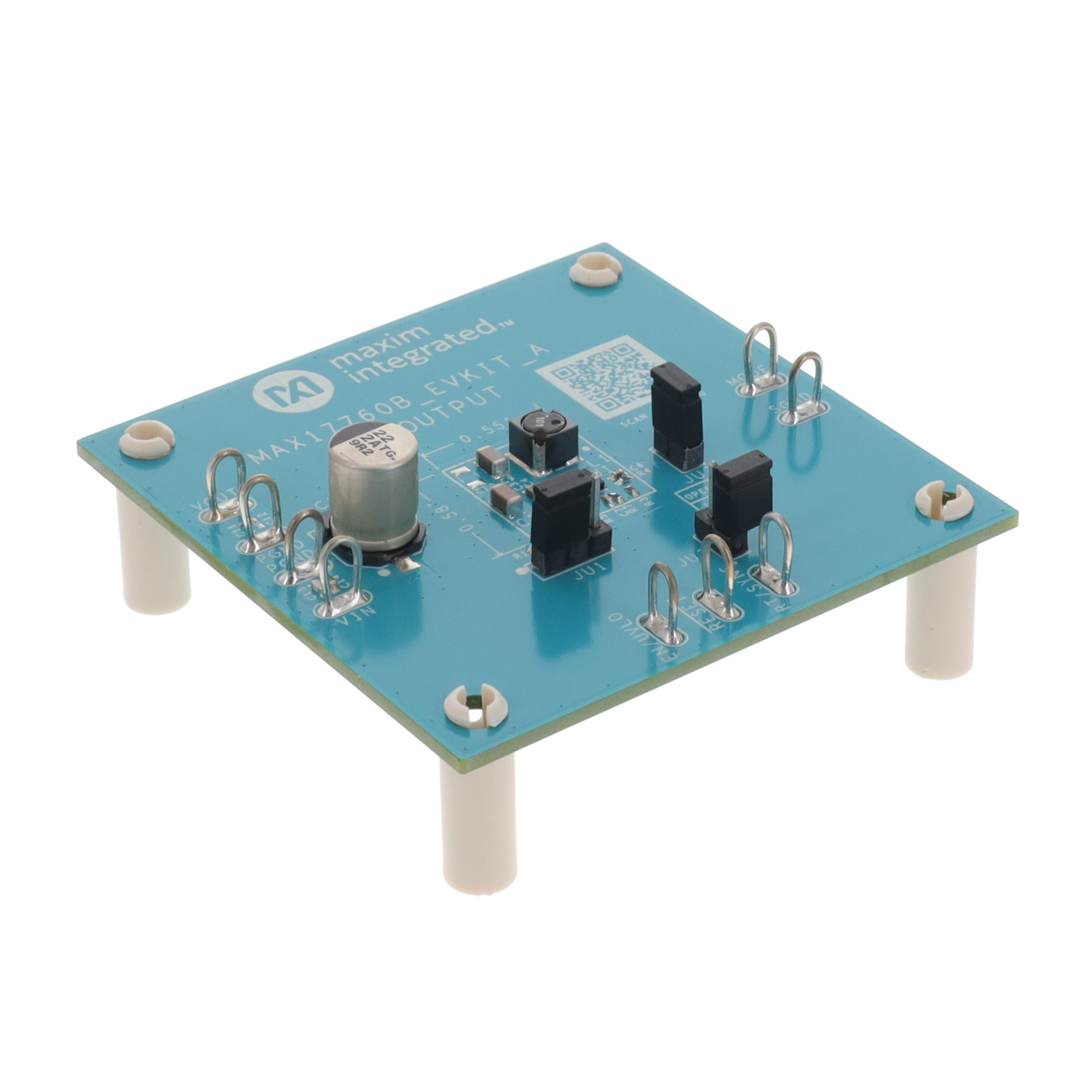

Analog Devices Inc./Maxim Integrated MAX17760BEVKIT#							300 mA						400 kHz				MAX17760	DC/DC Step Down	76 V	16 V	Non-Isolated	1	Buck	Fully Populated	12 V	Board(s)

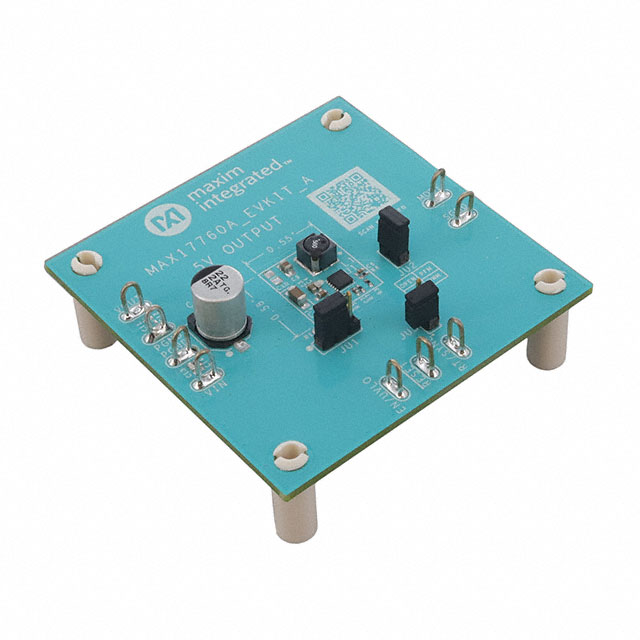

Analog Devices Inc./Maxim Integrated MAX17760AEVKIT#							300 mA						400 kHz				MAX17760	DC/DC Step Down	76 V	7 V	Non-Isolated	1	Buck	Fully Populated	5 V	Board(s)
Analog Devices Inc./Maxim Integrated MAX17760ATC+	66.88 V	76 V	12-TDFN (3x3)	4.5 V	Buck	12-WFDFN Exposed Pad	300 mA	Positive	Adjustable	Surface Mount	-40 °C	125 °C	200 kHz 300 kHz 400 kHz 600 kHz	1	0.8 V	Step-Down
