PVA6 Series

Manufacturer: E-Switch

Catalog

SWITCH PUSHBUTTON SPST 2A 36V

Part	Electrical Life	Mechanical Life	Current Rating (Amps)	Type	Switch Function	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Circuit	Mounting Type	Illumination Type, Color	Features	Illumination Voltage (Nominal) [Min]	Illumination Voltage (Nominal) [Max]	Panel Cutout Dimensions [diameter]	Actuator Marking	Voltage Rating - DC	Color - Actuator/Cap	Termination Style	Actuator Type	Illumination Voltage (Nominal)
E-Switch PVA6LRE21211	100000 Cycles	100000 Cycles	2 A	Anti-Vandal Illuminated	Off-On	IP67 - Dust Tight Waterproof	-20 ░C	70 °C	SPST	Panel Mount Front	LED Red	Fixed LED Ring	1.7 VDC	2.5 VDC	16 mm	No Marking	36 VDC	Clear	Solder Lug	Button Domed Round
E-Switch PVA6FEM4S11	100000 Cycles	100000 Cycles	2 A	Anti-Vandal Illuminated	Off-Mom	IP67 - Dust Tight Waterproof	-20 ░C	70 °C	SPST-NO	Panel Mount Snap-In	LED Red				16 mm		36 VDC	Silver		Button Flush Round	2 VDC
E-Switch PVA6LRE21131	100000 Cycles	100000 Cycles	2 A	Anti-Vandal Illuminated	Off-On	IP67 - Dust Tight Waterproof	-20 ░C	70 °C	SPST	Panel Mount Front	Green LED	Fixed LED Ring	2.8 VDC	3.7 VDC	16 mm	No Marking	36 VDC	Black	Solder Lug	Button Domed Round
E-Switch PVA6LRE212G1	100000 Cycles	100000 Cycles	2 A	Anti-Vandal Illuminated	Off-On	IP67 - Dust Tight Waterproof	-20 ░C	70 °C	SPST	Panel Mount Front	Green/Red LED	Fixed LED Ring	1.7 VDC 2.8 VDC	2.5 VDC 3.7 VDC	16 mm	No Marking	36 VDC	Clear	Solder Lug	Button Domed Round
E-Switch PVA6LRE21111	100000 Cycles	100000 Cycles	2 A	Anti-Vandal Illuminated	Off-On	IP67 - Dust Tight Waterproof	-20 ░C	70 °C	SPST	Panel Mount Front	LED Red	Fixed LED Ring	1.7 VDC	2.5 VDC	16 mm	No Marking	36 VDC	Black	Solder Lug	Button Domed Round
E-Switch PVA6RP24101	200000 Cycles	1000000 Cycles	2 A	Anti-Vandal Illuminated	Off-Mom	IP67 - Dust Tight Waterproof	-20 ░C	70 °C	SPST-NO	Panel Mount Front	LED White		2.8 VDC	3.7 VDC	16 mm	Power Symbol	36 VDC	Black	Solder Lug	Button Domed Round
E-Switch PVA6LREW1211			2 A	Anti-Vandal Illuminated	Off-On	IP67 - Dust Tight Waterproof	-20 ░C	70 °C	SPST	Panel Mount Front	LED Red				16 mm		36 VDC	Clear	Wire Leads	Button Round	3 VDC

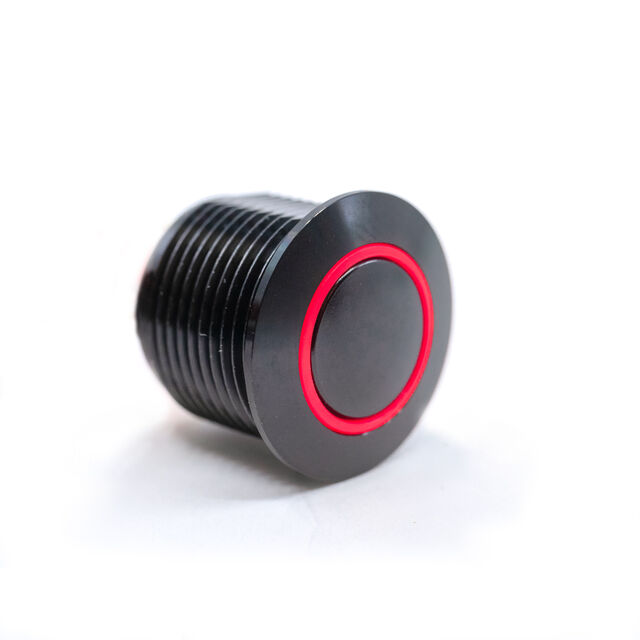

E-Switch PVA6RE24111	200000 Cycles	1000000 Cycles	2 A	Anti-Vandal Illuminated	Off-Mom	IP67 - Dust Tight Waterproof	-20 ░C	70 °C	SPST-NO	Panel Mount Front	LED Red	Fixed LED Ring	1.7 VDC	2.5 VDC	16 mm	No Marking	36 VDC	Black	Solder Lug	Button Domed Round
E-Switch PVA6LRPW1131			2 A	Anti-Vandal Illuminated	Off-On	IP67 - Dust Tight Waterproof	-20 ░C	70 °C	SPST	Panel Mount Front	Green LED				16 mm		36 VDC	Black	Wire Leads	Button Round	3 VDC
E-Switch PVA6RPW4241			2 A	Anti-Vandal Illuminated	Off-Mom	IP67 - Dust Tight Waterproof	-20 ░C	70 °C	SPST-NO	Panel Mount Front	Blue LED				16 mm		36 VDC	Clear	Wire Leads	Button Round	2.8 VDC
