FLS.01 Series
Manufacturer: LEMO
Beta
⌘K

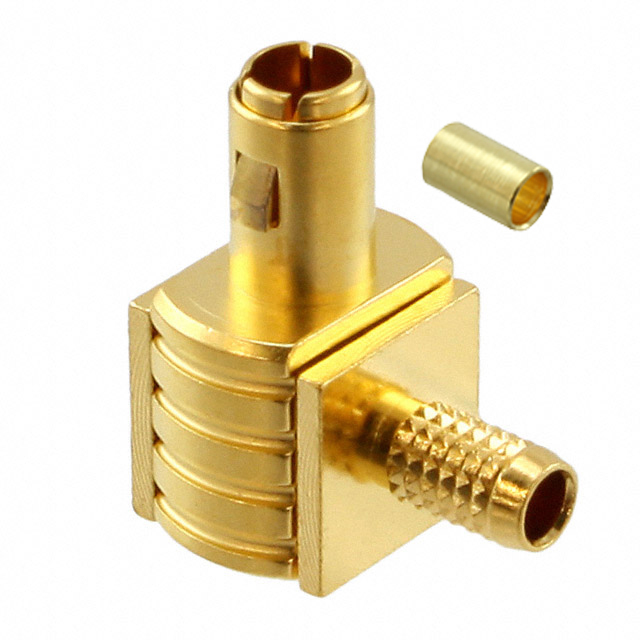

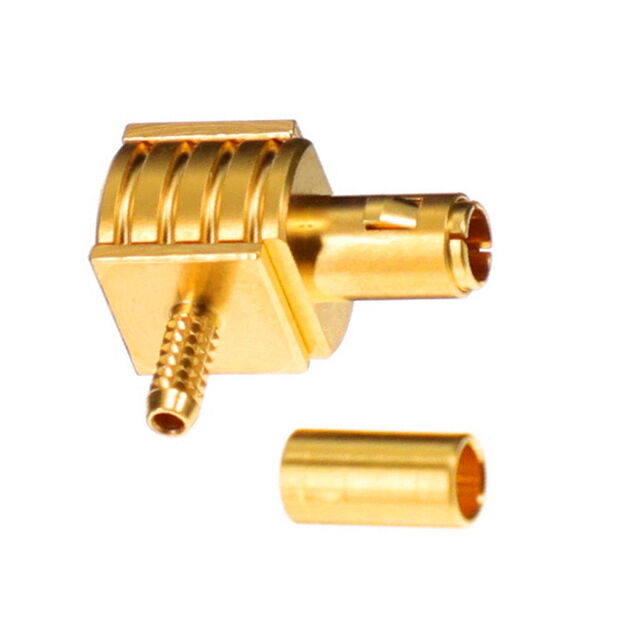

CONN MINI COAX PLUG R/A 50 OHM
| Part | Body Material | Center Contact Plating | Dielectric Material | Voltage Rating | Mating Cycles | Body Finish | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Ingress Protection | Connector Style | Center Contact Material | Fastening Type | Shield Termination | Cable Group | Impedance | Connector Type | Number of Ports | Housing Color | Contact Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Brass | Gold | Polyetheretherketone (PEEK) | 300 VDC | 1000 | Gold | -55 C | 230 °C | Free Hanging (In-Line) Right Angle | IP50 - Dust Protected | Miniature Coaxial | Brass | Snap-On | Crimp | 179B 187A 188A 316 RG-174 | 50 Ohms | Plug Male Pin | 1 | Gold | Solder | |
Brass | Gold | Polyetheretherketone (PEEK) | 300 VDC | 1000 | Gold | -55 C | 230 °C | Free Hanging (In-Line) Right Angle | IP50 - Dust Protected | Miniature Coaxial | Brass | Push-Pull | Crimp | 50 Ohms | Plug Male Pin | Gold | Solder |
