325-092 Series
Manufacturer: EDAC Inc.
Beta
⌘K

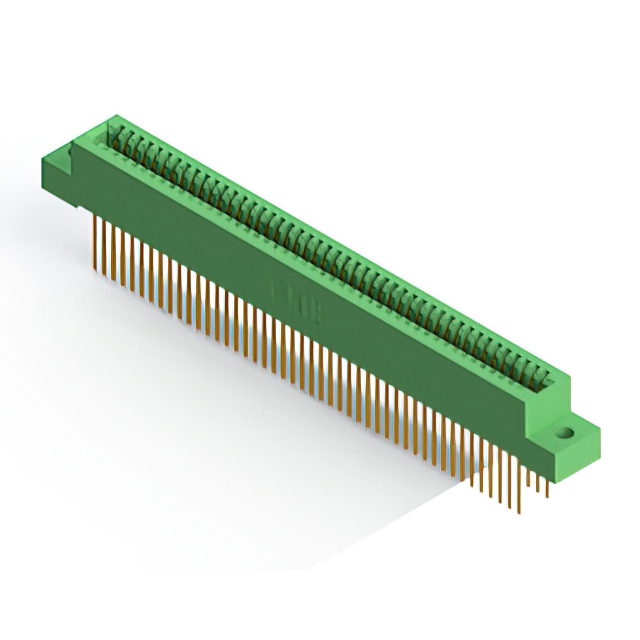

CONN EDGE DUAL FMALE 92POS 0.100
| Part | Termination Rows [custom] | Material - Insulation | Termination | Read Out | Card Type | Flange Feature | Color | Card Thickness | Card Thickness | Contact Type | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Pitch | Pitch | Operating Temperature [Min] | Operating Temperature [Max] | Gender | Mounting Type | Number of Positions | Number of Positions/Bay/Row | Number of Rows [custom] | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Solder | Dual | Non Specified - Dual Edge | 4-40 Flush Mount Threaded Insert Top Opening | Green | 3.18 mm | 0.125 in | Cantilever | Copper Alloy | 0.25 Ám | 10 Áin | Gold | 0.1 " | 2.54 mm | -65 ░C | 125 °C | Female | Through Hole | 92 | 46 | 2 | ||
EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Solder | Dual | Non Specified - Dual Edge | Flush Mount Top Opening Unthreaded | Green | 3.18 mm | 0.125 in | Cantilever | Copper Alloy | 0.25 Ám | 10 Áin | Gold | 0.1 " | 2.54 mm | -65 ░C | 125 °C | Female | Through Hole | 92 | 46 | 2 | 0.16 " | 4.06 mm |
EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Wire Wrap | Dual | Non Specified - Dual Edge | Flush Mount M3 Threaded Insert Top Opening | Green | 3.18 mm | 0.125 in | Cantilever | Copper Alloy | 0.25 Ám | 10 Áin | Gold | 0.1 " | 2.54 mm | -65 ░C | 125 °C | Female | Through Hole | 92 | 46 | 2 | ||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Wire Wrap | Dual | Non Specified - Dual Edge | Flush Mount Top Opening Unthreaded | Green | 3.18 mm | 0.125 in | Cantilever | Copper Alloy | 0.25 Ám | 10 Áin | Gold | 0.1 " | 2.54 mm | -65 ░C | 125 °C | Female | Through Hole | 92 | 46 | 2 | 0.16 " | 4.06 mm |
EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Solder | Dual | Non Specified - Dual Edge | Green | 3.18 mm | 0.125 in | Cantilever | Copper Alloy | 0.25 Ám | 10 Áin | Gold | 0.1 " | 2.54 mm | -65 ░C | 125 °C | Female | Through Hole | 92 | 46 | 2 |
