301A022 Series
Manufacturer: TE Connectivity Aerospace, Defense and Marine
Beta
⌘K

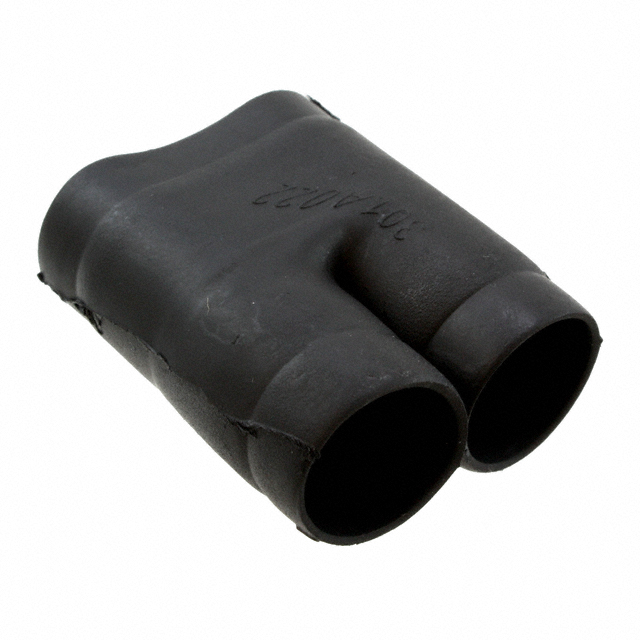

HEATSHRNK BOOT BRKOUT 2:1 T SZ22
| Part | Type | Shell Size - Insert | Large Recovered Length | Large Recovered Length | Material | Color | Total Length Recovered | Total Length Recovered | Large Diameter Supplied [diameter] | Large Diameter Supplied [diameter] | Small Diameter Recovered [diameter] | Small Diameter Recovered [diameter] | Features | Large Diameter Recovered [diameter] | Large Diameter Recovered [diameter] | Small Diameter Supplied [diameter] | Small Diameter Supplied [diameter] | Small Recovered Length | Small Recovered Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Aerospace, Defense and Marine | Boot Transition - Breakout 2:1 (T) | 22 | |||||||||||||||||
TE Connectivity Aerospace, Defense and Marine | Boot Transition - Breakout 2:1 (T) | 22 | |||||||||||||||||
 TE Connectivity Aerospace, Defense and Marine | Boot Transition - Breakout 2:1 (T) | 22 | 1.161 in | 29.49 mm | Polyolefin (PO) Semi-Rigid Irradiated | Black | 58.7 mm | 2.311 " | 0.52 in | 13.21 mm | 6.91 mm | 0.272 " | Flame Retardant Fluid Resistant Heat Resistant | 6.91 mm | 0.272 in | 0.52 in | 13.21 mm | 1.161 in | 29.49 mm |
TE Connectivity Aerospace, Defense and Marine | Boot Transition - Breakout 2:1 (T) | 22 | 1.161 in | 29.49 mm | Elastomer Semi-Rigid Irradiated | Black | 58.7 mm | 2.311 " | 0.52 in | 13.21 mm | 6.91 mm | 0.272 " | Abrasion Resistant Adhesive Coating Chemical Resistant Flame Retardant Fluid Resistant Heat Resistant Strain Resistant | 6.91 mm | 0.272 in | 0.52 in | 13.21 mm | 1.161 in | 29.49 mm |
TE Connectivity Aerospace, Defense and Marine | Boot Transition - Breakout 2:1 (T) | 22 | 1.161 in | 29.49 mm | Polyolefin (PO) Flexible Irradiated | Black | 58.7 mm | 2.311 " | 0.52 in | 13.21 mm | 6.91 mm | 0.272 " | Flame Retardant Fluid Resistant Heat Resistant | 6.91 mm | 0.272 in | 0.52 in | 13.21 mm | 1.161 in | 29.49 mm |
TE Connectivity Aerospace, Defense and Marine | Boot Transition - Breakout 2:1 (T) | 22 | 1.161 in | 29.49 mm | Fluoroelastomer (FKM) Flexible Irradiated | Black | 58.7 mm | 2.311 " | 0.52 in | 13.21 mm | 6.91 mm | 0.272 " | Flame Retardant Fluid Resistant Fuel Resistant Heat Resistant | 6.91 mm | 0.272 in | 0.52 in | 13.21 mm | 1.161 in | 29.49 mm |
TE Connectivity Aerospace, Defense and Marine | Boot Transition - Breakout 2:1 (T) | 22 | |||||||||||||||||
TE Connectivity Aerospace, Defense and Marine | Boot Transition - Breakout 2:1 (T) | 22 | 1.161 in | 29.49 mm | Polyolefin (PO) Flexible Irradiated | Black | 58.7 mm | 2.311 " | 0.52 in | 13.21 mm | 6.91 mm | 0.272 " | Flame Retardant Fluid Resistant Heat Resistant | 6.91 mm | 0.272 in | 0.52 in | 13.21 mm | 1.161 in | 29.49 mm |
TE Connectivity Aerospace, Defense and Marine | Boot Transition - Breakout 2:1 (T) | 22 | 1.161 in | 29.49 mm | Elastomer Semi-Rigid Irradiated | Black | 58.7 mm | 2.311 " | 0.52 in | 13.21 mm | 6.91 mm | 0.272 " | Abrasion Resistant Adhesive Coating Chemical Resistant Flame Retardant Fluid Resistant Heat Resistant Strain Resistant | 6.91 mm | 0.272 in | 0.52 in | 13.21 mm | 1.161 in | 29.49 mm |
TE Connectivity Aerospace, Defense and Marine | Boot Transition - Breakout 2:1 (T) | 22 | 1.161 in | 29.49 mm | Halogen Free Irradiated Polyolefin (PO) Semi-Flexible | Black | 58.7 mm | 2.311 " | 0.52 in | 13.21 mm | 6.91 mm | 0.272 " | Adhesive Coating Flame Retardant Fluid Resistant Mechanical Resistant Strain Resistant | 6.91 mm | 0.272 in | 0.52 in | 13.21 mm | 1.161 in | 29.49 mm |
