194269 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

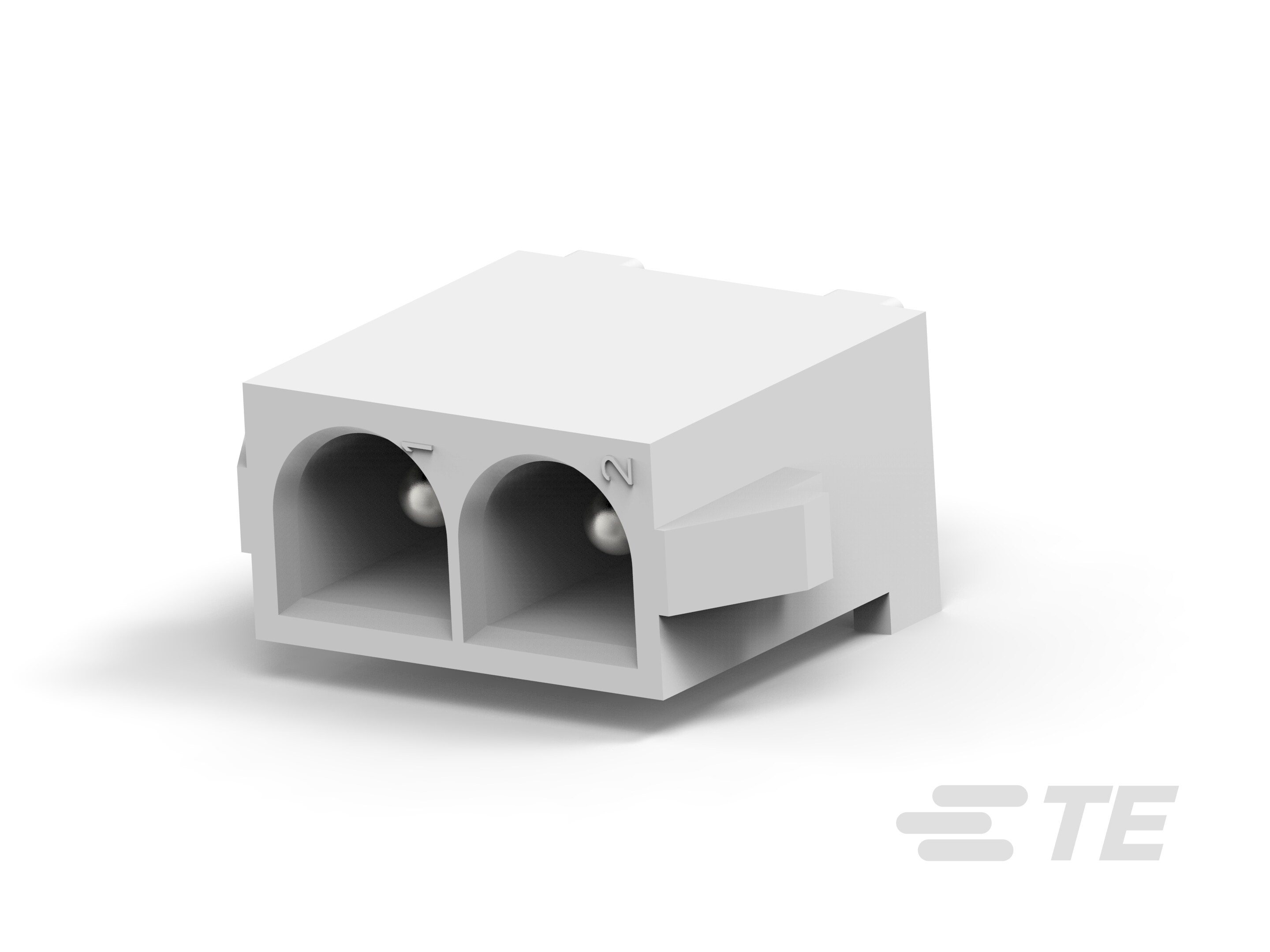

HDR ASSY,MNL,2 POS,LUBRICATED
| Part | Number of Rows | Insulation Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Insulation Height | Insulation Height | Features | Mounting Type | Contact Shape | Contact Material | Shrouding | Contact Type | Pitch - Mating | Pitch - Mating | Number of Positions | Termination | Applications | Contact Finish - Mating | Material Flammability Rating | Contact Length - Post | Contact Length - Post | Number of Positions Loaded | Fastening Type | Connector Type | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 1 | Nylon Polyamide (PA) | 196.9 µin | 5 µm | 0.55 in | 13.97 mm | Board Guide | Through Hole | Circular | Copper Alloy | Shrouded - 4 Wall | Male Pin | 6.35 mm | 0.25 in | 2 | Solder | General Purpose | Silver | UL94 V-0 | 0.145 in | 3.68 mm | All | Locking Ramp | Header | Board to Board Cable |
TE Connectivity Raychem Cable Protection | 1 | Nylon Polyamide (PA) | 196.9 µin | 5 µm | 0.55 in | 13.97 mm | Board Guide | Through Hole | Circular | Copper Alloy | Shrouded - 4 Wall | Male Pin | 6.35 mm | 0.25 in | 2 | Solder | General Purpose | Silver | UL94 V-0 | 0.17 in | 4.32 mm | All | Locking Ramp | Header | Board to Board Cable |
