PG1101 Series
Manufacturer: Stanley Electric Co
Catalog

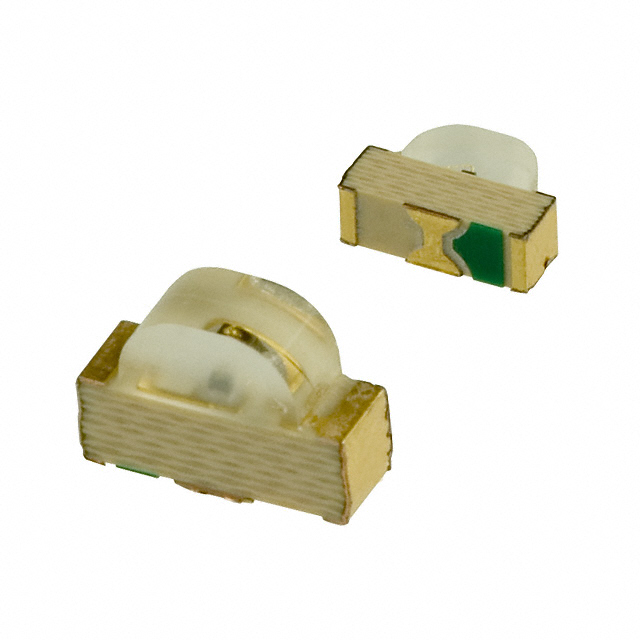

LED GREEN CLEAR 2SMD R/A
| Part | Color | Size / Dimension [y] | Size / Dimension [x] | Height (Max) [Max] [z] | Current - Test | Supplier Device Package | Wavelength - Peak | Viewing Angle | Package / Case | Lens Color | Configuration | Mounting Type | Wavelength - Dominant | Lens Transparency | Voltage - Forward (Vf) (Typ) | Lens Style | Lens Size [x] | Lens Size [y] | Millicandela Rating | Lens Size | Height (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Stanley Electric Co | Green | 2 mm | 3 mm | 1 mm | 20 mA | 2-SMD | 560 nm | 130 ° 149 ° | 2-SMD No Lead | Colorless | Standard | Surface Mount Right Angle | 567 nm | Clear | 2.1 V | Rectangle with Domed Top | 2 mm | 1 mm | 5.2 mcd | ||
 Stanley Electric Co | Green | 1.5 mm | 3 mm | 20 mA | 3216 Type | 560 nm | 137 ° 144 ° | 1206 (3016 Metric) | Colorless | Standard | Surface Mount | 567 nm | Clear | 2.1 V | Square with Flat Top | 4.8 mcd | 1.5 mm | 1.9 mm |
