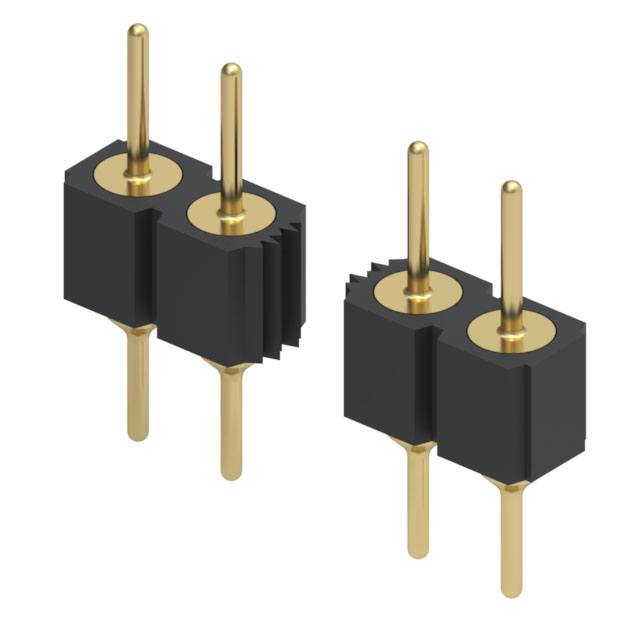

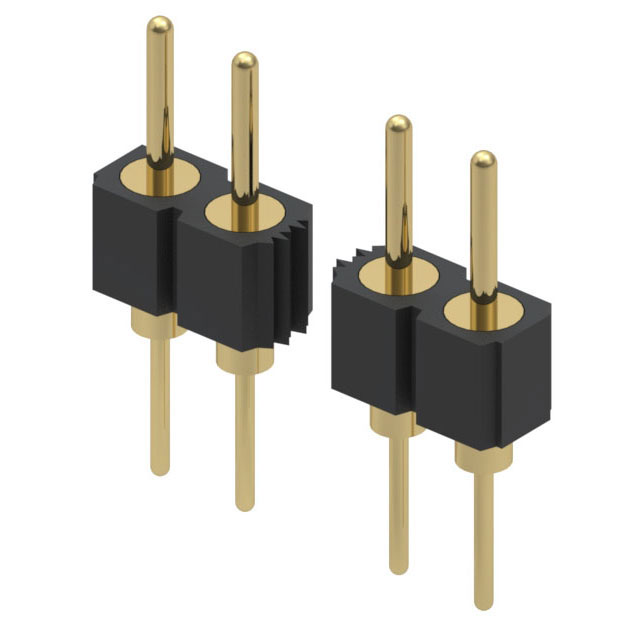

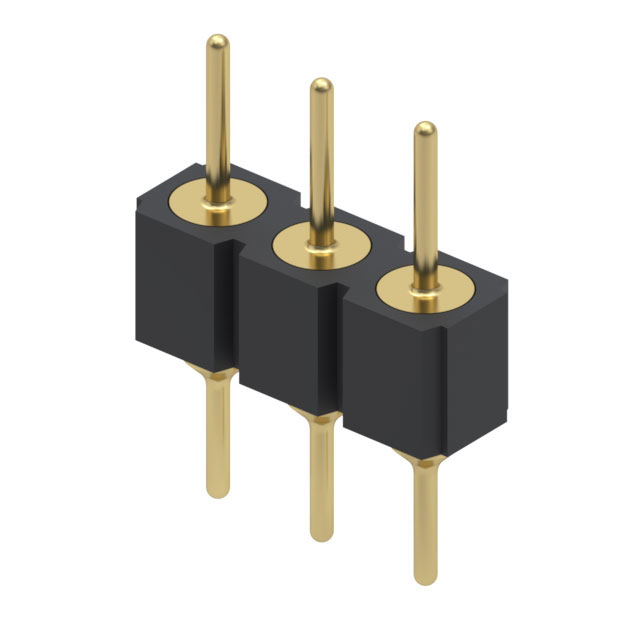

350-10 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K
CONN HEADER VERT 9POS 2.54MM
| Part | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Termination | Number of Positions Loaded | Contact Material | Contact Finish - Mating | Overall Contact Length | Overall Contact Length | Contact Length - Post [custom] | Contact Length - Post | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Shrouding | Number of Rows | Mounting Type | Contact Type | Contact Shape | Fastening Type | Connector Type | Contact Length - Mating | Contact Length - Mating | Number of Positions | Contact Finish - Post | Pitch - Mating | Pitch - Mating | Insulation Material | Insulation Color | Contact Length - Post [x] | Overall Contact Length [x] | Overall Contact Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 0.25 µm | 10 µin | Solder | All | Brass Alloy | Gold | 10 mm | 0.394 in | 0.11 in | 2.79 mm | 10 Áin | 0.25 çm | Unshrouded | 1 | Through Hole | Male Pin | Circular | Push-Pull | Header | 0.142 in | 3.61 mm | 9 | Gold | 0.1 " | 2.54 mm | Polycyclohexylenedimethylene Terephthalate (PCT) | Black | |||
 Mill-Max Manufacturing Corp. | 0.25 µm | 10 µin | Solder | All | Brass Alloy | Gold | 4 mm | 10 Áin | 0.25 çm | Unshrouded | 1 | Through Hole | Male Pin | Circular | Push-Pull | Header | 0.166 in | 4.22 mm | 8 | Gold | 0.1 " | 2.54 mm | Polycyclohexylenedimethylene Terephthalate (PCT) | Black | 0.157 in | 0.477 in | 12.12 mm | |||
 Mill-Max Manufacturing Corp. | 0.25 µm | 10 µin | Solder | All | Brass Alloy | Gold | 10 Áin | 0.25 çm | Unshrouded | 1 | Surface Mount | Male Pin | Circular | Push-Pull | Header | 0.142 in | 3.61 mm | 30 | Gold | 0.1 " | 2.54 mm | Polycyclohexylenedimethylene Terephthalate (PCT) | Black | |||||||
Mill-Max Manufacturing Corp. | 0.25 µm | 10 µin | Solder | All | Brass Alloy | Gold | 4 mm | 10 Áin | 0.25 çm | Unshrouded | 1 | Through Hole | Male Pin | Circular | Push-Pull | Header | 0.166 in | 4.22 mm | 15 | Gold | 0.1 " | 2.54 mm | Polycyclohexylenedimethylene Terephthalate (PCT) | Black | 0.157 in | 0.477 in | 12.12 mm | |||
Mill-Max Manufacturing Corp. | 0.25 µm | 10 µin | Solder | All | Brass Alloy | Gold | 10 Áin | 0.25 çm | Unshrouded | 1 | Surface Mount | Male Pin | Circular | Push-Pull | Header | 0.142 in | 3.61 mm | 38 | Gold | 0.1 " | 2.54 mm | Polycyclohexylenedimethylene Terephthalate (PCT) | Black | |||||||
 Mill-Max Manufacturing Corp. | 0.25 µm | 10 µin | Solder | All | Brass Alloy | Gold | 10 mm | 0.394 in | 0.11 in | 2.79 mm | 10 Áin | 0.25 çm | Unshrouded | 1 | Through Hole | Male Pin | Circular | Push-Pull | Header | 0.142 in | 3.61 mm | Gold | 0.1 " | 2.54 mm | Polycyclohexylenedimethylene Terephthalate (PCT) | Black | ||||
Mill-Max Manufacturing Corp. | 0.25 µm | 10 µin | Solder | All | Brass Alloy | Gold | 4 mm | 10 Áin | 0.25 çm | Unshrouded | 1 | Through Hole | Male Pin | Circular | Push-Pull | Header | 0.166 in | 4.22 mm | 54 | Gold | 0.1 " | 2.54 mm | Polycyclohexylenedimethylene Terephthalate (PCT) | Black | 0.157 in | 0.477 in | 12.12 mm | |||
Mill-Max Manufacturing Corp. | 0.25 µm | 10 µin | Solder | All | Brass Alloy | Gold | 10 Áin | 0.25 çm | Unshrouded | 1 | Surface Mount | Male Pin | Circular | Push-Pull | Header | 0.142 in | 3.61 mm | 18 | Gold | 0.1 " | 2.54 mm | Polycyclohexylenedimethylene Terephthalate (PCT) | Black | |||||||
Mill-Max Manufacturing Corp. | 0.25 µm | 10 µin | Solder | All | Brass Alloy | Gold | 4 mm | 10 Áin | 0.25 çm | Unshrouded | 1 | Through Hole | Male Pin | Circular | Push-Pull | Header | 0.166 in | 4.22 mm | 16 | Gold | 0.1 " | 2.54 mm | Polycyclohexylenedimethylene Terephthalate (PCT) | Black | 0.157 in | 0.477 in | 12.12 mm | |||
Mill-Max Manufacturing Corp. | 0.25 µm | 10 µin | Solder | All | Brass Alloy | Gold | 10 mm | 0.394 in | 0.11 in | 2.79 mm | 10 Áin | 0.25 çm | Unshrouded | 1 | Through Hole | Male Pin | Circular | Push-Pull | Header | 0.142 in | 3.61 mm | 24 | Gold | 0.1 " | 2.54 mm | Polycyclohexylenedimethylene Terephthalate (PCT) | Black |
