S08B-XAS Series
Manufacturer: JST Sales America Inc.
Beta
⌘K

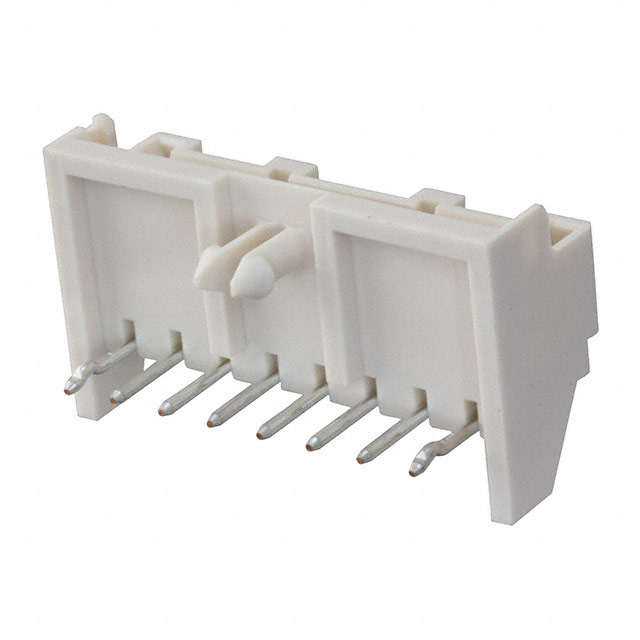

CONN HEADER R/A 8POS 2.5MM
| Part | Insulation Color | Pitch - Mating | Pitch - Mating | Style | Termination | Number of Positions Loaded | Contact Length - Post [x] | Contact Length - Post [x] | Fastening Type | Number of Positions | Shrouding | Contact Type | Material Flammability Rating | Connector Type | Contact Shape | Voltage Rating | Insulation Material | Number of Rows | Mounting Type | Contact Finish - Post | Insulation Height [z] | Insulation Height | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Natural | 2.5 mm | 0.098 in | Board to Cable/Wire | Solder | All | 0.126 " | 3.2 mm | Locking Ramp | 8 | Shrouded - 4 Wall | Male Pin | UL94 V-0 | Header | Circular | 250 V | Glass Filled Nylon 6/6 Polyamide (PA66) | 1 | Right Angle Through Hole | Tin | 0.299 " | 7.6 mm | Copper Alloy | 85 °C | -25 °C | 3 A | |
 JST Sales America Inc. | Natural | 2.5 mm | 0.098 in | Board to Cable/Wire | Press-Fit Solder | All | 0.126 " | 3.2 mm | Locking Ramp | 8 | Shrouded - 4 Wall | Male Pin | UL94 V-0 | Header | Circular | 250 V | Glass Filled Nylon 6/6 Polyamide (PA66) | 1 | Right Angle Through Hole | Tin | 0.299 " | 7.6 mm | Copper Alloy | 85 °C | -25 °C | 3 A | Board Lock |
