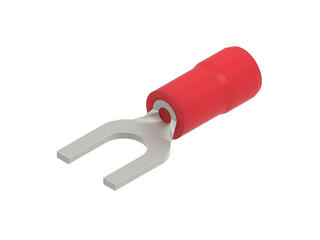

Avikrimp Block Spade Terminal for 22-18 AWG Wire, Stud Size 6 (M3.5), Width 7.39mm, Mylar Tape Carrier
Avikrimp Block Spade Terminal for 22-18 AWG Wire, Stud Size 6 (M3.5), Width 7.39mm, Mylar Tape Carrier
Avikrimp Block Spade Terminal for 22-18 AWG Wire, Stud Size 6 (M3.5), Width 7.39mm, Mylar Tape Carrier
| Part | Color | Tongue Inside Opening [custom] | Tongue Inside Opening [custom] | Material - Insulation | Mounting Type | Contact Finish | Contact Material | Stud/Tab Size | Wire Gauge [Max] | Wire Gauge [Min] | Terminal Type | Termination | Insulation Diameter [diameter] | Insulation Diameter [diameter] | Width - Outer Edges [x] | Width - Outer Edges [x] | Length - Overall | Length - Overall | Length - Ring Center to Termination [x] | Length - Ring Center to Termination [x] | Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Red | 0.173 in | 4.39 mm | Nylon Polyamide (PA) | Free Hanging (In-Line) | Tin | Copper | 8 Stud | 22 AWG | 17.5 AWG | Standard | Crimp | 3.56 mm | 0.14 in | 0.291 in | 7.39 mm | 19.94 mm | 0.785 in | 5.26 mm | 0.207 in | Insulated |
