095003 Series
Manufacturer: Molex
Beta
⌘K
CONN MOD JACK 4P4C VERT UNSHLD
| Part | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Termination | Ratings | Tab Direction | Shielding | Number of Ports | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows | Housing Material | Orientation | Number of Positions/Contacts | Mounting Type | LED Color | Connector Type | Contact Material | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

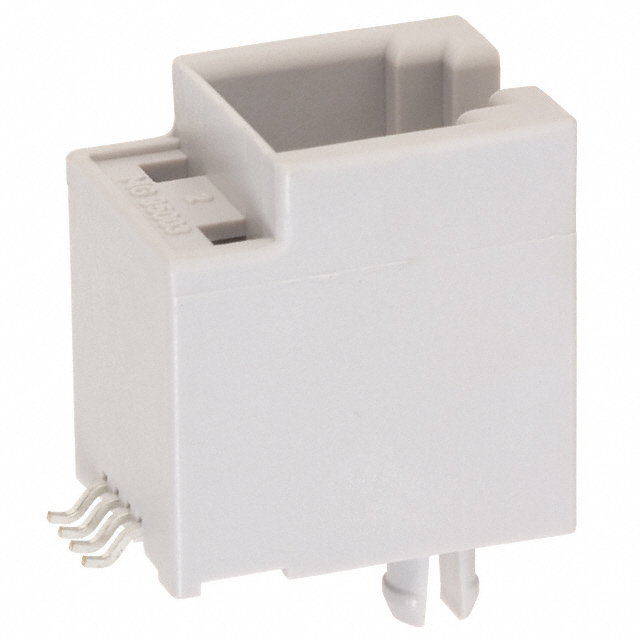

 Molex | Gold | 50 µin | 1.27 µm | Solder | Cat3 | User Selectable | Unshielded | 1 | -40 °C | 80 C | 1 | Thermoplastic | Vertical | 4p4c | Surface Mount | Does Not Contain LED | Jack | Phosphor Bronze | |
Molex | |||||||||||||||||||

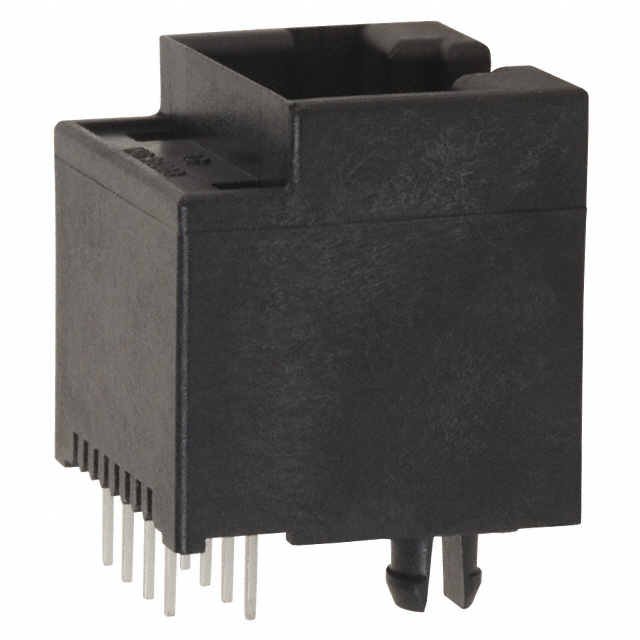

 Molex | Gold | 50 µin | 1.27 µm | Solder | Cat3 | User Selectable | Unshielded | 1 | -40 °C | 80 C | 1 | Vertical | 8p8c (RJ45 Ethernet) | Through Hole | Does Not Contain LED | Jack | Phosphor Bronze | Board Lock Keyed | |

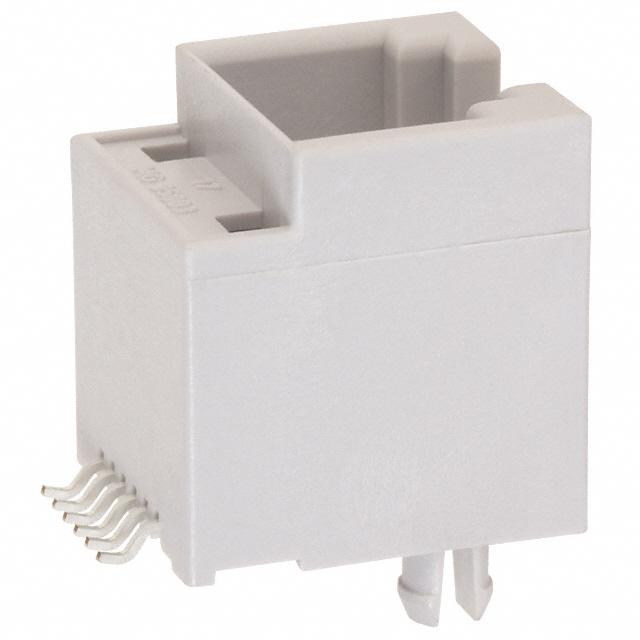

 Molex | Gold | 50 µin | 1.27 µm | Solder | Cat3 | User Selectable | Unshielded | 1 | -40 °C | 80 C | 1 | Thermoplastic | Vertical | 6p6c (RJ11 RJ12 RJ14 RJ25) | Surface Mount | Does Not Contain LED | Jack | Phosphor Bronze | |

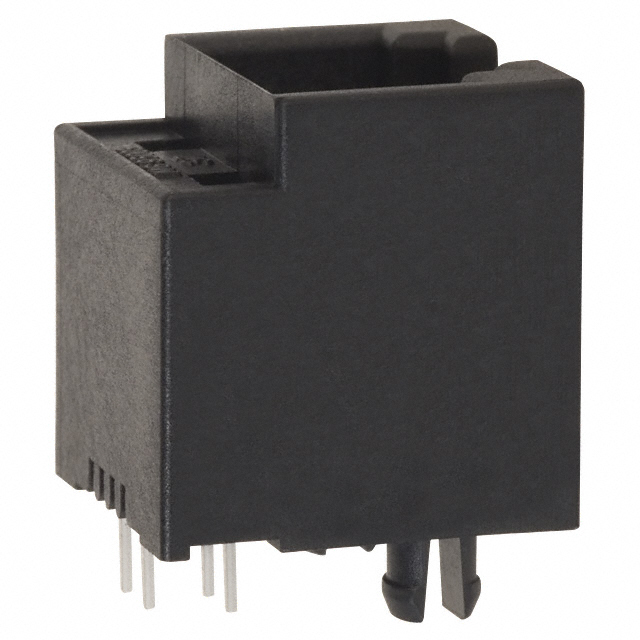

 Molex | Gold | 50 µin | 1.27 µm | Solder | Cat3 | User Selectable | Unshielded | 1 | -40 °C | 80 C | 1 | Vertical | 6p4c | Through Hole | Does Not Contain LED | Jack | Phosphor Bronze | ||
Molex | Gold | 50 µin | 1.27 µm | Solder | Cat3 | User Selectable | Unshielded | 1 | -40 °C | 80 C | 1 | Vertical | 4p4c | Through Hole | Does Not Contain LED | Jack | Phosphor Bronze |
