GRPB051 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

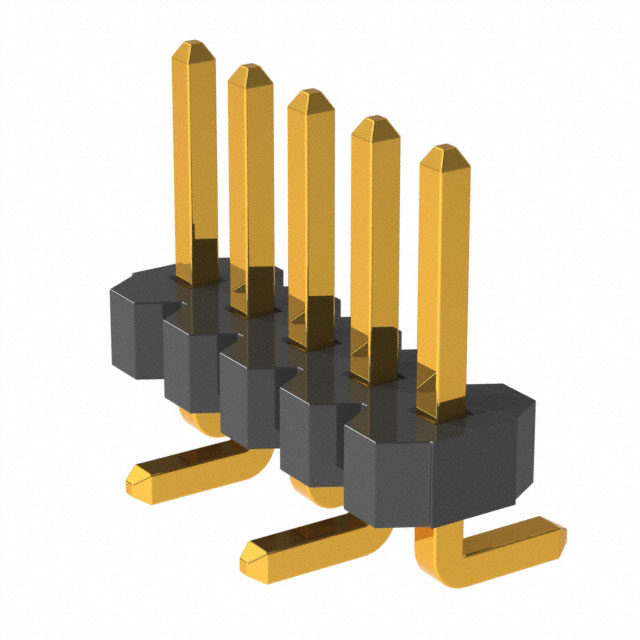

CONN HEADER SMD 5POS 1.27MM
| Part | Contact Finish Thickness - Post | Mounting Type | Termination | Number of Rows | Contact Finish - Post | Connector Type | Contact Finish - Mating | Contact Shape | Fastening Type | Insulation Material | Contact Type | Number of Positions | Number of Positions Loaded | Contact Material | Contact Length - Mating | Contact Length - Mating | Shrouding | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness - Mating | Style | Material Flammability Rating | Insulation Height [z] | Insulation Height [z] | Pitch - Mating | Pitch - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Flash | Surface Mount | Solder | 1 | Gold | Header | Gold | Square | Push-Pull | Nylon 9T Polyamide (PA9T) | Male Pin | 5 | All | Brass | 3 mm | 0.118 in | Unshrouded | -40 C | 105 ░C | Flash | Board to Board Cable | UL94 V-0 | 1 mm | 0.039 in | 1.27 mm | 0.05 in |
