857-084 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 84POS 0.156

...

Part	Material - Insulation	Termination Rows [custom]	Mounting Type	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions/Bay/Row	Pitch	Pitch	Contact Type	Color	Gender	Contact Finish	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Card Type	Number of Positions [custom]	Number of Rows [custom]	Card Thickness [Max]	Card Thickness [Min]	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Read Out	Features

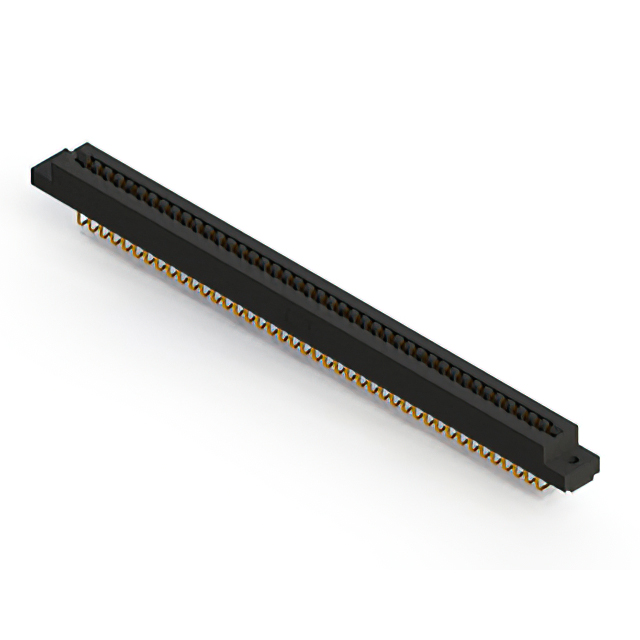

EDAC Inc. 857-084-558-202	Polyphenylene Sulfide (PPS)	2	Right Angle Through Hole	Solder	125 °C	-40 C	42	3.96 mm	0.156 in	Semi Bellows	Black	Female	Gold	Copper Alloy	0.25 Ám	10 Áin	Non Specified - Dual Edge	84	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "	Single
EDAC Inc. 857-084-542-212	Polyphenylene Sulfide (PPS)	2	Through Hole	Wire Wrap	125 °C	-40 C	42	3.96 mm	0.156 in	Semi Bellows	Black	Female	Gold	Copper Alloy	0.25 Ám	10 Áin	Non Specified - Dual Edge	84	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Side Mount Opening Unthreaded	3.25 mm	0.128 "	Dual
EDAC Inc. 857-084-555-203	Polyphenylene Sulfide (PPS)	2	Board Edge Straddle Mount	Solder	125 °C	-40 C	42	3.96 mm	0.156 in	Semi Bellows	Black	Female	Gold	Copper Alloy	0.25 Ám	10 Áin	Non Specified - Dual Edge	84	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Floating Bobbin Flush Mount	2.95 mm	0.116 "	Dual	Card Extender

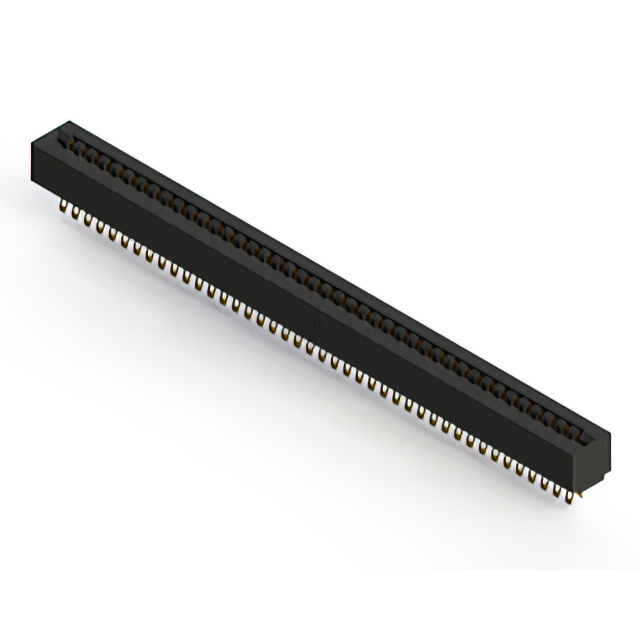

EDAC Inc. 857-084-555-201	Polyphenylene Sulfide (PPS)	2	Board Edge Straddle Mount	Solder	125 °C	-40 C	42	3.96 mm	0.156 in	Semi Bellows	Black	Female	Gold	Copper Alloy	0.25 Ám	10 Áin	Non Specified - Dual Edge	84	2	0.07 in 1.78 mm	0.054 in 1.37 mm				Dual	Card Extender
EDAC Inc. 857-084-460-208	Polyphenylene Sulfide (PPS)	2	Board Edge Straddle Mount	Solder	125 °C	-40 C	42	3.96 mm	0.156 in	Semi Bellows	Black	Female	Tin	Copper Alloy			Non Specified - Dual Edge	84	2	0.07 in 1.78 mm	0.054 in 1.37 mm	4-40 Flush Mount Threaded Insert Top Opening			Dual	Card Extender

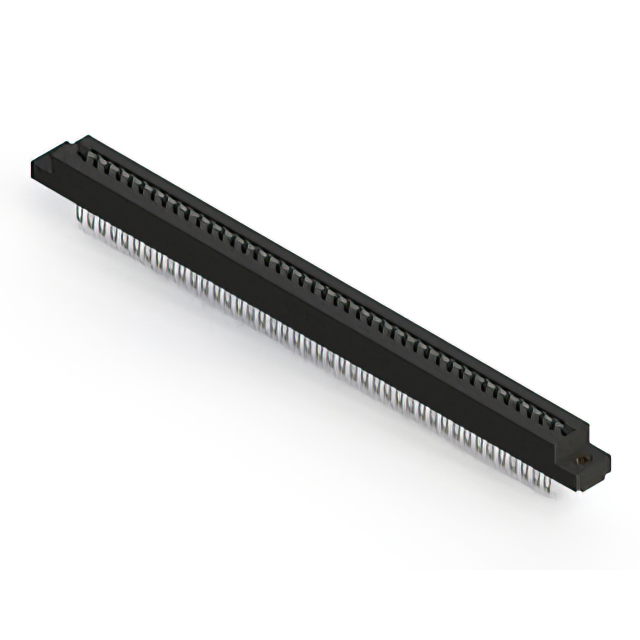

EDAC Inc. 857-084-400-207	Polyphenylene Sulfide (PPS)	2	Through Hole	Solder Eyelet(s)	125 °C	-40 C	42	3.96 mm	0.156 in	Semi Bellows	Black	Female	Tin	Copper Alloy			Non Specified - Dual Edge	84	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Flush Mount M3 Threaded Insert Top Opening			Dual
EDAC Inc. 857-084-540-212	Polyphenylene Sulfide (PPS)	2	Through Hole	Wire Wrap	125 °C	-40 C	42	3.96 mm	0.156 in	Semi Bellows	Black	Female	Gold	Copper Alloy	0.25 Ám	10 Áin	Non Specified - Dual Edge	84	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Side Mount Opening Unthreaded	3.25 mm	0.128 "	Dual
EDAC Inc. 857-084-455-212	Polyphenylene Sulfide (PPS)	2	Board Edge Straddle Mount	Solder	125 °C	-40 C	42	3.96 mm	0.156 in	Semi Bellows	Black	Female	Tin	Copper Alloy			Non Specified - Dual Edge	84	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Side Mount Opening Unthreaded	3.25 mm	0.128 "	Dual	Card Extender

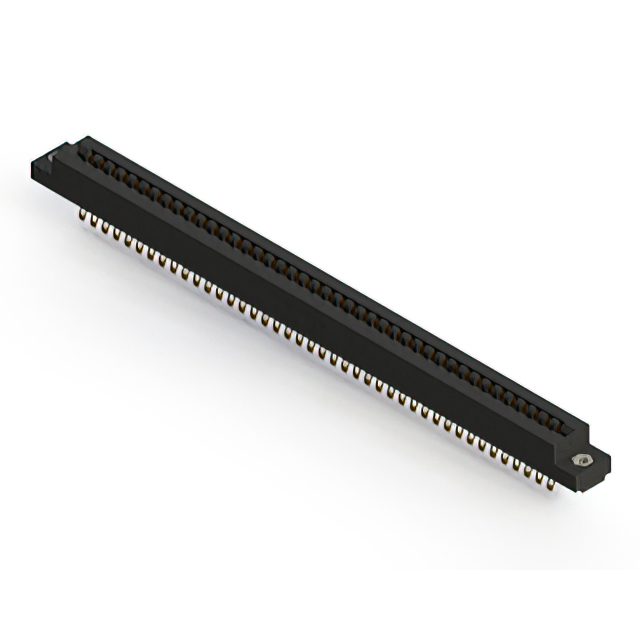

EDAC Inc. 857-084-555-208	Polyphenylene Sulfide (PPS)	2	Board Edge Straddle Mount	Solder	125 °C	-40 C	42	3.96 mm	0.156 in	Semi Bellows	Black	Female	Gold	Copper Alloy	0.25 Ám	10 Áin	Non Specified - Dual Edge	84	2	0.07 in 1.78 mm	0.054 in 1.37 mm	4-40 Flush Mount Threaded Insert Top Opening			Dual	Card Extender
EDAC Inc. 857-084-540-203	Polyphenylene Sulfide (PPS)	2	Through Hole	Wire Wrap	125 °C	-40 C	42	3.96 mm	0.156 in	Semi Bellows	Black	Female	Gold	Copper Alloy	0.25 Ám	10 Áin	Non Specified - Dual Edge	84	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Floating Bobbin Flush Mount	2.95 mm	0.116 "	Dual
