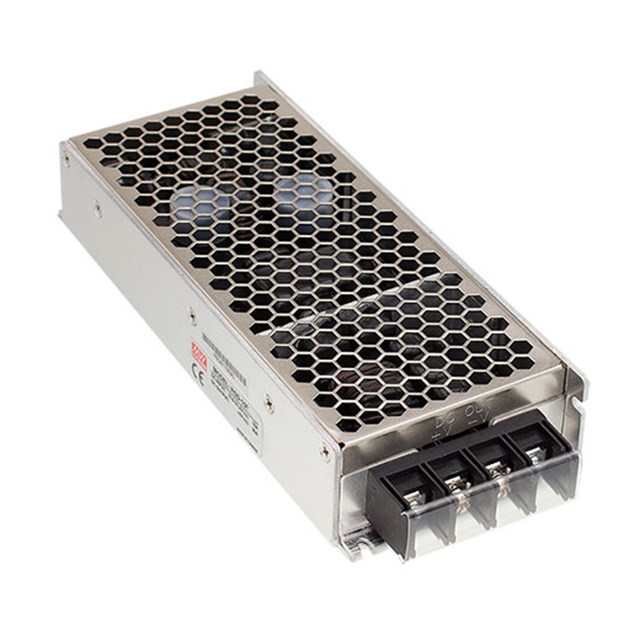

RSD-150B Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
DC/DC CONVERTER 24V 151W
| Part | Number of Outputs | Efficiency | Voltage - Input (Max) [Max] | Applications | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Approval Agency | Voltage - Output 1 | Type | Current - Output (Max) [Max] | Mounting Type | Power (Watts) | Voltage - Isolation | Voltage - Input (Min) [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | 1 | 90 % | 31.2 V | ITE (Commercial) Railway | 3.03 in | 189 mm | 77 mm | 7.44 in | 1.42 " | 36 mm | CE | 24 V | Enclosed | 6.3 A | Chassis Mount | 151 W | 4000 V | 16.8 V |
MEAN WELL USA Inc. | 1 | 90 % | 31.2 V | ITE (Commercial) Railway | 3.03 in | 189 mm | 77 mm | 7.44 in | 1.42 " | 36 mm | CE | 12 V | Enclosed | 12.5 A | Chassis Mount | 150 W | 4000 V | 16.8 V |
MEAN WELL USA Inc. | 1 | 89 % | 31.2 V | ITE (Commercial) Railway | 3.03 in | 189 mm | 77 mm | 7.44 in | 1.42 " | 36 mm | CE | 5 V | Enclosed | 30 A | Chassis Mount | 150 W | 4000 V | 16.8 V |
