HSMR Series
Manufacturer: Broadcom Limited
Beta
⌘K
LED BLUE TOP MNT
| Part | Supplier Device Package | Color | Height (Max) [z] | Viewing Angle | Lens Style | Current - Test | Configuration | Wavelength - Peak | Voltage - Forward (Vf) (Typ) | Size / Dimension [y] | Size / Dimension [x] | Lens Transparency | Millicandela Rating | Wavelength - Dominant | Package / Case | Lens Size [y] | Lens Size [x] | Mounting Type | Lens Color | Package / Case | Lens Size [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Broadcom Limited | |||||||||||||||||||||
 Broadcom Limited | Chip LED | Blue | 1.1 mm | 155 ° | Rectangle with Flat Top | 20 mA | Standard | 469 nm | 3.4 V | 1.6 mm | 3.2 mm | Diffused | 55 mcd | 473 nm | 1206 (3216 Metric) | 1.6 mm | 2 mm | Surface Mount | White | ||

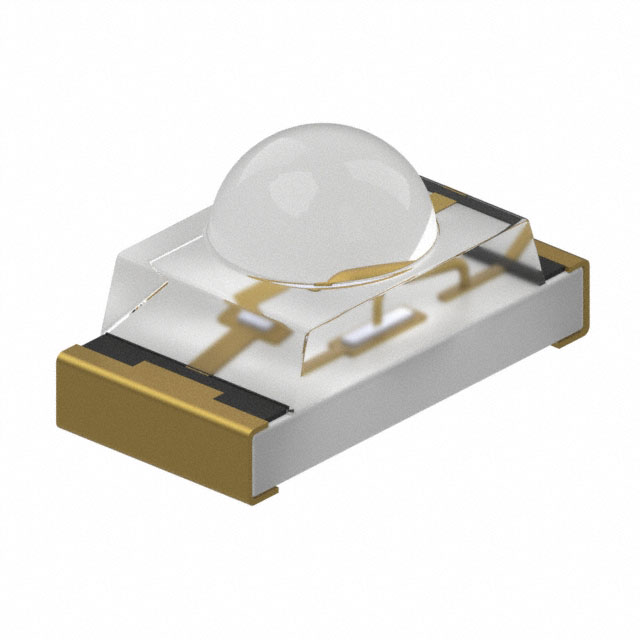

 Broadcom Limited | Blue | 1.08 mm | 50 ° | Round with Domed Top | 20 mA | Standard | 469 nm | 3 V | 0.8 mm | 1.6 mm | 653 mcd | 473 nm | 0603 | Surface Mount | 1608 Metric | 0.7 mm |
