KTPS90 Series

Catalog

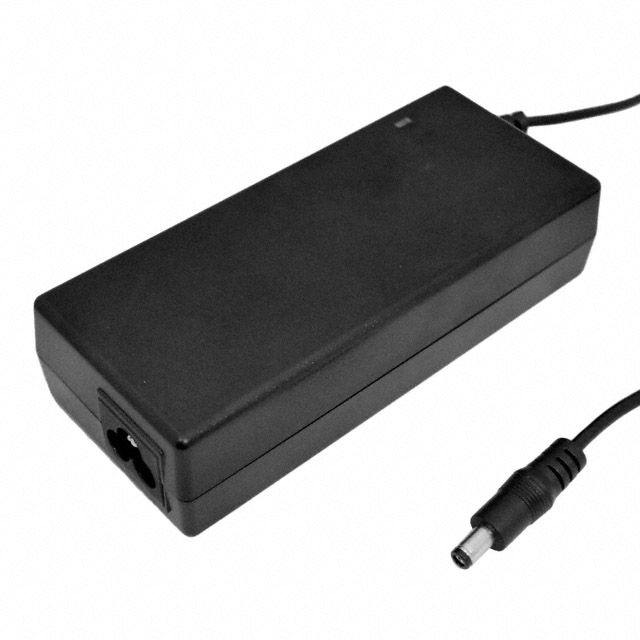

AC/DC DESKTOP ADAPTER 12V 90W

Part	Weight [custom]	Weight [custom]	Voltage - Output	Current - Output (Max) [Max]	Form	Applications	Operating Temperature [Max]	Power (Watts)	Approval Agency	Cord Length	Cord Length	Polarization	Input Connector	Standard Number	Input Type	Output Connector	Output Connector [diameter]	Output Connector [x]	Efficiency	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Region Utilized	Voltage - Input [Min]	Voltage - Input [Max]	Current - Output (Max)
Volgen + Furuno KTPS90-1207-P1	415.04 g	0.915 lb	12 V	7 A	Desktop (Class I)	ITE (Commercial)	40 °C	90 W	IEC	1.5 m	59 in	Positive Center	IEC 320-C6	62368-1	Cord (Sold Separately)	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	Level VI	1.42 "	139 mm	5.47 "	2.4 in	36 mm	61 mm	International	100 VAC	240 VAC
Volgen + Furuno KTPS90-2437-P1	415.04 g	0.915 lb	24 V	3.75 A	Desktop (Class I)	ITE (Commercial)	40 °C	90 W	IEC	1.5 m	59 in	Positive Center	IEC 320-C6	62368-1	Cord (Sold Separately)	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	Level VI	1.42 "	139 mm	5.47 "	2.4 in	36 mm	61 mm	International	100 VAC	240 VAC
Volgen + Furuno KTPS90-1805	415.04 g	0.915 lb	18 V		Desktop (Class I)	ITE (Commercial)	40 °C	90 W	CB CE cUL GS PSE UL	1.5 m	59 in	Positive Center	IEC 320-C6		Cord (Sold Separately)	Barrel Plug	2.5 mm 5.5 mm	9.5 mm	Level VI	1.42 "	139 mm	5.47 "	2.4 in	36 mm	61 mm	International	100 VAC	240 VAC	5 A
Volgen + Furuno KTPS90-1947	415.04 g	0.915 lb	19 V		Desktop (Class I)	ITE (Commercial)	40 °C	90 W	CB CE cUL GS PSE UL	1.5 m	59 in	Positive Center	IEC 320-C6		Cord (Sold Separately)	Barrel Plug	2.5 mm 5.5 mm	9.5 mm	Level VI	1.42 "	139 mm	5.47 "	2.4 in	36 mm	61 mm	International	100 VAC	240 VAC
Volgen + Furuno KTPS90-1506	415.04 g	0.915 lb	15 V	6 A	Desktop (Class I)	ITE (Commercial)	40 °C	90 W	CB CE cUL GS PSE UL	1.5 m	59 in	Positive Center	IEC 320-C6		Cord (Sold Separately)	Barrel Plug	2.5 mm 5.5 mm	9.5 mm	Level VI	1.42 "	139 mm	5.47 "	2.4 in	36 mm	61 mm	International	100 VAC	240 VAC
Volgen + Furuno KTPS90-1207	415.04 g	0.915 lb	12 V	7 A	Desktop (Class II)	ITE (Commercial)	40 °C	90 W	IEC	1.5 m	59 in	Positive Center	IEC 320-C6	62368-1	Cord (Sold Separately)	Barrel Plug	2.5 mm 5.5 mm	9.5 mm	Level VI	1.42 "	139 mm	5.47 "	2.4 in	36 mm	61 mm	International	100 VAC	240 VAC
Volgen + Furuno KTPS90-1560-P1	415.04 g	0.915 lb	15 V	6 A	Desktop (Class I)	ITE (Commercial)	40 °C	90 W	CB CE cUL GS PSE UL	1.5 m	59 in	Positive Center	IEC 320-C6		Cord (Sold Separately)	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	Level VI	1.42 "	139 mm	5.47 "	2.4 in	36 mm	61 mm	International	100 VAC	240 VAC
