PRO-EX Series
Manufacturer: Abracon LLC
Beta
⌘K
RF ANT 2.4GHZ/5.5GHZ WHIP TILT
| Part | Frequency Group | Applications | Gain | Antenna Type | Height (Max) [z] | Height (Max) [z] | Frequency Range [Min] | Frequency Range [Max] | VSWR | Frequency (Center/Band) | Mounting Type | Number of Bands | Termination | Termination | RF Family/Standard | Features | Features | Height (Max) [Max] [z] | Height (Max) [Max] [z] | Height (Max) | Return Loss |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Abracon LLC | SHF UHF | ISM WLAN | 3 dBi | Tilt Whip | 107 mm | 4.213 in | 2.4 GHz 5.15 GHz | 2.48 GHz 5.85 GHz | 2 | 2.4 GHz 5.5 GHz | Connector Mount | 2 | |||||||||

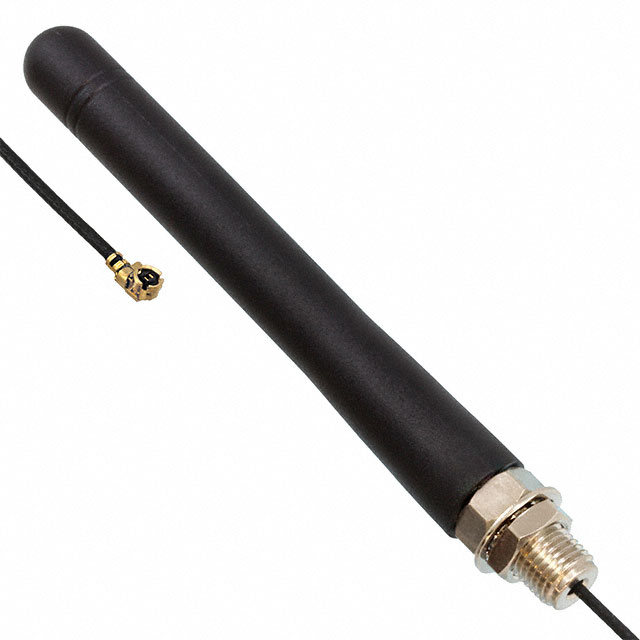

 Abracon LLC | ISM | 3 dBi | Whip Straight | 70 mm | 2.756 in | 2.4 GHz | 2485 MHz | 2 | 2.4 GHz | Panel Mount | 1 | IPEX MHF1 | I-PEX MHF1 U.FL (UMCC) | General ISM | Cable | 100 mm | |||||
 Abracon LLC | 3 dBi | Whip Straight | 2.4 GHz | 2.48 GHz | 3 | 2.4 GHz | Connector Mount | 1 | 1.102 in | 28 mm | |||||||||||
 Abracon LLC | 3 dBi | Tilt Whip | 2.4 GHz | 2.48 GHz | 2 | 2.4 GHz | Connector Mount | 1 | 3.268 in | 83 mm | |||||||||||
 Abracon LLC | GSM UMTS | 57.3 mm | 2.256 in | 1.71 GHz 2.11 GHz 824 MHz | 1.99 GHz 2.17 GHz 960 MHz | 1.85 GHz 2.1 GHz 892 MHz | Connector Mount | 6 | Cellular | -3 dB | |||||||||||
 Abracon LLC | 3 dBi | Tilt Whip | 2.4 GHz | 2.48 GHz | 2 | 2.4 GHz | Connector Mount | 1 | RP-SMA Male | 3.268 in | 83 mm | ||||||||||
 Abracon LLC | SHF UHF | WLAN | 3 dBi | Tilt Whip | 107 mm | 4.213 in | 2.4 GHz 5.15 GHz | 5.85 GHz 2485 MHz | 2 | 2.4 GHz 5.5 GHz | Connector Mount | 2 | RP-SMA Male | WiFi |
