612-83 Series

Manufacturer: Preci-Dip

Catalog

CONN IC DIP SOCKET 8POS GOLD

Part	Termination Post Length	Termination Post Length	Current Rating (Amps)	Material Flammability Rating	Contact Resistance	Mounting Type	Number of Positions or Pins (Grid)	Number of Positions or Pins (Grid) [x]	Number of Positions or Pins (Grid) [y]	Features	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Type	Type	Type	Contact Material - Mating	Contact Finish - Post	Pitch - Post	Pitch - Post	Contact Material - Post [custom]	Termination	Pitch - Mating	Pitch - Mating	Housing Material	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Type [custom]	Type [custom]	Number of Positions or Pins (Grid) [custom]

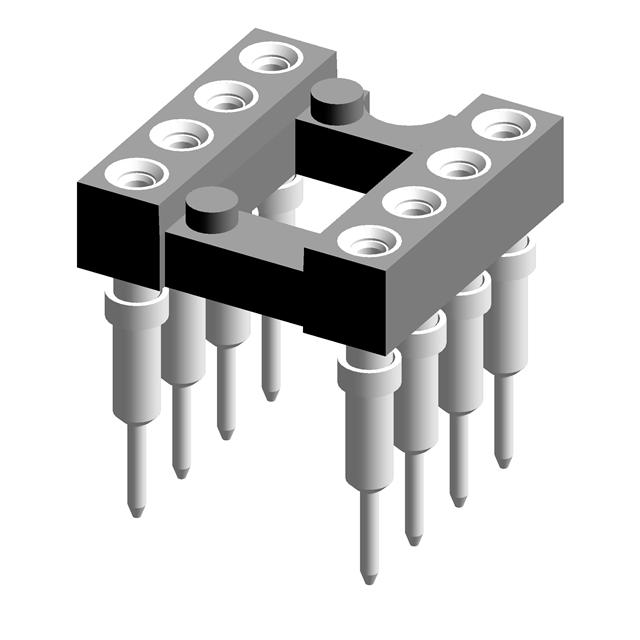

Preci-Dip 612-83-308-41-001101	7.39 mm	0.291 in	1 A	UL94 V-0	10 mOhm	Through Hole	8	2	4	Carrier Open Frame	29.5 µin	0.75 µm	7.62 mm	0.3 in	DIP	Beryllium Copper	Tin	0.1 in	2.54 mm	Brass	Solder	0.1 "	2.54 mm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	-55 C	125 °C

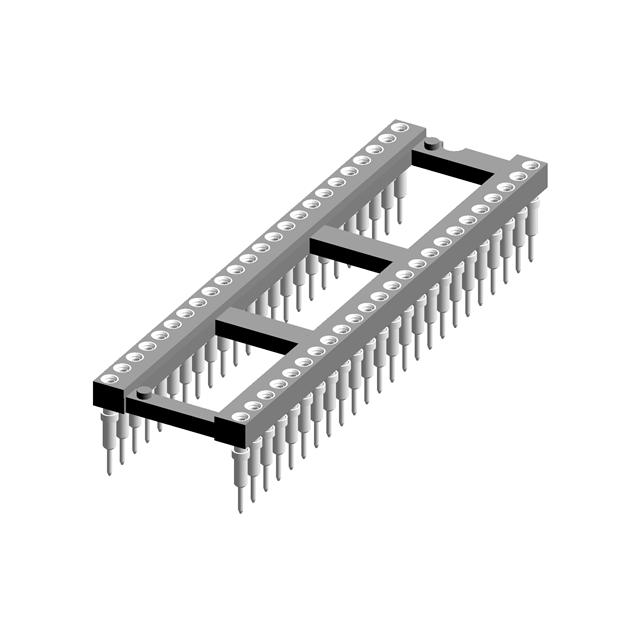

Preci-Dip 612-83-648-41-001101	7.39 mm	0.291 in	1 A	UL94 V-0	10 mOhm	Through Hole		24	2	Carrier Open Frame	29.5 µin	0.75 µm			DIP	Beryllium Copper	Tin	0.1 in	2.54 mm	Brass	Solder	0.1 "	2.54 mm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	-55 C	125 °C	15.24 mm	0.6 in	48

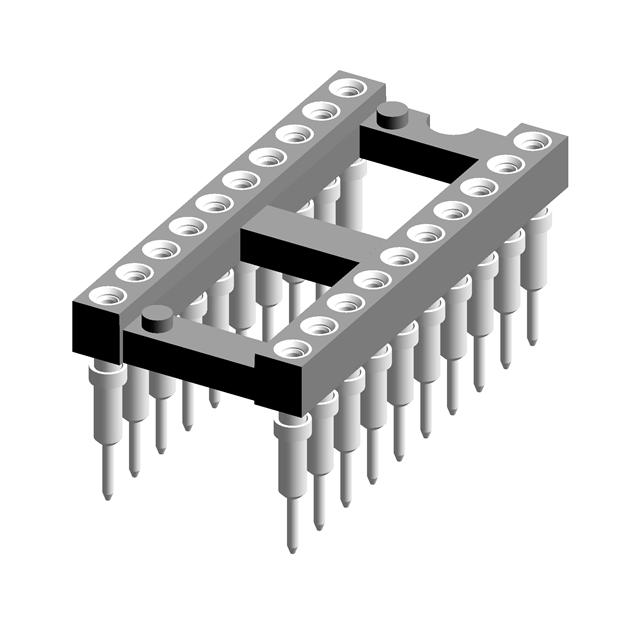

Preci-Dip 612-83-420-41-001101	7.39 mm	0.291 in	1 A	UL94 V-0	10 mOhm	Through Hole	20			Carrier Open Frame	29.5 µin	0.75 µm		0.4 in	DIP	Beryllium Copper	Tin	0.1 in	2.54 mm	Brass	Solder	0.1 "	2.54 mm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	-55 C	125 °C

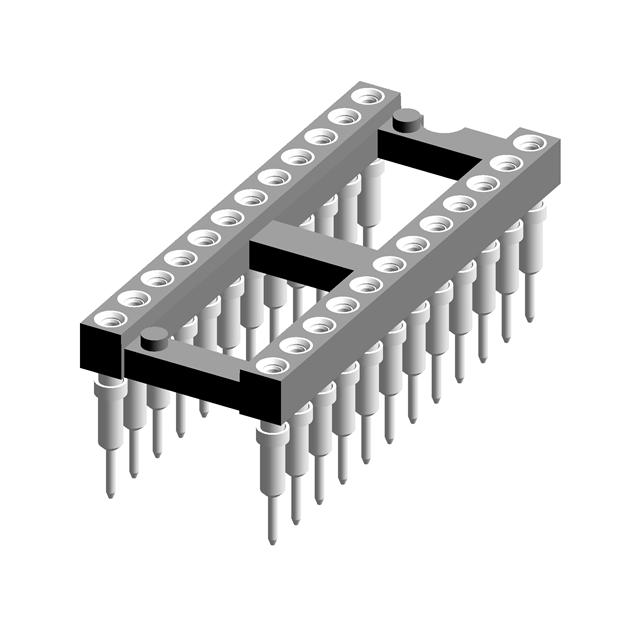

Preci-Dip 612-83-424-41-001101	7.39 mm	0.291 in	1 A	UL94 V-0	10 mOhm	Through Hole	24	12	2	Carrier Open Frame	29.5 µin	0.75 µm		0.4 in	DIP	Beryllium Copper	Tin	0.1 in	2.54 mm	Brass	Solder	0.1 "	2.54 mm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	-55 C	125 °C

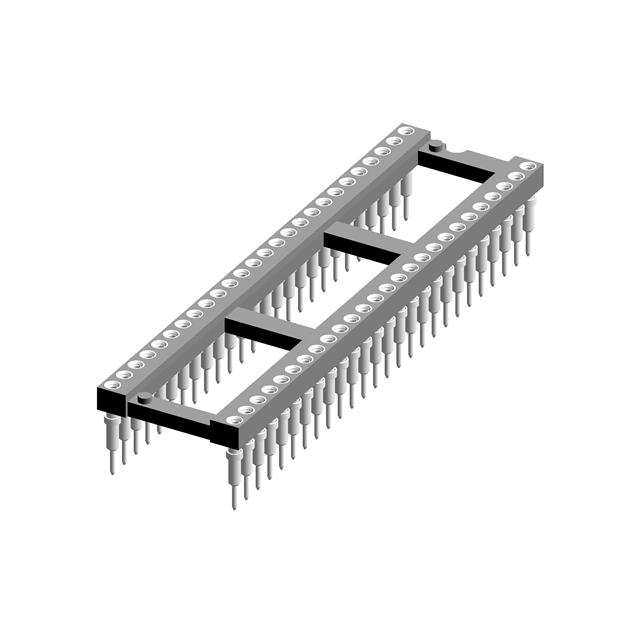

Preci-Dip 612-83-652-41-001101	7.39 mm	0.291 in	1 A	UL94 V-0	10 mOhm	Through Hole				Carrier Open Frame	29.5 µin	0.75 µm			DIP	Beryllium Copper	Tin	0.1 in	2.54 mm	Brass	Solder	0.1 "	2.54 mm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	-55 C	125 °C	15.24 mm	0.6 in
Preci-Dip 612-83-964-41-001101	7.39 mm	0.291 in	1 A	UL94 V-0	10 mOhm	Through Hole	64	2	32	Carrier Open Frame	29.5 µin	0.75 µm	22.86 mm	0.9 in	DIP	Beryllium Copper	Tin	0.1 in	2.54 mm	Brass	Solder	0.1 "	2.54 mm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	-55 C	125 °C

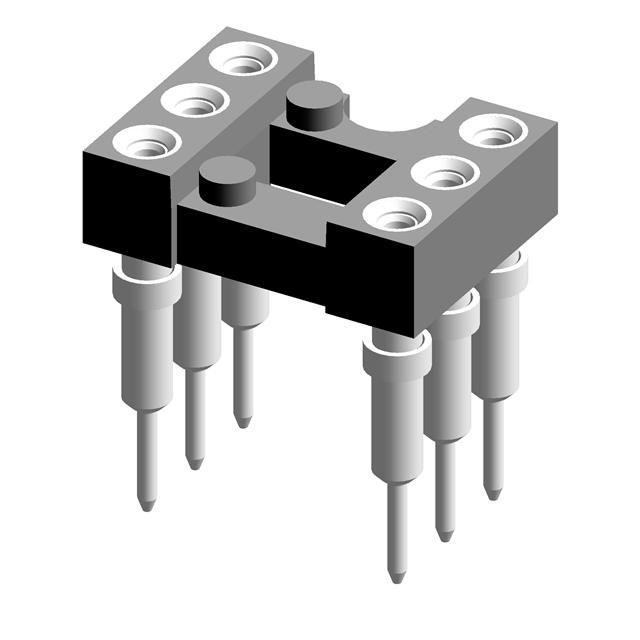

Preci-Dip 612-83-306-41-001101	7.39 mm	0.291 in	1 A	UL94 V-0	10 mOhm	Through Hole	6	2	3 positions or pins	Carrier Open Frame	29.5 µin	0.75 µm	7.62 mm	0.3 in	DIP	Beryllium Copper	Tin	0.1 in	2.54 mm	Brass	Solder	0.1 "	2.54 mm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	-55 C	125 °C

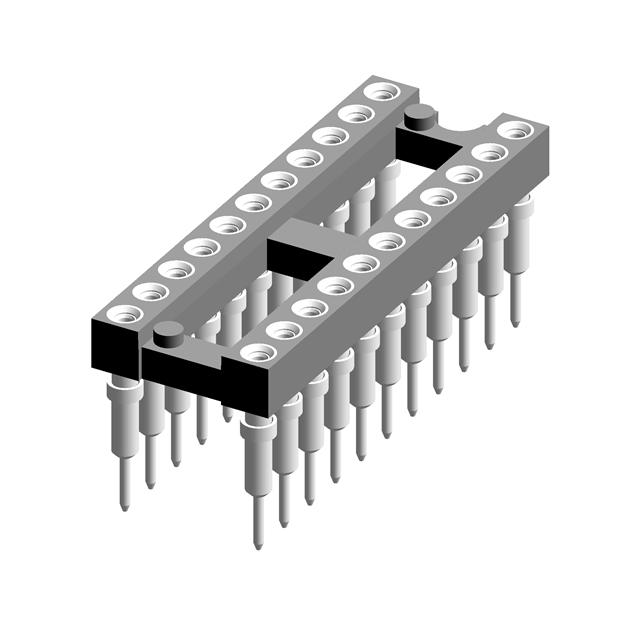

Preci-Dip 612-83-322-41-001101	7.39 mm	0.291 in	1 A	UL94 V-0	10 mOhm	Through Hole	22	2	11	Carrier Open Frame	29.5 µin	0.75 µm	7.62 mm	0.3 in	DIP	Beryllium Copper	Tin	0.1 in	2.54 mm	Brass	Solder	0.1 "	2.54 mm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	-55 C	125 °C

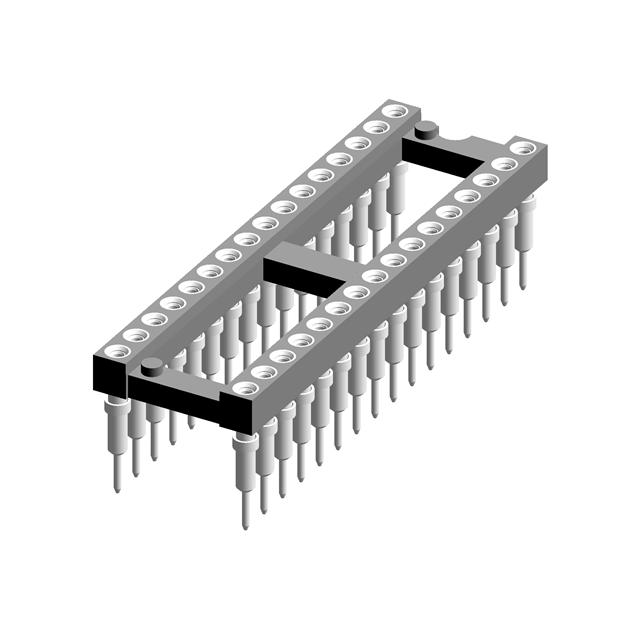

Preci-Dip 612-83-432-41-001101	7.39 mm	0.291 in	1 A	UL94 V-0	10 mOhm	Through Hole	32			Carrier Open Frame	29.5 µin	0.75 µm		0.4 in	DIP	Beryllium Copper	Tin	0.1 in	2.54 mm	Brass	Solder	0.1 "	2.54 mm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	-55 C	125 °C

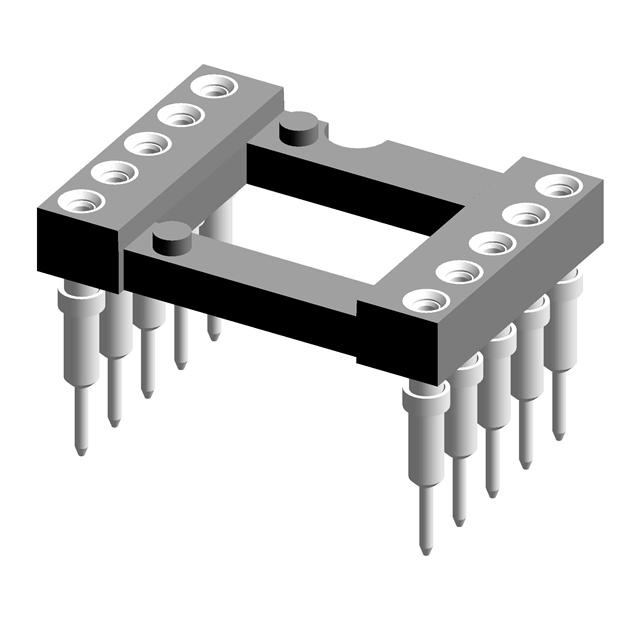

Preci-Dip 612-83-610-41-001101	7.39 mm	0.291 in	1 A	UL94 V-0	10 mOhm	Through Hole	10	2	5	Carrier Open Frame	29.5 µin	0.75 µm			DIP	Beryllium Copper	Tin	0.1 in	2.54 mm	Brass	Solder	0.1 "	2.54 mm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	-55 C	125 °C	15.24 mm	0.6 in
