Positive Lock 312 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
312 SERIES POSTIVE LOCK REC L ROHS COMPLIANT: YES
| Part | Termination | Contact Finish | Mounting Type | Wire Gauge [Max] | Wire Gauge [Min] | Gender | Contact Material | Insulation | Tab Length | Tab Length | Terminal Type | Tab Width [y] | Tab Width [y] | Tab Thickness | Tab Thickness | Insulation Diameter [Max] | Insulation Diameter | Insulation Diameter [Min] | Length - Overall [x] | Length - Overall [x] | Insulation Diameter [Min] | Insulation Diameter [Max] | Stacking Direction | For Use With/Related Products | Terminal Size | Terminal Size | Style | Color | Tool Type | For Use With/Related Products | For Use With/Related Products |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

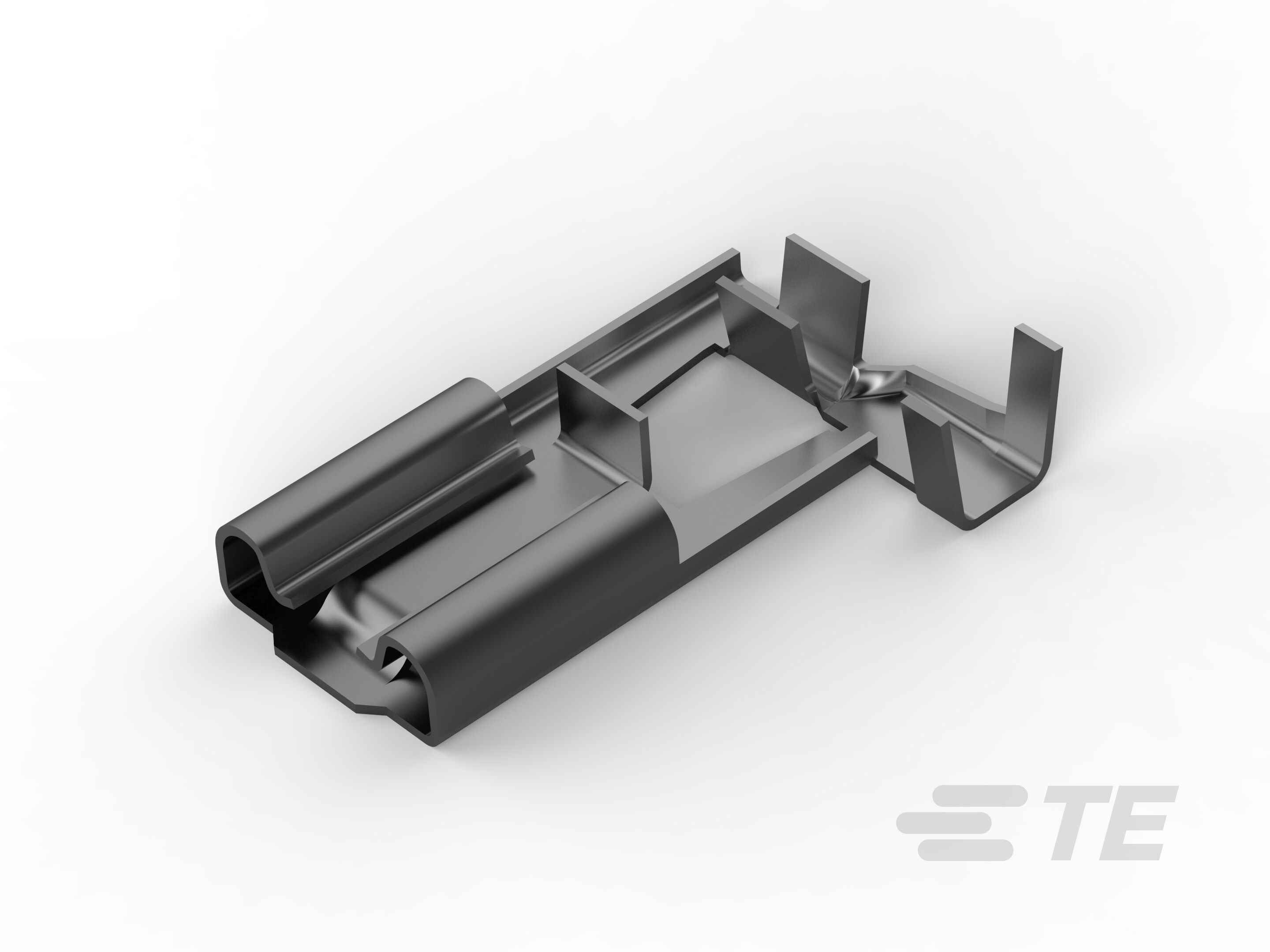

 TE Connectivity AMP Connectors | Crimp | Tin | Free Hanging (In-Line) Right Angle | 20 AWG | 14 AWG | Female | Brass | Non-Insulated | 0.335 in | 8.5 mm | Angled - 90° Flag | 7.92 mm | 0.312 " | 0.81 mm | 0.032 in | ||||||||||||||||

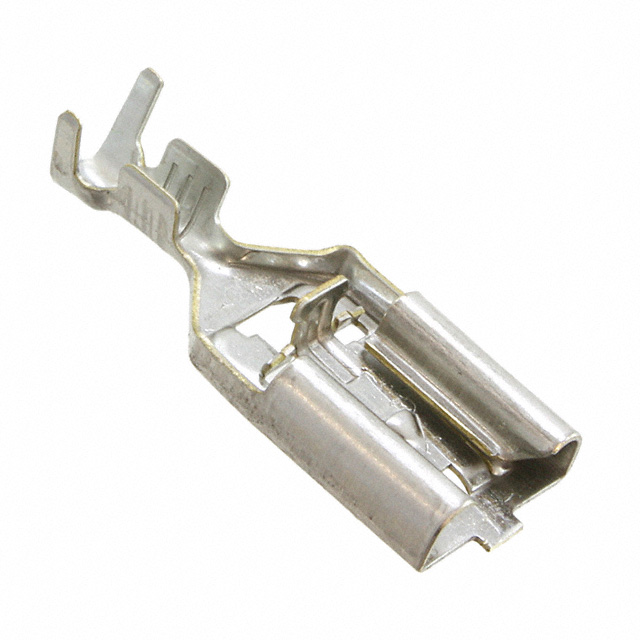

 TE Connectivity AMP Connectors | Crimp | Tin | Free Hanging (In-Line) | 20 AWG | 14 AWG | Female | Brass | Non-Insulated | 0.335 in | 8.5 mm | Standard | 7.92 mm | 0.312 " | 0.79 mm | 0.031 in | 0.134 in | 2.21 mm 3.4 mm | 0.087 " | 22.5 mm | 0.886 in | |||||||||||

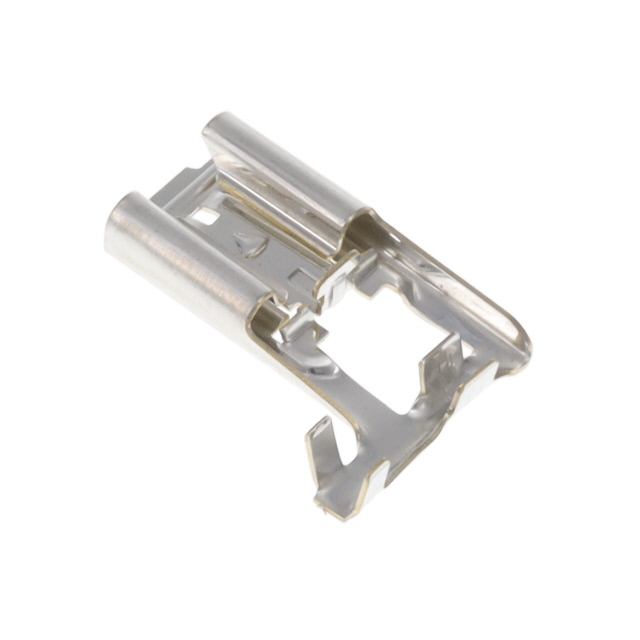

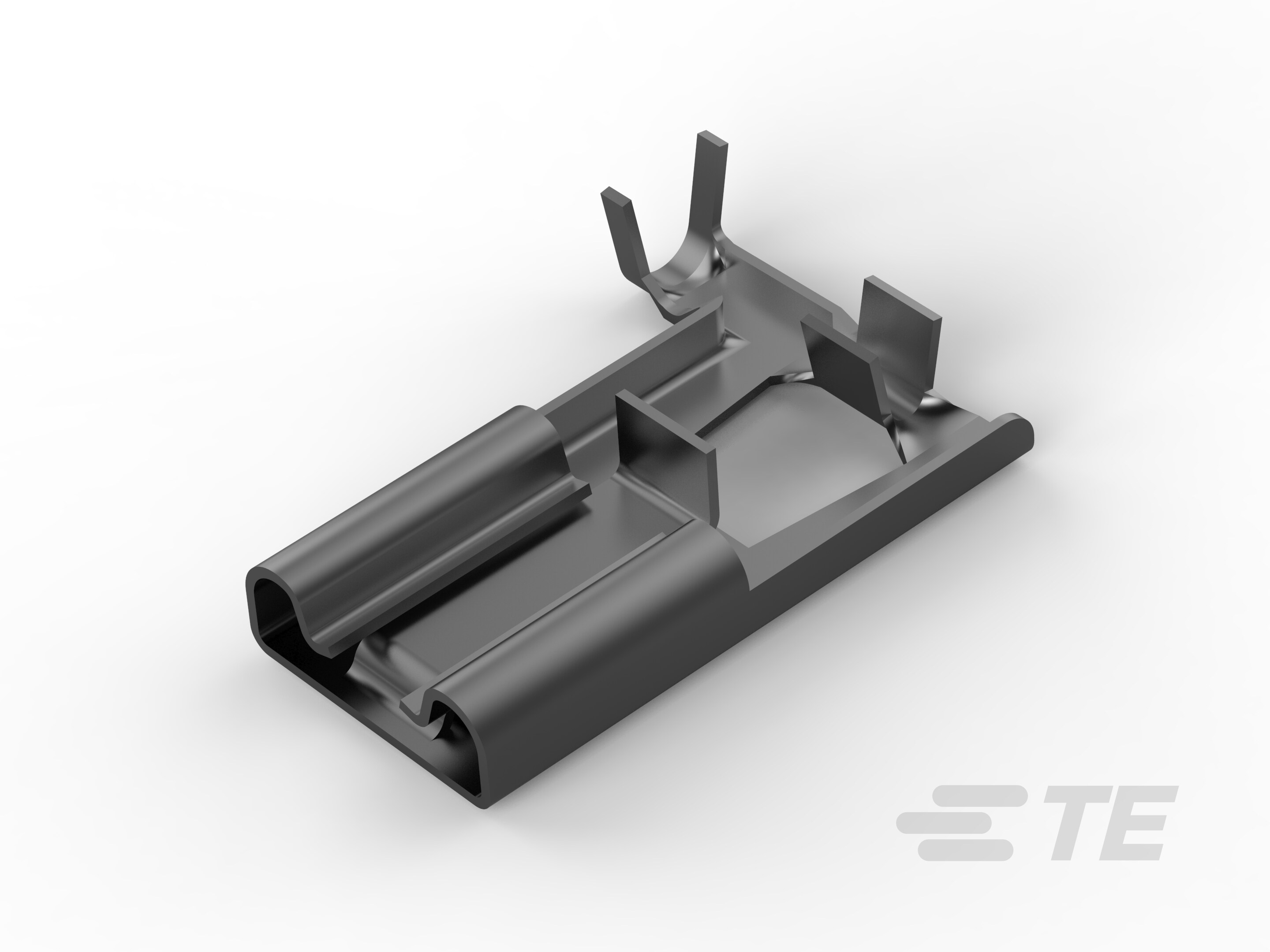

 TE Connectivity AMP Connectors | Crimp | Tin | Free Hanging (In-Line) Right Angle | 20 AWG | 17.5 AWG | Female | Brass | Non-Insulated | 0.335 in | 8.5 mm | Angled - 90° Flag | 7.92 mm | 0.312 " | 0.79 mm | 0.031 in | 0.091 " | 0.063 in | 1.6 mm | 2.3 mm | ||||||||||||

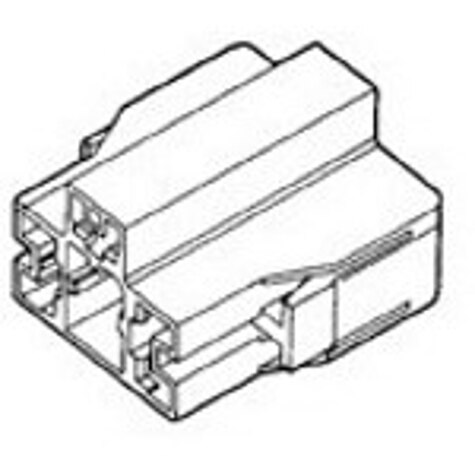

 TE Connectivity AMP Connectors | Free Hanging (In-Line) | Female Receptacle | Quick Connect Disconnect | Multiple | 0.312" (7.92mm) Quick Connects Flag | 0.312 in | 7.92 mm | Housing | Black | ||||||||||||||||||||||
 TE Connectivity AMP Connectors | Contacts | Extraction Tool | |||||||||||||||||||||||||||||

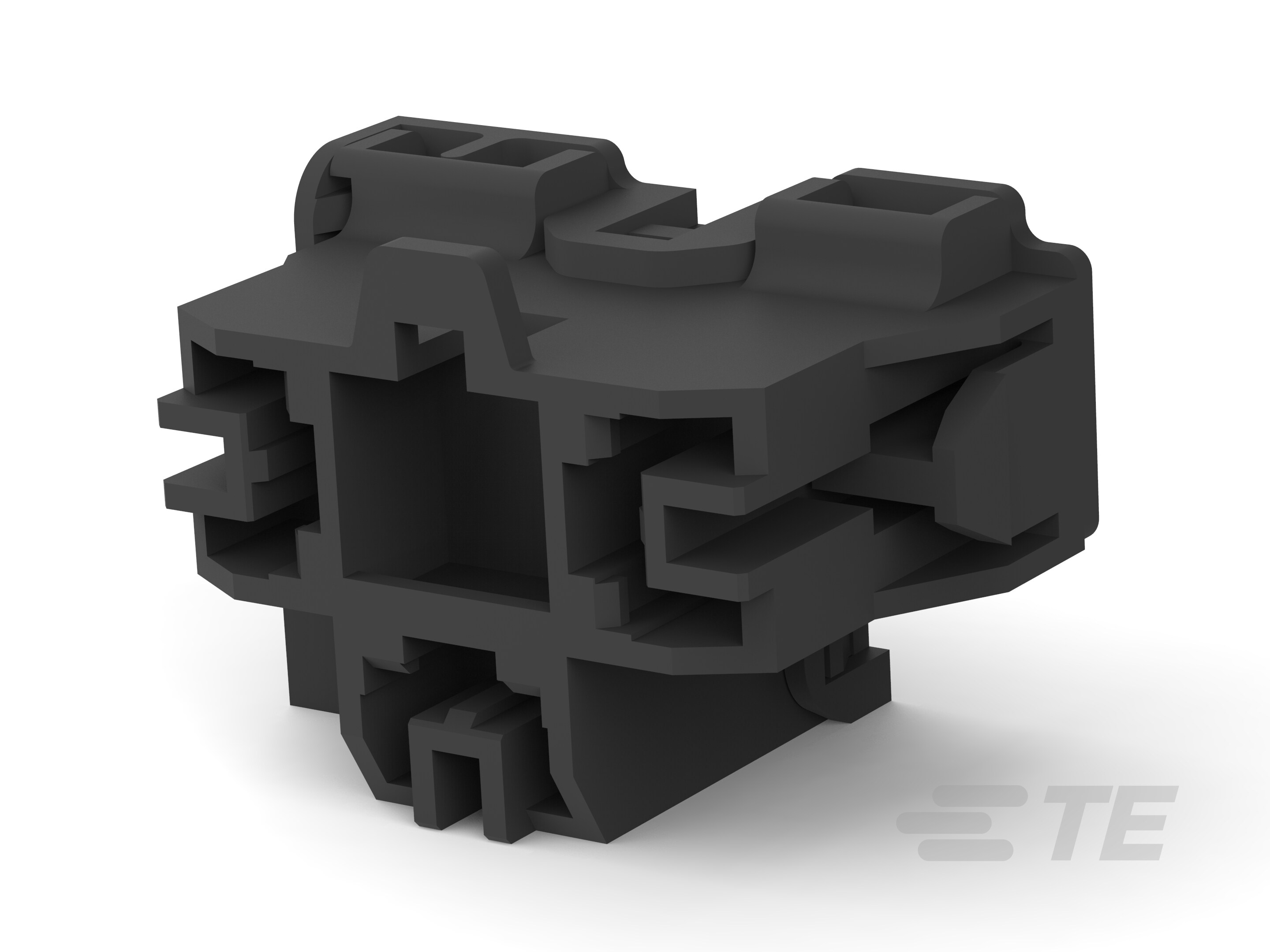

 TE Connectivity AMP Connectors | Free Hanging (In-Line) Right Angle | Female Receptacle | Quick Connect Disconnect | Multiple | 0.312" (7.92mm) Quick Connects Flag | 0.312 in | 7.92 mm | Housing | Black | ||||||||||||||||||||||
 TE Connectivity AMP Connectors | Crimp | Tin | Free Hanging (In-Line) Right Angle | 16 AWG | 14 AWG | Female | Brass | Non-Insulated | 0.335 in | 8.5 mm | Angled - 90° Flag | 7.92 mm | 0.312 " | 0.81 mm | 0.032 in | ||||||||||||||||
 TE Connectivity AMP Connectors | Free Hanging (In-Line) | Female Receptacle | Quick Connect Disconnect | Multiple | Quick Connects | 0.312 in | 7.92 mm | Housing | Black | 7.92 mm | 0.312 in | ||||||||||||||||||||
 TE Connectivity AMP Connectors | Crimp | Tin | Free Hanging (In-Line) Right Angle | 20 AWG | 17.5 AWG | Female | Brass | Non-Insulated | 0.335 in | 8.5 mm | Angled - 90° Flag | 7.92 mm | 0.312 " | 0.79 mm | 0.031 in | 0.091 " | 0.063 in | 1.6 mm | 2.3 mm |
