PFUF.035 Series
Manufacturer: SCHURTER Inc.
Beta
⌘K

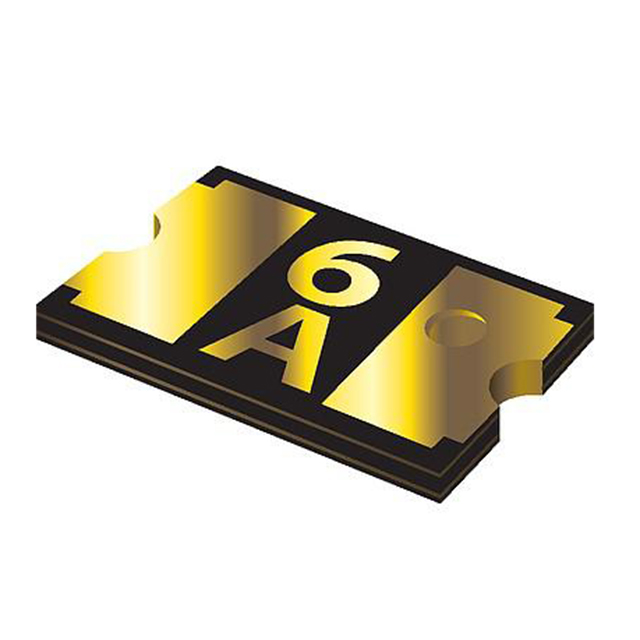

PTC RESET FUSE 6V 350MA 1210
| Part | Approval Agency | Current - Hold (Ih) (Max) [Max] | Resistance - Post Trip (R1) (Max) [Max] | Current - Max [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Thickness (Max) [Max] | Thickness (Max) [Max] | Package / Case | Resistance - Initial (Ri) (Min) [Min] | Current - Trip (It) | Time to Trip | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Type | Voltage - Max [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHURTER Inc. | cURus TUV | 350 mA | 1.3 Ohms | 40 A | 85 °C | -40 C | Surface Mount | 0.7 mm | 0.028 in | 1210 (3225 Metric) Concave | 200 mOhms | 750 mA | 0.2 s | 0.127 in | 2.58 mm | 3.22 mm | 0.102 in | Polymeric | 6 V |
