EFF6989 Series

Catalog

ANTENNA FLEXIBLE 4.1DBI GAIN 824MHZ/894MHZ/960MHZ/1550MHZ/1690MHZ/1880MHZ/1990MHZ/2170MHZ/2500MHZ/2700MHZ/4200MHZ/6000MHZ BAG

Part	RF Family/Standard	Number of Bands	Power - Max [Max]	Mounting Type	Height (Max) [z]	Height (Max) [z]	Gain	Applications	VSWR	Antenna Type	Frequency Group	Frequency (Center/Band)	Frequency Range [Max]	Frequency Range [Min]	Termination	Features

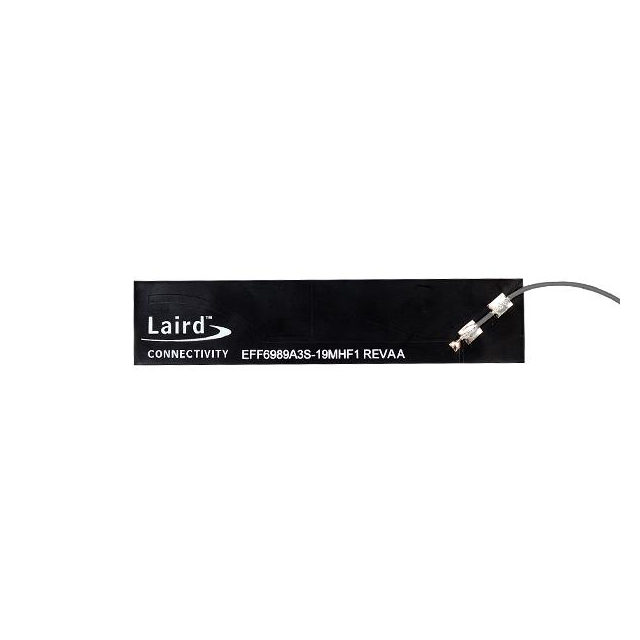

Ezurio LLC EFF6989A3S-19MH4L	Cellular	12	5 W	Adhesive	0.008 in	0.2 mm	0.9 dBi 1.4 dBi 2.7 dBi 3.3 dBi 3.5 dBi 3.7 dBi 3.9 dBi 4 dBi 4.1 dBi 4.2 dBi 4.5 dBic	4G 5G LTE	2 2.2 2.5	PCB Trace	Wide Band	1.45 GHz 1.62 GHz 1.785 GHz 1.92 GHz 2.04 GHz 2.4 GHz 2.6 GHz 3.75 GHz 5.45 GHz 761 MHz 859 MHz 920 MHz	1.69 GHz 1.88 GHz 1.99 GHz 2.17 GHz 2.5 GHz 2.7 GHz 4.2 GHz 6 GHz 824 MHz 894 MHz 960 MHz 1550 MHz	1.35 GHz 1.69 GHz 1.85 GHz 1.91 GHz 2.3 GHz 2.5 GHz 3.3 GHz 4.9 GHz 698 MHz 824 MHz 880 MHz 1550 MHz	I-PEX MHF4L	Cable - 190mm
Ezurio LLC EFF6989A3S-19MH4L	Cellular	12	5 W	Adhesive	0.008 in	0.2 mm	0.9 dBi 1.4 dBi 2.7 dBi 3.3 dBi 3.5 dBi 3.7 dBi 3.9 dBi 4 dBi 4.1 dBi 4.2 dBi 4.5 dBic	4G 5G LTE	2 2.2 2.5	PCB Trace	Wide Band	1.45 GHz 1.62 GHz 1.785 GHz 1.92 GHz 2.04 GHz 2.4 GHz 2.6 GHz 3.75 GHz 5.45 GHz 761 MHz 859 MHz 920 MHz	1.69 GHz 1.88 GHz 1.99 GHz 2.17 GHz 2.5 GHz 2.7 GHz 4.2 GHz 6 GHz 824 MHz 894 MHz 960 MHz 1550 MHz	1.35 GHz 1.69 GHz 1.85 GHz 1.91 GHz 2.3 GHz 2.5 GHz 3.3 GHz 4.9 GHz 698 MHz 824 MHz 880 MHz 1550 MHz	IPEX MHF4L	Cable - 190mm
