746-028 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SGL FMALE 28POS 0.125

Part	Material - Insulation	Termination Rows	Contact Material	Termination	Mounting Type	Number of Positions	Contact Type	Number of Rows	Gender	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Color	Number of Positions/Bay/Row	Operating Temperature [Min]	Operating Temperature [Max]	Pitch	Pitch	Card Thickness [Max]	Card Thickness [Min]	Card Type	Read Out	Termination Rows [custom]	Number of Rows [custom]
EDAC Inc. 746-028-545-501	Polyester Thermoplastic	1	Copper Alloy	Press-Fit Wire Wrap	Through Hole	28	Cantilever	1	Female	Gold	30 Áin	0.76 Ám	Black	28	-40 C	105 ░C	3.18 mm	0.125 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	Single
EDAC Inc. 746-028-520-506	Polyester Thermoplastic	1	Copper Alloy	Press-Fit	Through Hole	28	Cantilever	1	Female	Gold	30 Áin	0.76 Ám	Black	28	-40 C	105 ░C	3.18 mm	0.125 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	Single
EDAC Inc. 746-028-527-501	Polyester Thermoplastic	1	Copper Alloy	Press-Fit	Through Hole	28	Cantilever	1	Female	Gold	30 Áin	0.76 Ám	Black	28	-40 C	105 ░C	3.18 mm	0.125 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	Single

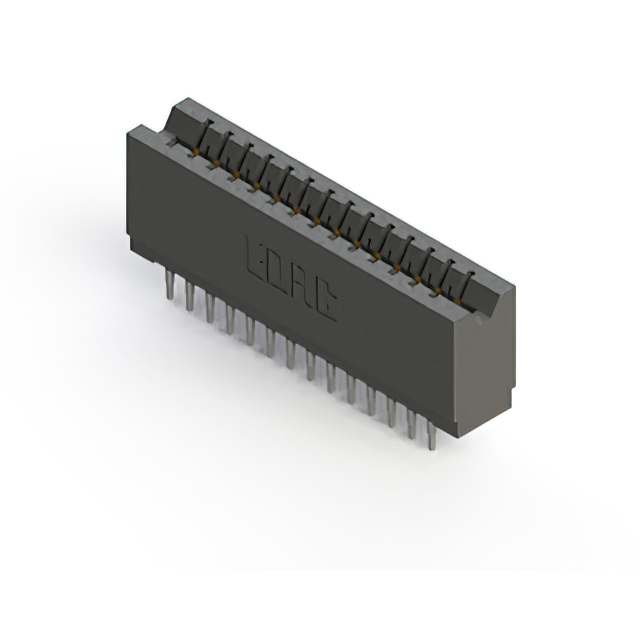

EDAC Inc. 746-028-545-206	Polyester Thermoplastic		Copper Alloy	Press-Fit Wire Wrap	Through Hole	28	Cantilever		Female	Gold	30 Áin	0.76 Ám	Black	14	-40 C	105 ░C	3.18 mm	0.125 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Dual	2	2

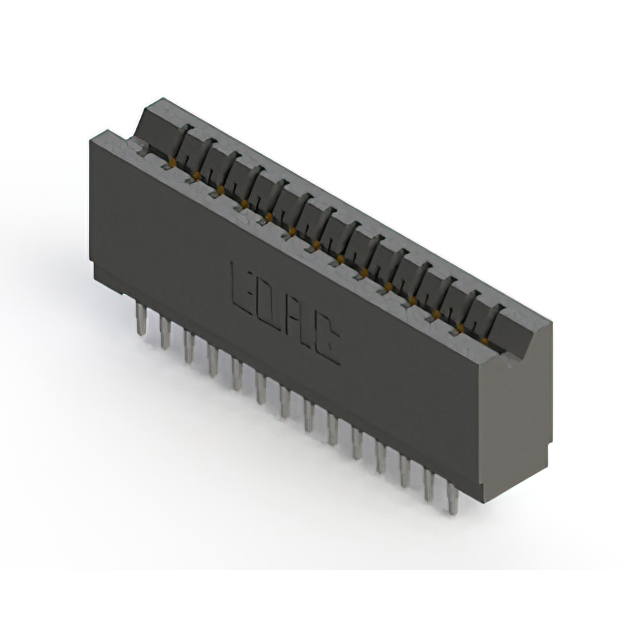

EDAC Inc. 746-028-525-606	Polyester Thermoplastic		Copper Alloy	Press-Fit	Through Hole	28	Cantilever		Female	Gold	30 Áin	0.76 Ám	Black	14	-40 C	105 ░C	3.18 mm	0.125 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Dual	2	2
EDAC Inc. 746-028-540-206	Polyester Thermoplastic		Copper Alloy	Press-Fit Wire Wrap	Through Hole	28	Cantilever		Female	Gold	30 Áin	0.76 Ám	Black	14	-40 C	105 ░C	3.18 mm	0.125 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Dual	2	2
EDAC Inc. 746-028-520-106	Polyester Thermoplastic	1	Copper Alloy	Press-Fit	Through Hole	28	Cantilever	1	Female	Gold	30 Áin	0.76 Ám	Black	28	-40 C	105 ░C	3.18 mm	0.125 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	Single

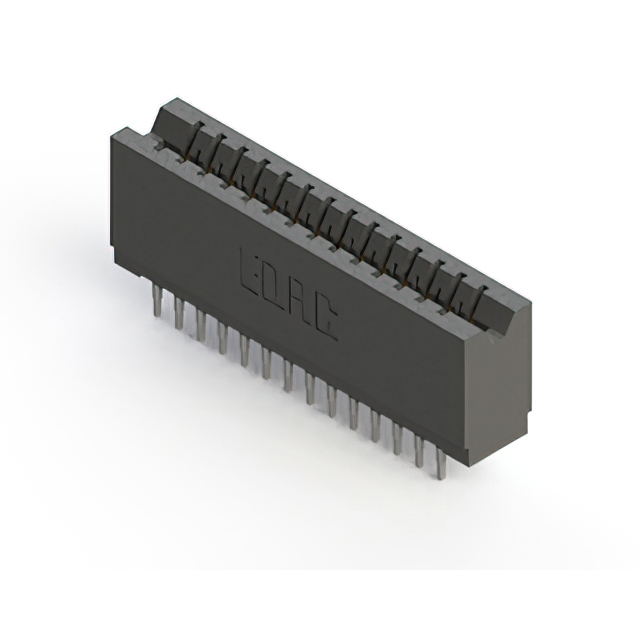

EDAC Inc. 746-028-527-606	Polyester Thermoplastic		Copper Alloy	Press-Fit	Through Hole	28	Cantilever		Female	Gold	30 Áin	0.76 Ám	Black	14	-40 C	105 ░C	3.18 mm	0.125 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Dual	2	2

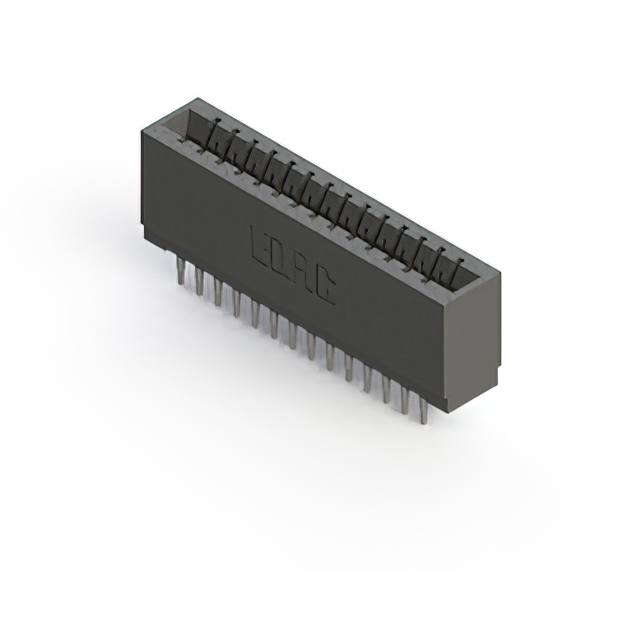

EDAC Inc. 746-028-541-601	Polyester Thermoplastic		Copper Alloy	Press-Fit Wire Wrap	Through Hole	28	Cantilever		Female	Gold	30 Áin	0.76 Ám	Black	14	-40 C	105 ░C	3.18 mm	0.125 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Dual	2	2
EDAC Inc. 746-028-545-606	Polyester Thermoplastic		Copper Alloy	Press-Fit Wire Wrap	Through Hole	28	Cantilever		Female	Gold	30 Áin	0.76 Ám	Black	14	-40 C	105 ░C	3.18 mm	0.125 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Dual	2	2
