470091YY Series
Manufacturer: ALPHA WIRE
Beta
⌘K

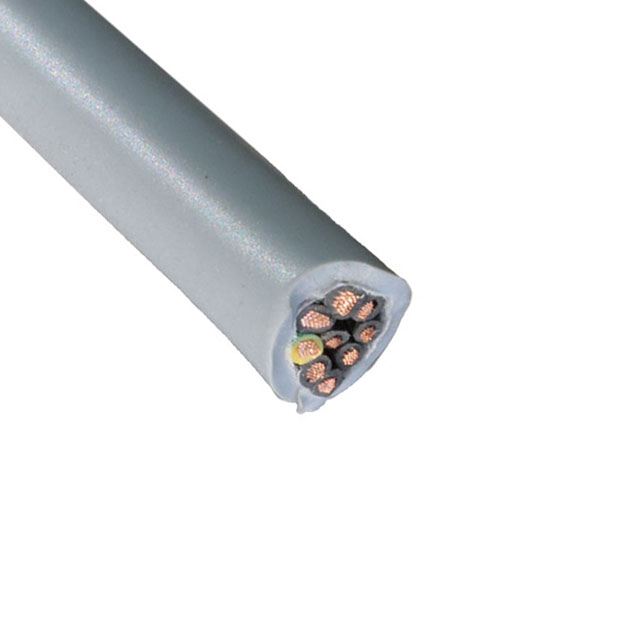

CBLE 9CND 17AWG GRY METER
| Part | Usage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Material | Conductor Strand [custom] | Conductor Strand [custom] | Voltage | Jacket (Insulation) Material | Length [x] | Length [x] | Length | Length | Length | Spool Size | Spool Size | Cable Type | Number of Conductors | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Features | Conductor Insulation | Operating Temperature [Max] | Operating Temperature [Min] | Wire Gauge | Jacket Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Industrial | 0.396 " | 10.06 mm | Copper Bare | 0.0079 " | 30 | 300 VDC | Poly-Vinyl Chloride (PVC) | 30 m 300 m | 98.43 ft 984.3 ft | 1 m 20 m | 3.28 ft 65.62 ft | Enter Number of Meters in Order Quantity | 984.3 ft | 300 m | Multi-Conductor | 9 | 0.0394 in | 1.001 mm | Chemical Resistant Oil Resistant UV Resistant | Poly-Vinyl Chloride (PVC) | 80 °C | -40 C | 17 AWG | Gray |
ALPHA WIRE | Industrial | 0.396 " | 10.06 mm | Copper Bare | 0.0079 " | 30 | 300 VDC | Poly-Vinyl Chloride (PVC) | 100 m | 328.1 ft | Multi-Conductor | 9 | 0.0394 in | 1.001 mm | Chemical Resistant Oil Resistant UV Resistant | Poly-Vinyl Chloride (PVC) | 80 °C | -40 C | 17 AWG | Gray |
