6N137M Series

High Speed 10MBit/s Logic Gate Optocouplers

Catalog

High Speed 10MBit/s Logic Gate Optocouplers

Part	Inputs - Side 1/Side 2 [custom]	Input Type	Operating Temperature [Max]	Operating Temperature [Min]	Propagation Delay tpLH / tpHL (Max) [custom]	Propagation Delay tpLH / tpHL (Max) [custom]	Voltage - Forward (Vf) (Typ)	Output Type	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Current - DC Forward (If) (Max) [Max]	Mounting Type	Current - Output / Channel	Data Rate	Voltage - Supply [Min]	Voltage - Supply [Max]	Common Mode Transient Immunity (Min)	Number of Channels	Supplier Device Package	Voltage - Isolation	Package / Case	Package / Case	Package / Case

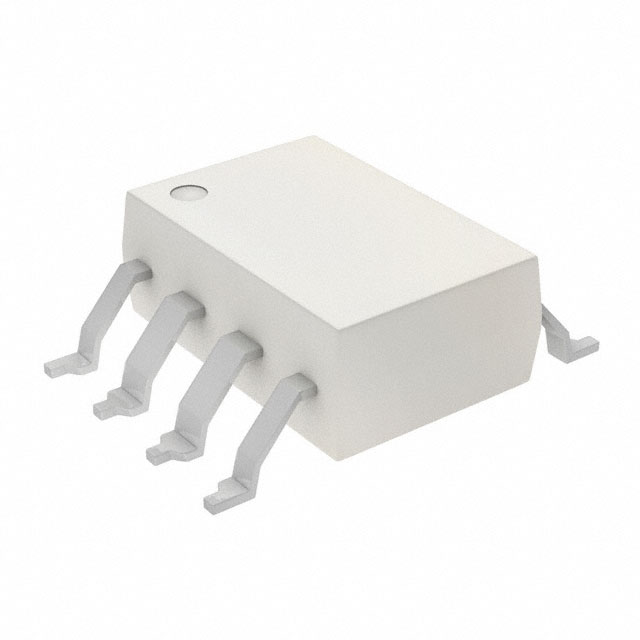

ON Semiconductor 6N137SM	1	DC	85 °C	-40 °C	75 ns	75 ns	1.45 V	Open Collector	30 ns	10 ns	50 mA	Surface Mount	50 mA	10 Mbps	4.5 V	5.5 V	10 kV/µs	1	8-SMD
ON Semiconductor 6N137SDV	1	DC	85 °C	-40 °C	75 ns	75 ns	1.4 V	Open Collector	50 ns	12 ns	50 mA	Surface Mount	50 mA	10 Mbps	4.5 V	5.5 V	10 kV/µs	1	8-SMD	2500 Vrms
ON Semiconductor 6N137SDVM	1	DC	100 °C	-40 °C	75 ns	75 ns	1.45 V	Open Collector	30 ns	10 ns	50 mA	Surface Mount	50 mA	10 Mbps	4.5 V	5.5 V	10 kV/µs	1	8-SMD
ON Semiconductor 6N137VM	1	DC	100 °C	-40 °C	75 ns	75 ns	1.45 V	Open Collector	30 ns	10 ns	50 mA	Through Hole	50 mA	10 Mbps	4.5 V	5.5 V	10 kV/µs	1	8-DIP		0.3 in	8-DIP	7.62 mm
ON Semiconductor 6N137SDM	1	DC	100 °C	-40 °C	75 ns	75 ns	1.45 V	Open Collector	30 ns	10 ns	50 mA	Surface Mount	50 mA	10 Mbps	4.5 V	5.5 V	10 kV/µs	1	8-SMD
ON Semiconductor 6N137TSR2VM	1	DC	100 °C	-40 °C	75 ns	75 ns	1.45 V	Open Collector	30 ns	10 ns	50 mA	Surface Mount	50 mA	10 Mbps	4.5 V	5.5 V	10 kV/µs	1	8-SMD

Catalog

High Speed 10MBit/s Logic Gate Optocouplers

Key Features

• Very high speed – 10 MBit/s

• Superior CMR – 10 kV/µs

• Fan-out of 8 over -40°C to +85°C

• Logic gate output

• Strobable output

• Wired OR-open collector

• U.L. recognized (File # E90700, Vol. 2)

Description

The 6N137M, HCPL2601M, HCPL2611M single-channel and HCPL2630M, HCPL2631M dual-channel optocouplers consist of a 850 nm AlGaAS LED, optically coupled to a very high speed integrated photo-detector logic gate with a strobable output. This output features an open collector, permitting wired OR outputs. The coupled parameters are guaranteed over the temperature range of -40°C to +85°C. A maximum input signal of 5mA providew a minimum output sink current of 13mA (fan out of 8).An internal noise shield provides superior common-mode rejection of typically 10kV/µs. The HCPL2601M and HCPL2631M has a minimum CMR of 5kV/µs. The HCPL2611M has a minimum CMR of 10kV/µs.
