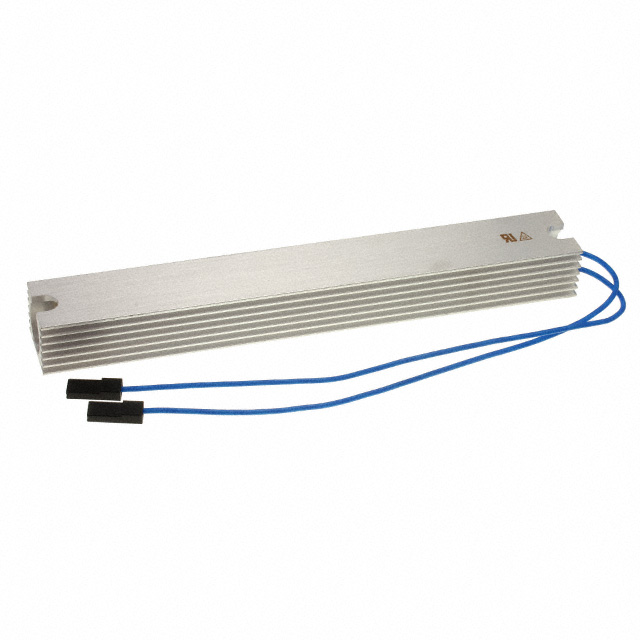

ARG400 Series

Manufacturer: Ohmite

Catalog

RES CHAS MNT 50 OHM 5% 500W

Part	Power (Watts)	Tolerance	Mounting Feature	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Coating, Housing Type	Package / Case	Composition	Lead Style	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Resistance	Temperature Coefficient	Operating Temperature [Min]	Operating Temperature [Max]
Ohmite ARG400C 50R J	500 W	5 %	Flanges	1.102 in	28 mm	Aluminum	Rectangular Wire Leads	Wirewound	Wire Leads	260 mm	10.236 in	36.5 mm	1.437 in	50 Ohms	150 ppm/°C	0 °C	250 °C
Ohmite ARG400C 50R J	500 W	5 %	Screw Holes	1.102 in	28 mm	Aluminum	Rectangular Wire Leads	Wirewound	Wire Leads	260 mm	10.236 in	36.5 mm	1.437 in	50 Ohms	150 ppm/°C	0 °C	250 °C
