TPS61193-Q1 Series

Low-EMI, high-performance 3-channel LED driver for Automotive lighting

Catalog

Low-EMI, high-performance 3-channel LED driver for Automotive lighting

Part	Applications	Supplier Device Package	Dimming	Mounting Type	Frequency [Max]	Frequency [Min]	Topology	Voltage - Supply (Max) [Max]	Number of Outputs	Voltage - Output	Voltage - Supply (Min) [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output / Channel	Type	Package / Case	Package / Case [custom]	Package / Case	Utilized IC / Part	Supplied Contents	Voltage - Input [Min]	Voltage - Input [Max]	Outputs and Type	Outputs and Type	Grade	Qualification
Texas Instruments TPS61193PWPR	Backlight	20-HTSSOP	PWM	Surface Mount	2.2 MHz	300 kHz	SEPIC Step-Up (Boost)	45 V	3	45 V	4.5 V	-40 °C	125 °C	100 mA	DC DC Regulator	20-PowerTSSOP	4.4 mm	0.173 in

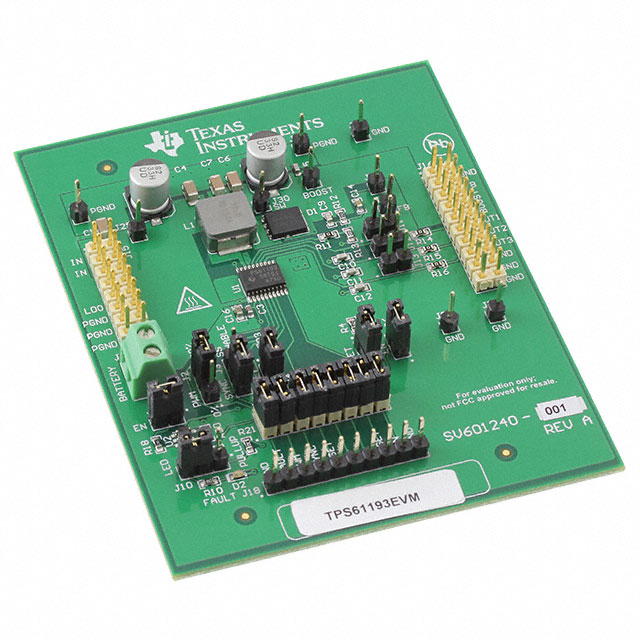

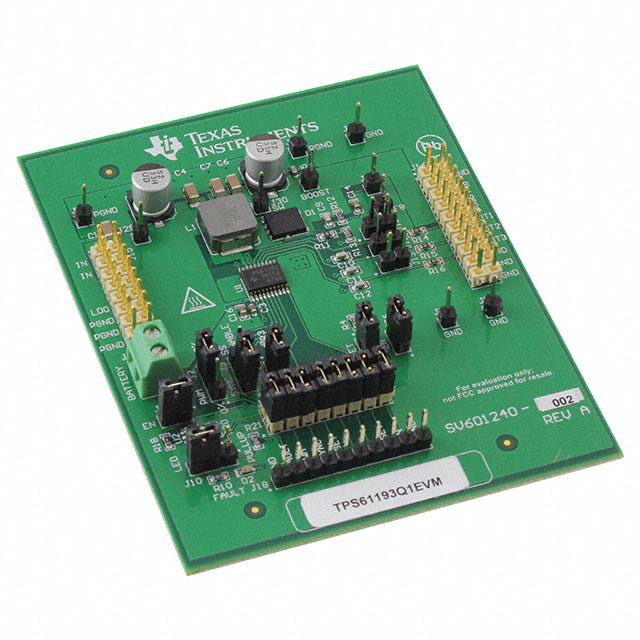

Texas Instruments TPS61193EVM										45 V				100 mA					TPS61193	Board(s)	4.5 V	40 V	Non-Isolated	3
Texas Instruments TPS61193PWPRQ1	Backlight	20-HTSSOP	PWM	Surface Mount	2.2 MHz	300 kHz	SEPIC Step-Up (Boost)	45 V	3	45 V	4.5 V	-40 °C	125 °C	100 mA	DC DC Regulator	20-PowerTSSOP	4.4 mm	0.173 in							Automotive	AEC-Q100

Catalog

Low-EMI, high-performance 3-channel LED driver for Automotive lighting

Key Features

• Qualified for Automotive ApplicationsAEC-Q100 Qualified With the Following Results:Device Temperature Grade 1: –40°C to +125°C Ambient Operating TemperatureInput Voltage Operating Range 4.5 V to 40 VThree High-Precision Current SinksCurrent Matching 1% (Typical)LED String Current up to 100 mA per ChannelOutputs can be Combined Externally for Higher Current CapabilityHigh Dimming Ratio of 10 000:1 at 100 HzIntegrated Boost/SEPIC for LED String PowerOutput Voltage up to 45 VSwitching Frequency 300 kHz to 2.2 MHzSwitching Synchronization InputSpread Spectrum for Lower EMIExtensive Fault Detection FeaturesFault OutputInput Voltage OVP, UVLO, and OCPOpen and Shorted LED Fault DetectionThermal ShutdownMinimum Number of External ComponentsQualified for Automotive ApplicationsAEC-Q100 Qualified With the Following Results:Device Temperature Grade 1: –40°C to +125°C Ambient Operating TemperatureInput Voltage Operating Range 4.5 V to 40 VThree High-Precision Current SinksCurrent Matching 1% (Typical)LED String Current up to 100 mA per ChannelOutputs can be Combined Externally for Higher Current CapabilityHigh Dimming Ratio of 10 000:1 at 100 HzIntegrated Boost/SEPIC for LED String PowerOutput Voltage up to 45 VSwitching Frequency 300 kHz to 2.2 MHzSwitching Synchronization InputSpread Spectrum for Lower EMIExtensive Fault Detection FeaturesFault OutputInput Voltage OVP, UVLO, and OCPOpen and Shorted LED Fault DetectionThermal ShutdownMinimum Number of External Components

Description

The TPS61193-Q1 is an automotive high-efficiency, low-EMI, easy-to-use LED driver with an integrated DC-DC converter. The DC-DC converter supports both boost and SEPIC mode operation. The device has three high-precision current sinks that can be combined for higher current capability. The DC-DC converter has adaptive output voltage control based on the LED current sink headroom voltages. This feature minimizes the power consumption by adjusting the voltage to the lowest sufficient level in all conditions. For EMI reduction DC-DC supports spread spectrum for switching frequency and an external synchronization with dedicated pin. A wide-rage adjustable frequency allows the TPS61193-Q1 to avoid disturbance for AM radio bands. The input voltage range for the TPS61193-Q1 is from 4.5 V to 40 V to support automotive stop/start and load dump condition. The TPS61193-Q1 integrates extensive fault detection features. The TPS61193-Q1 is an automotive high-efficiency, low-EMI, easy-to-use LED driver with an integrated DC-DC converter. The DC-DC converter supports both boost and SEPIC mode operation. The device has three high-precision current sinks that can be combined for higher current capability. The DC-DC converter has adaptive output voltage control based on the LED current sink headroom voltages. This feature minimizes the power consumption by adjusting the voltage to the lowest sufficient level in all conditions. For EMI reduction DC-DC supports spread spectrum for switching frequency and an external synchronization with dedicated pin. A wide-rage adjustable frequency allows the TPS61193-Q1 to avoid disturbance for AM radio bands. The input voltage range for the TPS61193-Q1 is from 4.5 V to 40 V to support automotive stop/start and load dump condition. The TPS61193-Q1 integrates extensive fault detection features.
